BMS-20AN, NARROW BAND (HELI) HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS+Servo Arm (22.6kg / 313.9oz .035/sec 8.4V)

Ask a question about this product

Printable version

Options

Our Price:

$89.99

Quantity (12)

Details


Availability	12 in stock
Weight	0.51 lbs
SKU	BBR-BMS-20AN
Manufacturer	Blue Bird

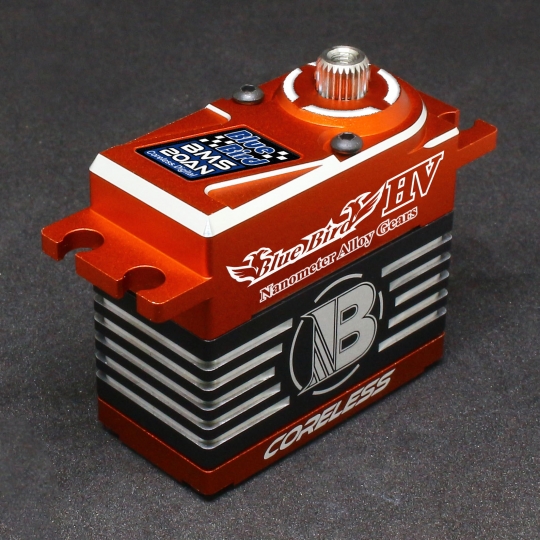

BMS-20AN, NARROW BAND (HELI) HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS+Servo Arm (22.6kg / 313.9oz .035/sec 8.4V)

Narrow Band 760us Only for Helicopter tail [ Rudder ]

Application / Suitable

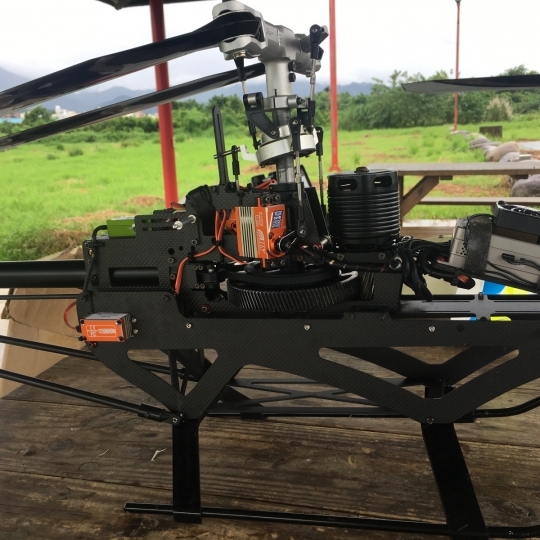

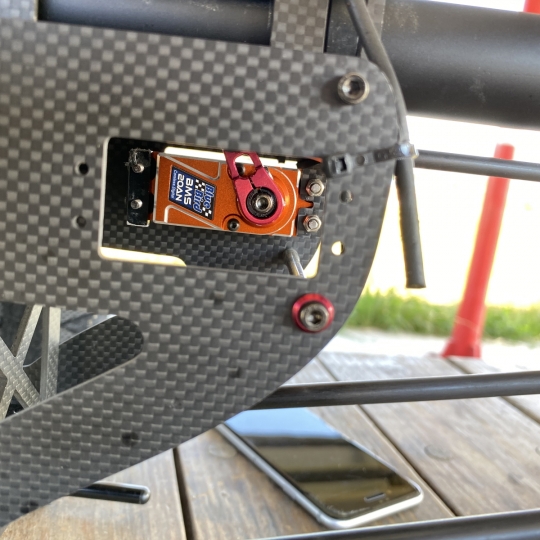

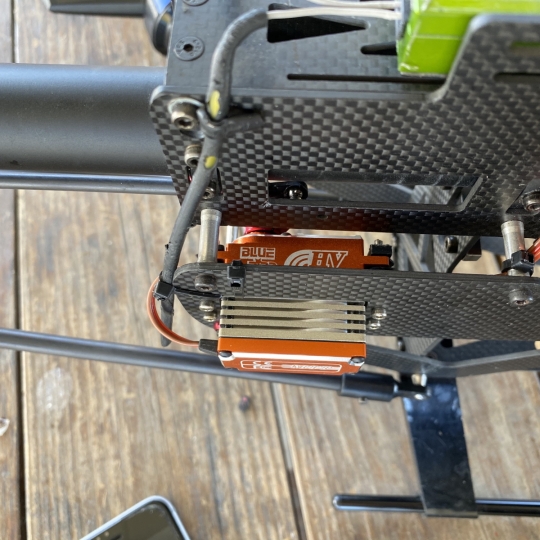

Only for Helicopter Tail ( Rudder )

Specifications

Torque At 6.0V	16.3 kg-cm / 226.4 oz-in
Torque At 7.4V	19.8 kg-cm / 275.0 oz-in
Torque At 8.4V	22.6 kg-cm / 313.9 oz-in
Speed At 6.0V	0.058 sec / 60°
Speed At 7.4V	0.046 sec / 60°
Speed At 8.4V	0.035 sec / 60°

Protection Mechanism

Soft Start Protection	Soft start back to neutral position.
Over Voltage Protection	Over 9.0V drive the protection mode, and 8.4V return to normal mode.
Low Voltage Protection	Lower than 4.0V drive the protection mode, and 4.5V return to normal mode.
Locked Rotor Protection	Stall in 5 sec, output torque goes down.
Temperature Protection	Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode.
Lose Control Protection	When losing the transmitter signal, that servo will immediately be back to the neutral position and locked.

Power Supply

Operating Voltage Range

4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)

Control Specification

Control System	Digital Controller / AD 12-Bits Resolution ( 4096 Steps ) Frequency Range：50 ~ 560Hz / Neutral Pulse Width : 760us Narrow Band
Dead Band Width	0.001ms ( Default：1us)

Mechanical Specifications

Ball Bearing	Dual, Stronger Ball Bearings.
Gear	All Metal w/ Nanometer Alloy Gears
Motor	High-Premium Coreless Motor

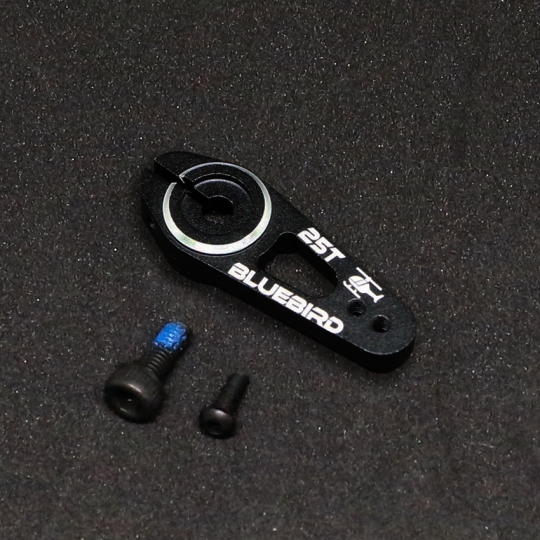

Horn / Gear Spline	25 Teeth ( Same as F-Type )

Physical Specifications

Dimension (mm)	40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram)	78.5 ± 1 grams / 2.77 oz
Product Picture / Dimension Sketch
