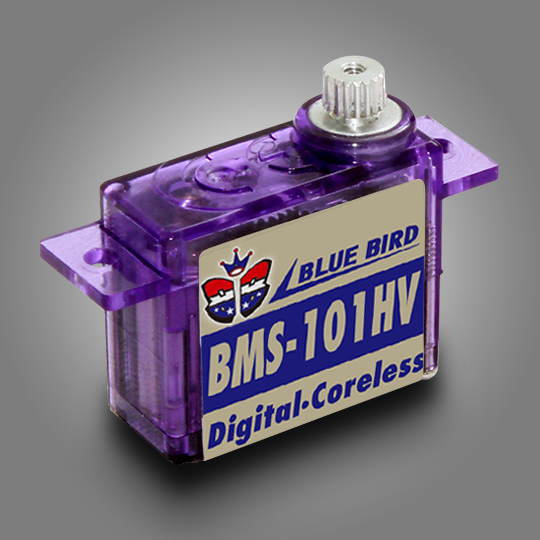

BMS-101HV MICRO-DIGITAL, ULTRA LIGHT, HIGH SPEED, CORELESS SERVO (1.1kg/15.3oz 0.06 sec @7.4v) 3D EP , DLG / HLG / F3K / F3P Aircraft
BMS-101HV MICRO-DIGITAL, HIGH SPEED, CORELESS SERVO (1.1kg/15.3oz 0.06 sec @7.4v) 3D EP , DLG / HLG / F3K / F3P Aircraft APPLICATION / SUITABLE
SPECIFICATIONS
|
| Operating Voltage Range | 6.0V ~ 8.4V ( 5 ~ 6 Cell Ni-MH or 2S LiPo / 2S LiFe ) |
MICRO SERVO
| Control System | Digital Controller 12-Bits ( 4096 Steps ) / Frequency：250Hz / Neutral：1520us |
| Dead Band Width | 0.002ms ( 2us ) |
| Frame Rate (Signal repeat rate) | 3ms ( Maximum ) [ EX：Futaba-4PX / Sanwa-M12 ] |
| Rotating Direction | Clockwise / Pulse Traveling 1500 ~ 1900u sec |
| Operating Travel | 90° ( When 1100 ~ 1900 μ sec ) |

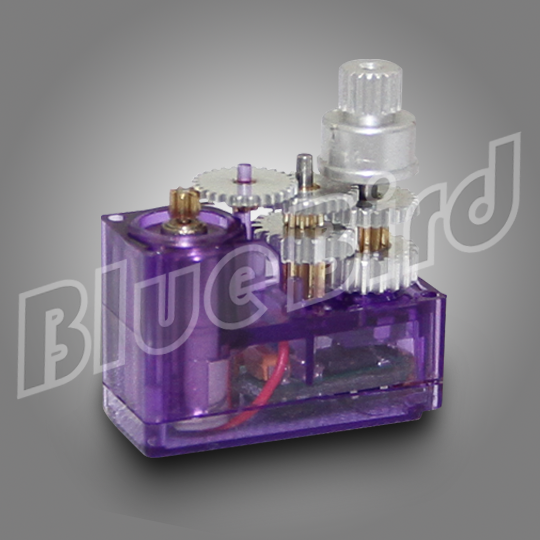

MECHANICAL SPECIFICATIONS
| Ball Bearing | N/A |
| Gear | All Precision Metal Gears |
| Motor | Coreless Motor |
| Horn / Gear Spline | 19 Teeth |
| Cable Length | 150 mm ( 5.9 in ) |
| Connector | Universal Connector ( J-Type ) |
PHYSICAL SPECIFICATIONS

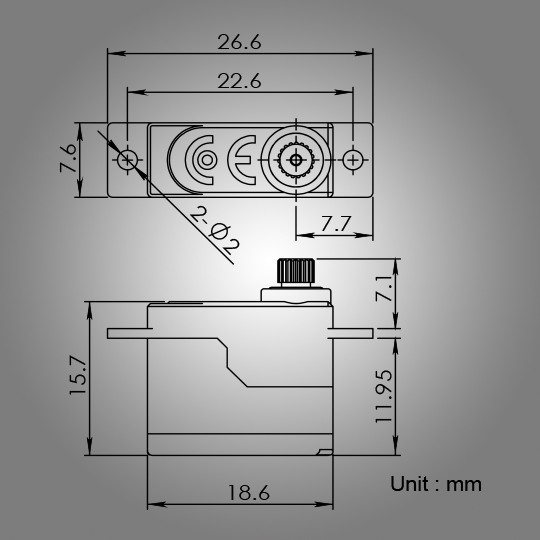

| Dimension (mm) | 18.6 x 7.6 x 15.7 mm / 0.73 x 0.3 x 0.62 in |
| Weight (gram) | 4.4 ± 0.5 grams / 0.15 oz |
