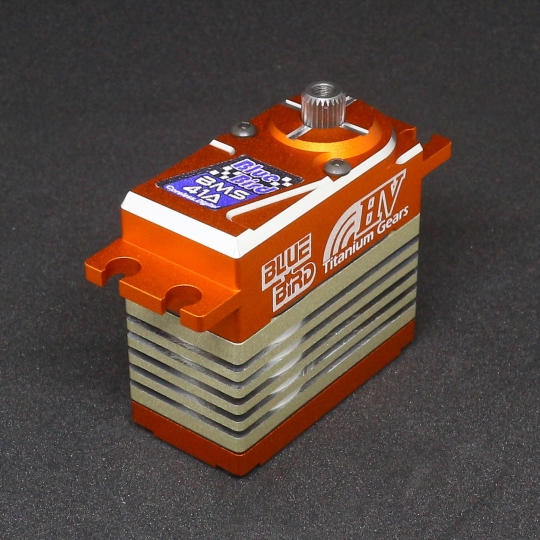

BMS-41A, HV-DIGITAL, MEGA TORQUE, HIGH SPEED, CORELESS +Servo Arm (47.5kg/659.9oz, 0.11sec @8.4V)

Ask a question about this product

Printable version

Options

Our Price:

$81.99

Quantity (37)

Details


Availability	37 in stock
Weight	0.51 lbs
SKU	BBR-BMS-41A
Manufacturer	Blue Bird

BMS-41A, HV-DIGITAL, MEGA TORQUE, HIGH SPEED, CORELESS +Servo Arm (All New Design 2020)

APPLICATION / SUITABLE

Perfect for 3D Airplane, Large Jet & 1/5、1/8th Buggy, Truggy, Crawler,

Monster. (EP / Gas / Nitro)

SPECIFICATIONS

Torque At 6.0V	33.9 kg-cm / 493.1 oz-in
Torque At 7.4V	41.8 kg-cm / 580.6 oz-in
Torque At 8.4V	47.5 kg-cm / 659.8 oz-in
Speed At 6.0V	0.15 sec / 60°
Speed At 7.4V	0.12 sec / 60°
Speed At 8.4V	0.11 sec / 60°

PROTECTION MECHANISM

Soft Start Protection	A soft start to a neutral position.
Over Voltage Protection	Over 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage Protection	Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Rotor Protection	Stall in 5 sec, output torque goes down.
Temperature Protection	Overheat 85 degrees C, drive the protection mode and down 75 degrees C return to normal mode.

POWER SUPPLY

Operating Voltage Range

4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)

STANDARD FULL ALUMINUM SERVO

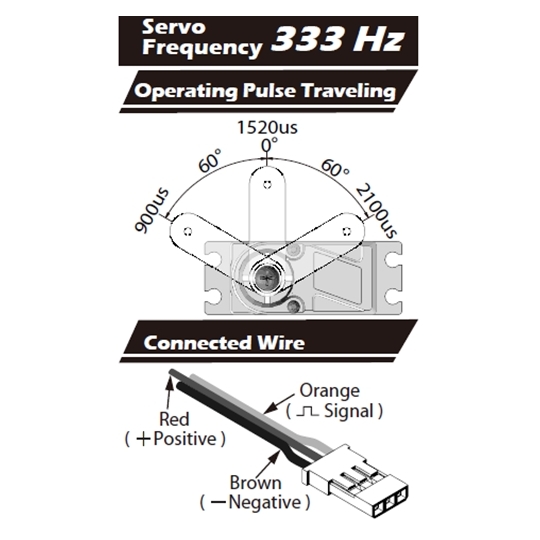

Control System	Digital Controller / AD 12-Bits Resolution ( 4096 Steps ) Frequency：333Hz / Neutral：1520us
Dead Band Width	0.001ms ( Default：1us)

MECHANICAL SPECIFICATIONS

Ball Bearing	Dual
Gear	Titanium Alloy Gears
Motor	High Premium Coreless Motor

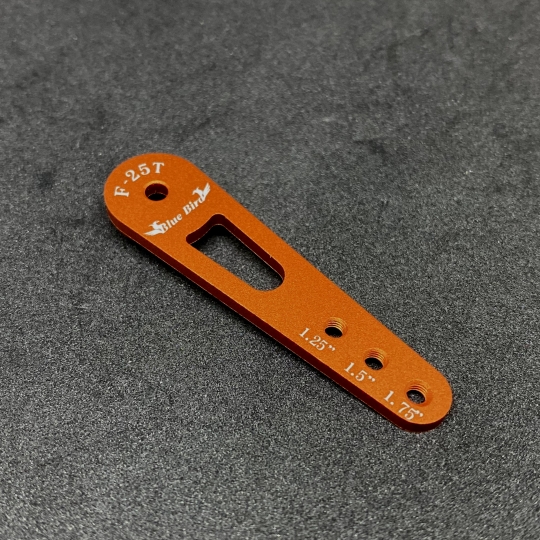

Horn / Gear Spline	25 Teeth ( Same as F-Type )

PHYSICAL SPECIFICATIONS

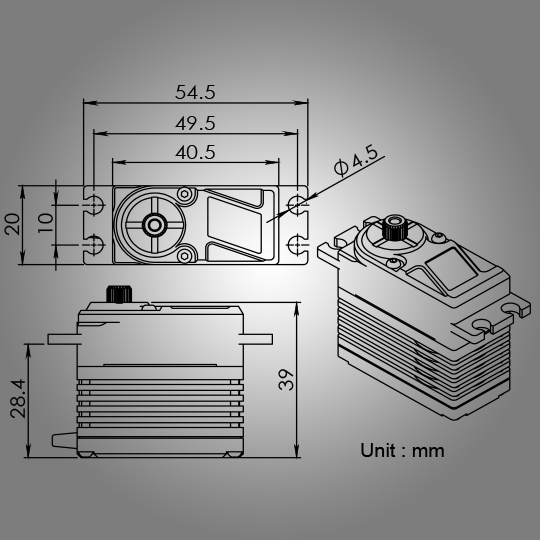

Dimension (mm)	40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram)	74 ± 1 grams / 2.61 oz

Servo Extensions 22AWG and 20AWG

High quality 22AWG wire, twisted silicone wire extensions. JR type connections, so they will plug into any receiver/switch, and most servos (Hitec/JR/PowerHD/etc etc....futaba you would have to trim the edge off).

Soft flexible silicone casing
Heavy duty 22awg
Universal - XQ Power/Hitec/Power HD/JR/more...
Reliable! We've NEVER gotten a pair returned

Prices
- 2" 1 pair - $2.50
- 2" 2 pair - $4.50
- 2" 3 pair - $6.99
- 3" 1 pair - $3.50
- 3" 2 pair - $6.50
- 3" 3 pair - $8.99
- 6" 1 pair - $3.99
- 6" 2 pair - $6.99
- 6" 3 pair - $9.99
- 8" 1 pair - $3.99
- 8" 2 pair - $6.99
- 8" 3 pair - $9.99
- 10" 1 pair - $3.99
- 10" 2 pair - $6.99
- 10" 3 pair - $9.99
- 12" 1 pair - $4.99
- 12" 2 pair - $8.99
- 12" 3 pair - $12.99
- 14" 1 pair - $4.99
- 14" 2 pair - $8.99
- 14" 3 pair - $12.99
- 16" 1 pair - $4.99
- 16" 2 pair - $8.99
- 16" 3 pair - $12.99
- 18" 1 pair - $6.99
- 18" 2 pair - $10.99
- 18" 3 pair - $13.99
- 24" 1 pair - $7.99
- 24" 2 pair - $12.99
- 24" 3 pair - $15.99
- 28" 1 pair - $7.99
- 28" 2 pair - $12.99
- 28" 3 pair - $15.99
- 32" 1 pair - $7.99
- 32" 2 pair - $12.99
- 32" 3 pair - $15.99
- 36" 1 pair - $8.99
- 36" 2 pair - $14.99
- 36" 3 pair - $17.99
- 44" 1 pair - $8.99
- 44" 2 pair - $14.99
- 44" 3 pair - $17.99
- 48" 1 pair - $8.99
- 48" 2 pair - $14.99
- 48" 3 pair - $17.99
