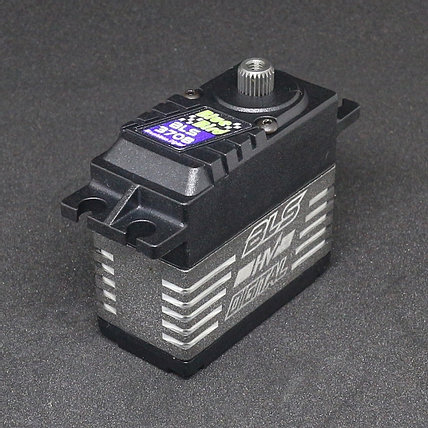

BLS-3708, 8.4V 43.2Kg/600.1 oz, 8.4V 0.07 sec, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, BRUSHLESS (Soft Start Protection Mechanisms)

Contact UsCustomer Reviews
  0
  5. BLS-3708, 8.4V 43.2Kg/600.1 oz, 8.4V 0.07 sec, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, BRUSHLESS (Soft Start Protection Mechanisms)
Tariff Information update
more offers

BLS-3708, 8.4V 43.2Kg/600.1 oz, 8.4V 0.07 sec, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, BRUSHLESS (Soft Start Protection Mechanisms)

Ask a question about this product
Printable version

Share

Options

Market Price: $93.99
Our Price:

$84.99
You Save

10%
Quantity (41)

Details

Availability 41 in stock
Weight 0.51 lbs
SKU BBR-BLS-3708
Manufacturer Blue Bird

BLS-3708, 8.4V 43.2Kg/600.1 oz, 8.4V 0.07 sec, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, BRUSHLESS (Soft Start Protection Mechanisms)

  • Soft Start Protection
  • Over Voltage Protection
  • Low Voltage Protection
  • Locked Rotor Protection
  • Temperature Protection

Applications

Excellent for 3D Airplane, Large Jet & 1/5、1/8th Buggy, Truggy, Crawler, Monster & Helicopter.  (EP / Gas / Nitro)



Specifications

Torque At 6.0V   31.3 kg-cm / 434.8 oz-in
Torque At 7.4V   37.8 kg-cm / 525.1 oz-in
Torque At 8.4V   43.2 kg-cm / 600.1 oz-in
Speed At 6.0V   0.10 sec / 60°
Speed At 7.4V   0.08 sec / 60°
Speed At 8.4V   0.07 sec / 60°



Power Supply

Operating Voltage

Range

 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or

2S Li-Poly / 2S Li-Fe)



Standard Aluminum Cased Servo

Control System Digital Controller / AD 12-Bits Resolution ( 4096 Steps )
Frequency：333Hz / Neutral：1520us
Dead Band Width 0.001ms ( Default：1us)



Mechanical Specifications

Ball Bearing Dual
Gear All Steel Alloy Metal Gears
Motor High Premium Brushless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



PHYSICAL SPECIFICATIONS
Dimension (mm) 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram) 76.5 ± 1 grams / 2.70 oz






: *
: *
: *
