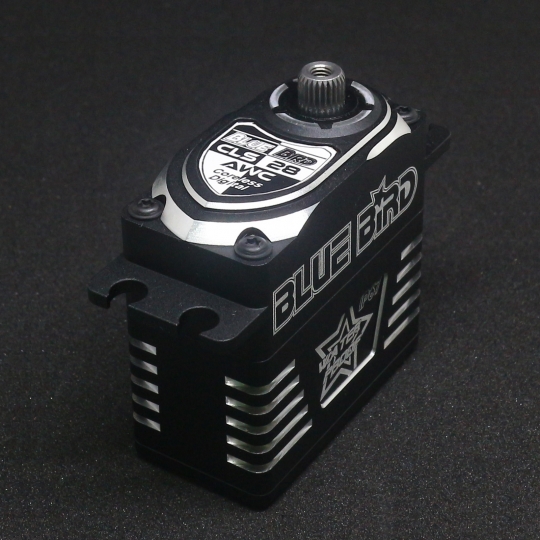

CLS-28AWC Water Proof,+Lockable Servo Arm (32.7 kg/454.2oz, 0.05 sec @ 8.4V New generation Servo)

Ask a question about this product

Printable version

Options

Our Price:

$104.99

Quantity (8)

Details


Availability	8 in stock
Weight	0.52 lbs
SKU	BBR-CLS-28AWC
Manufacturer	Blue Bird

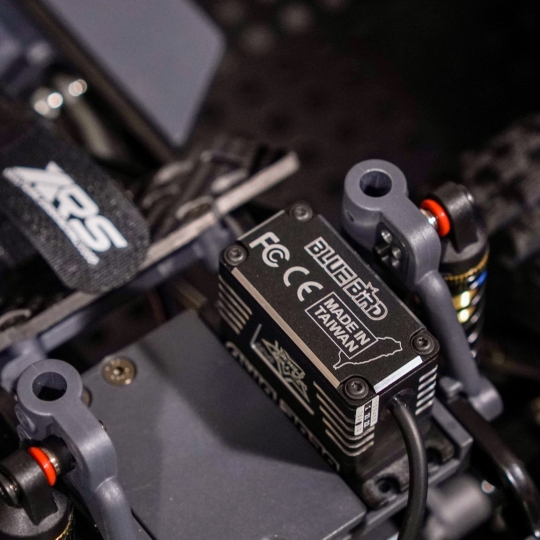

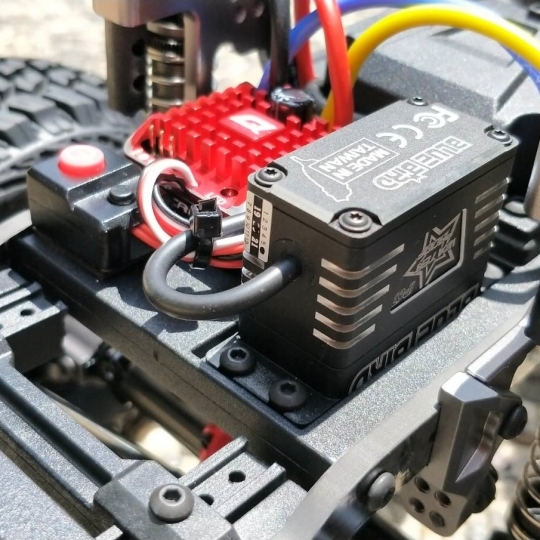

CLS-28AWC Water Proof,+Lockable Servo Arm (32.7 kg/454.2oz, 0.05 sec @ 8.4V New generation Servo)--Blue Bird's latest generation servo that is water proof and includes soft start, voltage, heat, rotor, and loss of control protections and includes a Lockable Aluminum Servo ARM! Perfect match for 1/8 scale Monster Truck/Crawler/Large Boat or 3D Plane!

Water Proof IP67 (Ingress Protection Rating, 6=Dust Tight, 7=Immersion up to 1M for 30 min)

Features:

★Soft Start Protection
★Over Voltage Protection
★Low Voltage Protection
★Locked Rotor Protection
★Temperature and Loss of signal Protection

APPLICATION / SUITABLE

Perfect for 1/8 Scale Buggy (Off-road), GT (On-Road), Monster Truck, Rock Crawler and Large Boats and 3D plane

ELECTRICAL SPECIFICATION (FUNCTION OF THE PERFORMANCE)

Torque At 6.0V	23.5 kg-cm / 326.4 oz-in
Torque At 7.4V	28.9 kg-cm / 401.4 oz-in
Torque At 8.4V	32.7 kg-cm / 454.2 oz-in
Speed At 6.0V	0.08 sec / 60°
Speed At 7.4V	0.06 sec / 60°
Speed At 8.4V	0.05 sec / 60°

PROTECTION MECHANISM

Soft Start Protection	Soft start to neutral position.
Over Voltage Protection	Over 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage Protection	Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Rotor Protection	Stall in 5 sec, output torque goes down.
Temperature and Loss Signal Protection	Overheat 85 degree C, drive the protection mode and down 75 degree C return to normal mode. Loss of TX signal, servo willreturn to neutral position and lock.

POWER SUPPLY

Operating Voltage Range

4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S LiPo / 2S LiFe)

CONTROL SPECIFICATION

Control System	32-Bits CPU Digital Controller / AD 12-Bits ( 4096 Steps ) Frequency：Up to 333Hz / Neutral：1500us or 1520us
Dead Band Width	0.001ms ( Defualt: 1us )

MECHANICAL SPECIFICATIONS

Ball Bearing	Dual, Stronger Steel Bearings 1 piece oil sealed
Gear	All Steel Alloy Metal Gears
Cable	300mm(~12") Black Cased Cable
Motor	High Premium Coreless Motor
Horn / Gear Spline	25 Teeth ( Same as F-Type)

PHYSICAL SPECIFICATIONS

Dimension (mm)	40.6 x 20.6 x 41.2 mm / 1.6 x 0.81 x 1.62 in
Weight (gram)	85.0 ± 1 grams / 2.99 oz

Includes Servo and Aluminum Servo Arm

DA-85cc Gas Engine

Description:

Ultimate Power in its class !
The all-new DA-85 combines the low weight and the affordable price of an single-cylinder-engine with the power usually only 100cc engines have. The perfect choice for your 35% sized airplane.

Specifications:

*More Coming Soon*

Displacement: 85.9cc (5.24 cu in)
Bore and Stroke: 2.047in x 1.59in (52mm x 40.49mm)
Weight: 4.3 lb (1.95 kilos)
Output: 8.5 hp
RPM Range: 1200-7500
RPM Max: 9500
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: electronic ignition, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 28x10, 27x10, 26x12
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Fuel Consumption: 2.2oz/min @ 6000 RPM

Features:

DA engines are designed using the latest tools and techniques, including 3d CAD and stereo lithography
INCLUDES: Engine, spark plug, standoffs, ignition, instruction manual
DA auto advance electronic igniton
Walbro Carb
Exclusive DA designed cylinders, pistons, and crank shaft
CNC milled, 7075 aluminum alloy crankcase
low vibration
Most torque in its class
Long rod to stroke ratio
Aerobatic power curve

*Takes 4-5 days to ship once order is placed*

DA-85

$750.00 750.00

HiTec D-954SW High Torque Steel Gear Servo .12sec/405oz @ 7.4v

D-954SW High Torque Steel Gear Servo .12sec/405oz @ 7.4v

With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. The HSB-9360’s speed is ideal for pilots with the need for speed!

Features:

Power Efficient Brushless Motor Controller
Energy efficiency is a common interest for all modelers. Our HSB-9XXX Series uses the latest control circuit technology including a regenerative braking circuit which puts power back into the battery as the motor slows. This feature, combined with ultralow current draw under sustained loads, allows our brushless servos to consume 1/5 the power of most other brushless servos on the market today.
Custom NeuMotor
Designed by Steve Neu exclusively for our HSB-9XXX Series, these high performance, brushless motors provide longstanding durability and performance.
Constant Torque Output:
Thanks to our revolutionary circuit and motor designs, the HSB-9XXX Series maintain their speed in a more consistent manner, regardless of load.
Hybrid MPD 1st Gear:
Our unique ultra-durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle.
Industry-Leading Titanium Gear Train
Hitec was the first manufacturer to utilize low wear Titanium gears in our servos and continues to be the leader in Titanium gear technology.
25-Tooth Standard Spline
Our Brushless servos utilize a standard 25 tooth output spline for maximum compatibility with the large variety of aftermarket horn available on the market these days.

Specifications:
- Torque:
  - 236 oz/in at 6V (17.0 kg-cm)
  - 236 oz/in at 7.4V (17.0 kg-cm)
- Speed:
  - .08 sec at 6V
  - .06 sec at 7.4V
- Voltage: 6V - 7.4V
- Weight: 2.40oz (68g)
- Size: 40 x 20 x 68 mm (1.57 x 0.79 x 1.50in)
