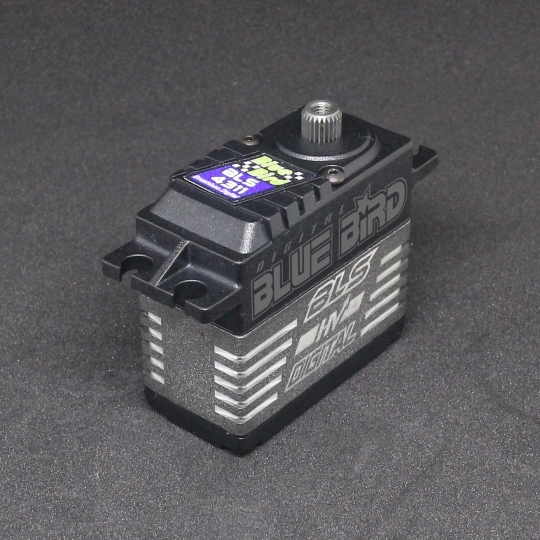

BLS-4311, 8.4V 49.7Kg/690.3 oz, 8.4V 0.10 sec, HV-DIGITAL, SUPER HIGH TORQUE, HIGH SPEED, BRUSHLESS (Soft Start Protection Mechanisms)

Contact UsCustomer Reviews
  0
  5. BLS-4311, 8.4V 49.7Kg/690.3 oz, 8.4V 0.10 sec, HV-DIGITAL, SUPER HIGH TORQUE, HIGH SPEED, BRUSHLESS (Soft Start Protection Mechanisms)
Tariff Information update
The Redwing RC Office will be operating with reduced staff until 24 Jun. Orders can still be accepted during this time but will take longer than usual to process/ship. If you need the item urgently (moved to top of the list), select Priority express and we will do our best to rush the order out to you as quickly as possible.
more offers

BLS-4311, 8.4V 49.7Kg/690.3 oz, 8.4V 0.10 sec, HV-DIGITAL, SUPER HIGH TORQUE, HIGH SPEED, BRUSHLESS (Soft Start Protection Mechanisms)

Ask a question about this product
Printable version

Share

Options

Market Price: $93.99
Our Price:

$84.99
You Save

10%
Quantity (35)

Details

Availability 35 in stock
Weight 0.51 lbs
SKU BBR-BLS-4311
Manufacturer Blue Bird

BLS-4311, 8.4V 49.7Kg/690.3 oz, 8.4V 0.10 sec, HV-DIGITAL, SUPER HIGH TORQUE, HIGH SPEED, BRUSHLESS (Soft Start Protection Mechanisms)

  • Soft Start Protection
  • Over Voltage Protection
  • Low Voltage Protection
  • Locked Rotor Protection
  • Temperature Protection
  • Loss of Control Protection

Applications

Excellent for 3D Airplane, Large Jet & 1/5、1/8th Buggy, Truggy, Crawler, Monster & Helicopter.  (EP / Gas / Nitro)



Specifications

Torque At 6.0V   35.5 kg-cm / 493.1 oz-in
Torque At 7.4V   43.8 kg-cm / 608.4 oz-in
Torque At 8.4V   49.7 kg-cm / 690.3 oz-in
Speed At 6.0V   0.13 sec / 60°
Speed At 7.4V   0.11 sec / 60°
Speed At 8.4V   0.10 sec / 60°



Power Supply

Operating Voltage

Range

 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or

2S Li-Poly / 2S Li-Fe)



Standard Aluminum Cased Servo

Control System Digital Controller / AD 12-Bits Resolution ( 4096 Steps )

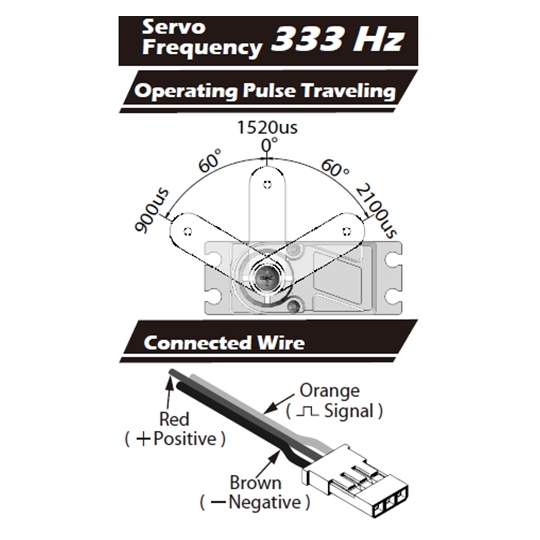

Frequency：333Hz / Neutral：1520us
Dead Band Width 0.001ms ( Default：1us)



Mechanical Specifications

Ball Bearing Dual
Gear All Steel Alloy Metal Gears
Motor High Premium Brushless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



PHYSICAL SPECIFICATIONS
Dimension (mm) 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram) 76.5 ± 1 grams / 2.70 oz







: *
: *
: *
