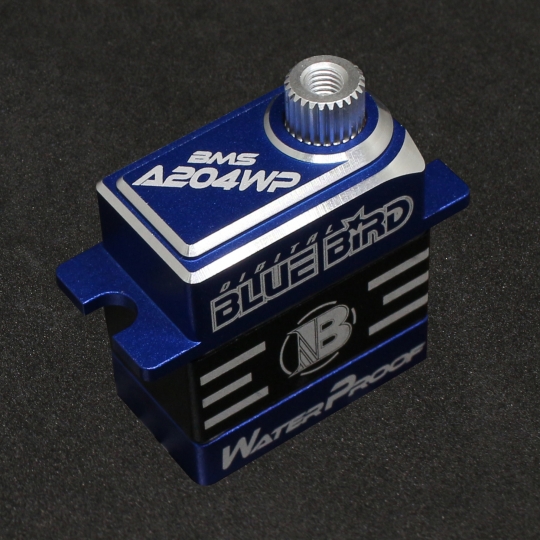

BMS-A204WP MINI, WATER PROOF, DIGITAL, HIGH SPEED, METAL GEAR, CORELESS 9.0 kg/125.0 oz 0.09 sec @8.4V

Contact UsCustomer Reviews
  0
  5. BMS-A204WP MINI, WATER PROOF, DIGITAL, HIGH SPEED, METAL GEAR, CORELESS 9.0 kg/125.0 oz 0.09 sec @8.4V
Tariff Information update
The Redwing RC Office will be operating with reduced staff until 24 Jun. Orders can still be accepted during this time but will take longer than usual to process/ship. If you need the item urgently (moved to top of the list), select Priority express and we will do our best to rush the order out to you as quickly as possible.
more offers

BMS-A204WP MINI, WATER PROOF, DIGITAL, HIGH SPEED, METAL GEAR, CORELESS 9.0 kg/125.0 oz 0.09 sec @8.4V

Ask a question about this product
Printable version

Share

Options

Our Price:

$39.99
Quantity (36)

Details

Availability 36 in stock
Weight 0.51 lbs
SKU BBR-BMS-A204WP
Manufacturer Blue Bird

BMS-A204WP MINI, WATER PROOF, DIGITAL, HIGH SPEED, METAL GEAR, CORELESS 9.0 kg/125.0 oz 0.09 sec @8.4V

Application / Suitable

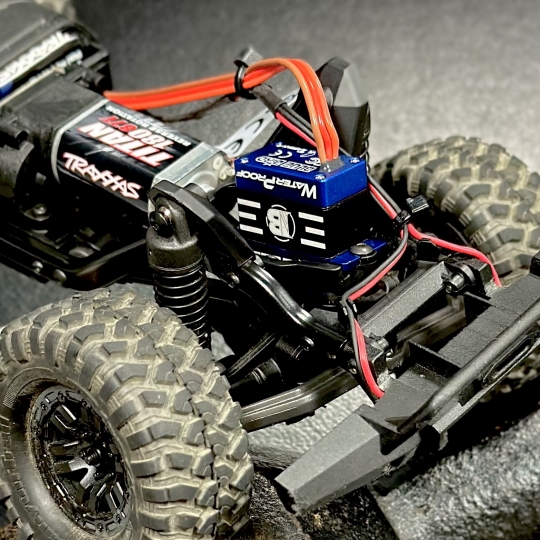

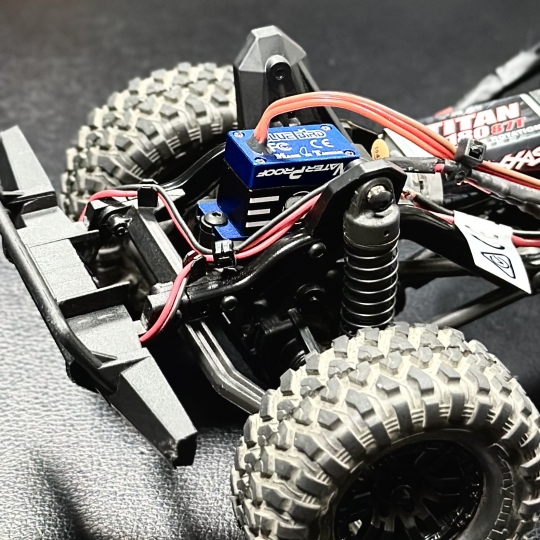

Perfect for Sailboat Rudder. Suitable for TRX4 & TRX-4M of Traxxas and small RC cars.



Specifications
Torque At 6.0V 6.6 kg-cm / 91.7 oz-in
Torque At 7.4V 7.8 kg-cm / 108.3 oz-in
Torque At 8.4V 9.0 kg-cm / 125.0 oz-in
Speed At 6.0V 0.12 sec / 60°
Speed At 7.4V 0.10 sec / 60°
Speed At 8.4V 0.09 sec / 60°



Protection Mechanism
Soft Start Protection Soft start to a neutral position.
Locked Rotor Protection Stall in 5 sec, output torque goes down.
Lose Control Protection When losing the transmitter signal, that servo will be back to the neutral position immediately and lock.



Power Supply
Operating Voltage Range  4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)
Operating Temperature Range -10°C ~ +60°C ( +14°F ~ +140°F )



Control Specification
Control System Digital Controller / AD 12-Bits Resolution ( 4096 Steps )
Frequency：Up to 333Hz / Neutral：1500us or 1520us
Dead Band Width 0.001ms ( Default：1us)



Mechanical Specifications
Ball Bearing Dual ball bearings
Gear Stainless output shaft with All Metal Gears
Motor Custom High-Efficiency Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )
Connected Cable Length 300 mm (11.81 in)



Physical Specifications

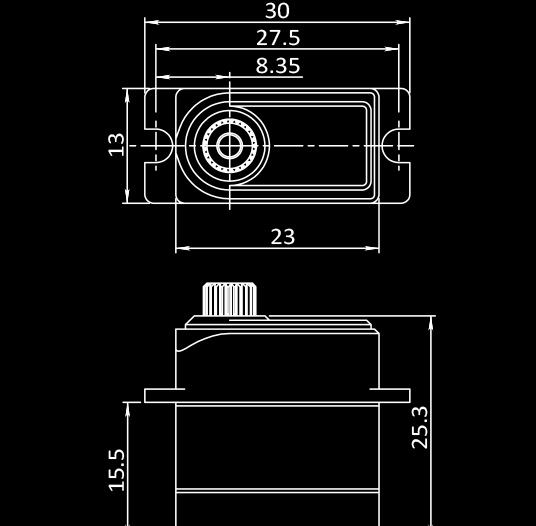

Dimension (mm) 23 x 13 x 25.3 mm / 0.91 x 0.51 x 1.0 in
Weight (gram) 20.7 ± 0.5 grams / 0.73 oz
  ​








: *
: *
: *
