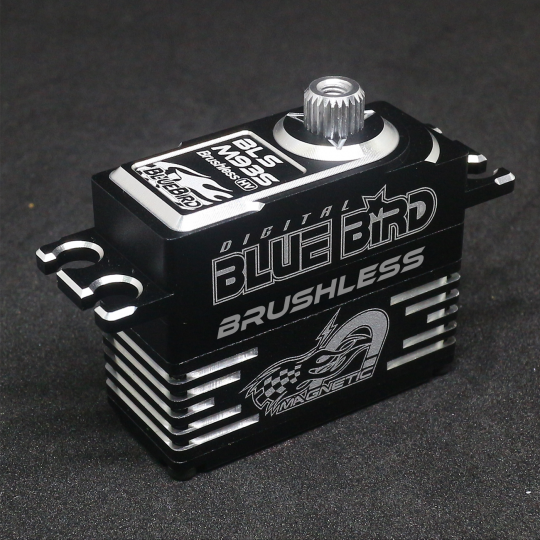

BLS-M93S, MINI HV-DIGITAL, ULTRA HIGH SPEED, MAGNETIC, BRUSHLESS (Soft Start and Includes lockable Arm) 13.1 kg/181.9oz 0.04sec 8.4V

Ask a question about this product

Printable version

Options

Our Price:

$97.99

Quantity (12)

Details


Availability	12 in stock
Weight	0.51 lbs
SKU	BBR-BLS-M93S
Manufacturer	Blue Bird

BLS-M93S, MINI HV-DIGITAL, ULTRA HIGH SPEED, MAGNETIC, BRUSHLESS (Soft Start and Includes lockable Arm) 13.1 kg/181.9oz 0.04sec 8.4V

Application / Suitable

Priority for 3D Airplane & Jets, Helicopter 550-Class tail (Rudder) and 1/12th On-Road Car.

Electrical Specification (Function Of The Performance)

Torque At 6.0V	9.3 kg-cm / 129.2 oz-in
Torque At 7.4V	11.5 kg-cm / 159.7 oz-in
Torque At 8.4V	13.1 kg-cm / 181.9 oz-in
Speed At 6.0V	0.06 sec / 60°
Speed At 7.4V	0.05 sec / 60°
Speed At 8.4V	0.04 sec / 60°

Protection Mechanism

Soft Start Protection	Soft start to a neutral position.
Locked Rotor Protection	Stall in 5 sec, output torque goes down.
Temperature Protection	Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode.
Lose Control Protection	When losing the transmitter signal, that servo will be back to the neutral position immediately and lock.

Power Supply

Operating Voltage Range

4.5V ~ 8.7V DC ( 2S HV Li-Poly / 2S Li-Fe Compatible )

Control Specification

Control System	Higher-order Algorithm of【STMicroelectronics】32-bit MCU ( Microcontroller Unit ) Frequency：Up to 400Hz / Neutral：1500us or 1520us
Dead Bend Width	0.001ms ( Default：1us)
Potentiometer (Variable Resistor)	Magnetic Hall-effect Sensor【Non-Contact】instead of traditional VR.

Mechanical Specifications

Ball Bearing	Dual ball bearings
Gear	All Durable Metal Gears
Outside Case	Full One-Piece Aluminum CNC Casing
Motor	Custom High-Efficiency Brushless Motor
Horn / Gear Spline	25 Teeth

Physical Specifications

Dimension (mm)	35.5 x 15 x 29 mm / 1.4 x 0.59 x 1.14 in
Weight (gram)	35.5 ± 1 grams / 1.25 oz
Product Picture / Dimension Sketch

Servo Extensions 22AWG and 20AWG

High quality 22AWG wire, twisted silicone wire extensions. JR type connections, so they will plug into any receiver/switch, and most servos (Hitec/JR/PowerHD/etc etc....futaba you would have to trim the edge off).

Soft flexible silicone casing
Heavy duty 22awg
Universal - XQ Power/Hitec/Power HD/JR/more...
Reliable! We've NEVER gotten a pair returned

Prices
- 2" 1 pair - $2.50
- 2" 2 pair - $4.50
- 2" 3 pair - $6.99
- 3" 1 pair - $3.50
- 3" 2 pair - $6.50
- 3" 3 pair - $8.99
- 6" 1 pair - $3.99
- 6" 2 pair - $6.99
- 6" 3 pair - $9.99
- 8" 1 pair - $3.99
- 8" 2 pair - $6.99
- 8" 3 pair - $9.99
- 10" 1 pair - $3.99
- 10" 2 pair - $6.99
- 10" 3 pair - $9.99
- 12" 1 pair - $4.99
- 12" 2 pair - $8.99
- 12" 3 pair - $12.99
- 14" 1 pair - $4.99
- 14" 2 pair - $8.99
- 14" 3 pair - $12.99
- 16" 1 pair - $4.99
- 16" 2 pair - $8.99
- 16" 3 pair - $12.99
- 18" 1 pair - $6.99
- 18" 2 pair - $10.99
- 18" 3 pair - $13.99
- 24" 1 pair - $7.99
- 24" 2 pair - $12.99
- 24" 3 pair - $15.99
- 28" 1 pair - $7.99
- 28" 2 pair - $12.99
- 28" 3 pair - $15.99
- 32" 1 pair - $7.99
- 32" 2 pair - $12.99
- 32" 3 pair - $15.99
- 36" 1 pair - $8.99
- 36" 2 pair - $14.99
- 36" 3 pair - $17.99
- 44" 1 pair - $8.99
- 44" 2 pair - $14.99
- 44" 3 pair - $17.99
- 48" 1 pair - $8.99
- 48" 2 pair - $14.99
- 48" 3 pair - $17.99

$2.50 2.50

20cc EDGE 540 Profile - Yellow w/ Star Burst

New Design: 20cc Edge Profile

Now with Carbon Fiber Reinforcements!

SIDE FORCE GENERATORS INCLUDED!

We are growing again with the addition of the 20cc Edge 540 profile! The Edge 540 is known for its unsurpassed harrier and slow alpha flight capability and this 20cc version is no different.

Enjoy smooth clean knife edge and similar maneuvers as well as very predictable smooth 3D. Very even rolling harriers, easy hover and torque rolls - this plane is a GREAT learning tool with the wonderful advantages of gasoline.

This new 20cc Edge 540 comes with the same great features that Redwing provides with all of our profile planes. It is set up and ready for a DLE 20 to be mounted right in - or try going electric with our new Tomcat Electric Motors with a little adaptation. A neat feature of the 20cc Edge is that is has a carbon fiber tube running the FULL length of the fuselage for added strength. Even those not fans of profiles will fall in love with this beauty! Holds the DLE 20 or DLE 20RA perfectly and the 20cc Extra 330 profile has a beautiful red and silver covering job

The 20cc Edge 540 profile comes in 2 new attractive schemes designed by Adam Strong. Get them while they are in stock. The last time we added one of our affordable new lines of profiles we ran out in weeks! Don't let this one slip by.

Buy Replacement Parts
Product Manual

Specifications:

Wing span: 1651mm / 65"
Wing area: 69.2 sq. dm/ 1072 sq. in
All up flying weight: 3100g / 9 lbs
Length: 1587.5 mm/ 62.5"
Engine: DLE 20 / DLE 20RA
Radio: 5 channel
Recommended Spinner Size: 2.5"
Recommended CG: 5.25" from the leading edge at the root
Recommended Prop Size: 17x6
Recommended Throws:
- Low Rates Settings | High Rate Settings
- Rudder: |
- Ailerons: |
- Elevator: |
