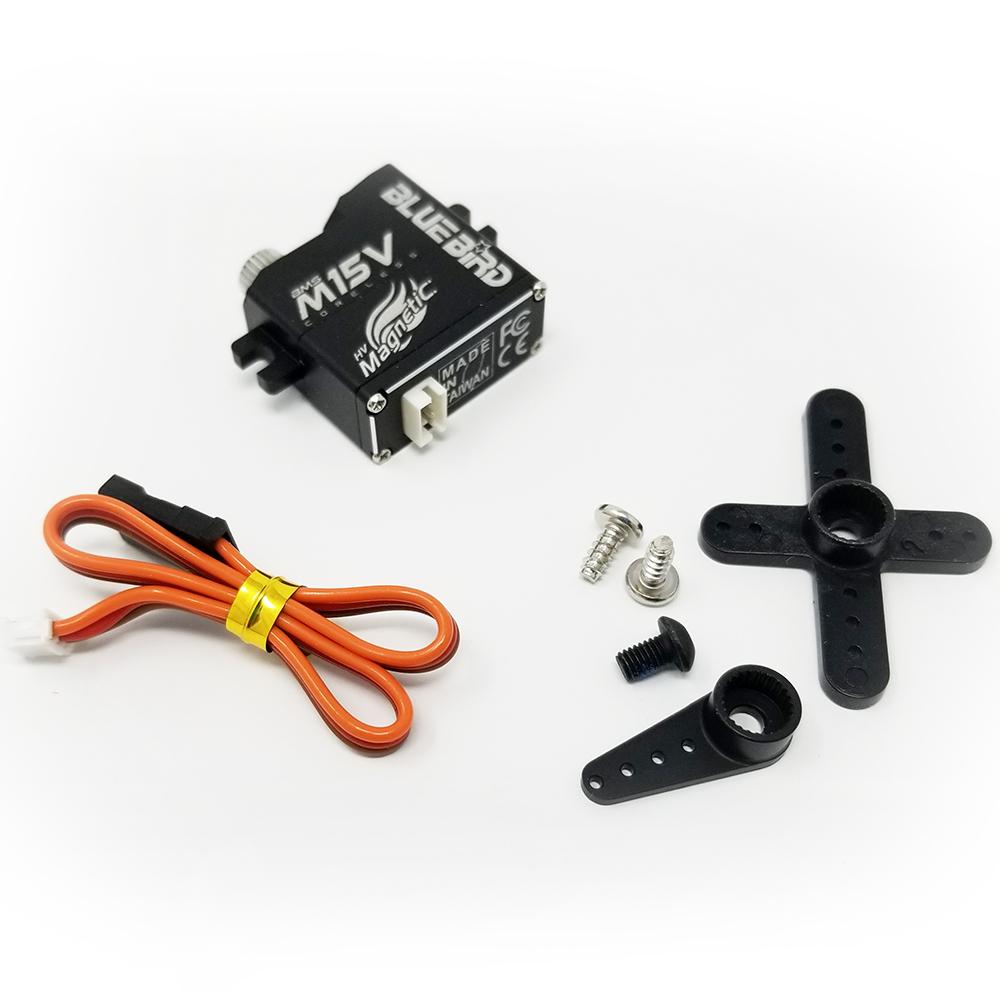

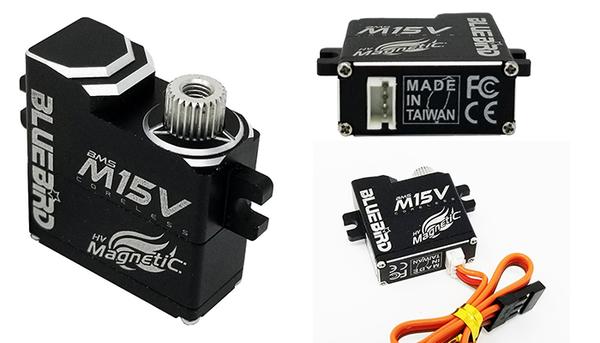

BMS-M15V Wing Servo, HV-Digital, Magnetic Sensor, Micro, High Torque, Metal Gear, Coreless servo

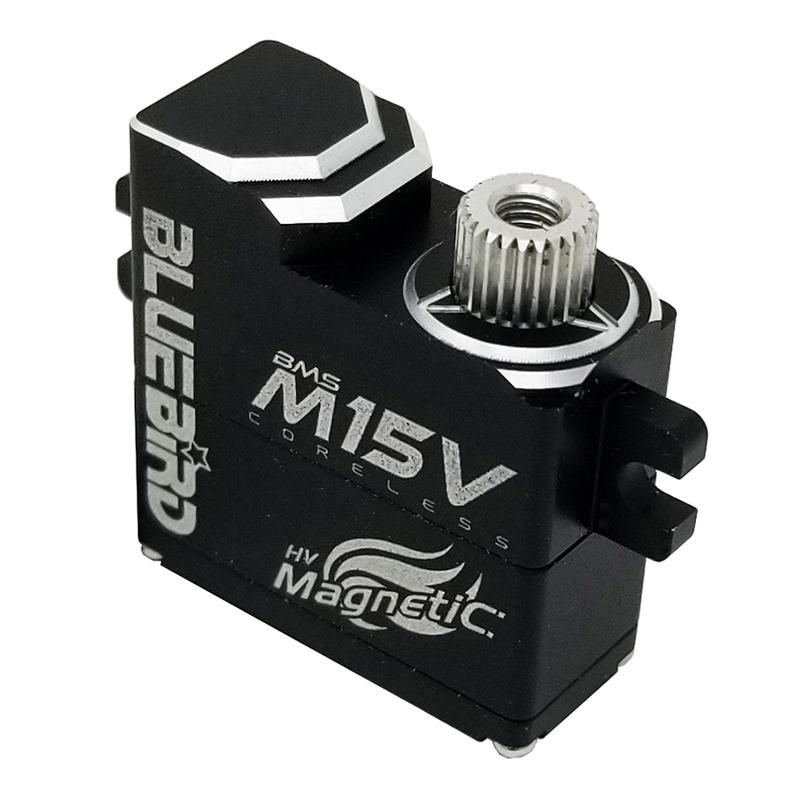

The Blue Bird BMS-M15V servo is a ground-breaking new servo from Bluebird, perfect for the F5J market. It uses a magnetic contactless position sensor which will never wear out and thus removes the major failure mode of my most RC servos. The case of the -V version incorporates two horizontal mounting lugs for secure mounting in wings and tail services.

Despite being only 10 mm thick the M15V’s torque and speed are both very high making it suitable for all control surfaces on fast gliders and jets. The voltage range goes from 4.5V up to 8.5V, making it perfect for use from electronic speed controls (ESC), 4.8V NiMH or 2S Lipo batteries. The high-quality metal gears are supported on two ball bearings and the servo is driven by a high-quality coreless DC motor. The black case is anodised aircraft grade aluminium alloy, not plastic.

The large output spline is identical to Futaba 25 tooth splines, so replacement output arms are readily available.

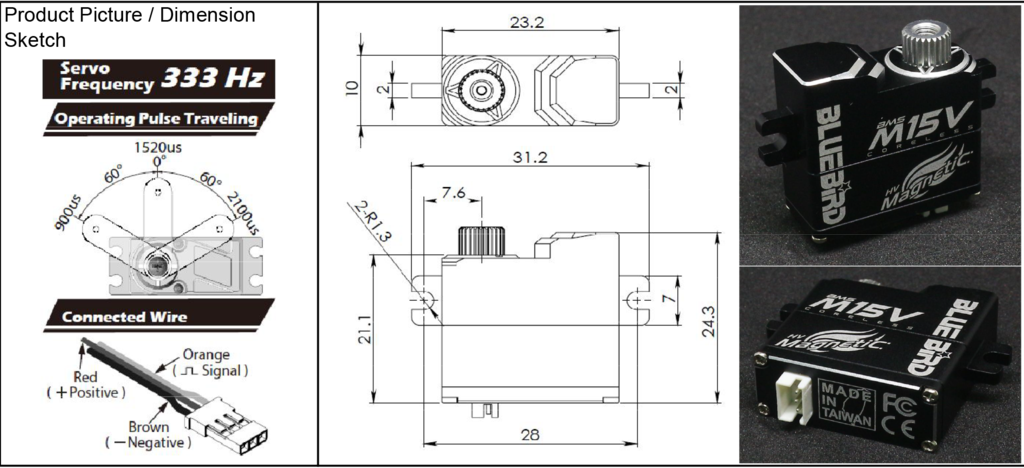

Data sheet - BMS-M15V_20200113 [528kb]



APPLICATION / SUITABLE
3D EP Aircraft, F5J, F3K, F3P & DLG, HLG.
SPECIFICATIONS
Torque At 6.0V 5.1 kg-cm / 70.8 oz-in
Torque At 7.4V 6.4 kg-cm / 88.9 oz-in
Torque At 8.4V 7.5 kg-cm / 104.2 oz-in
Speed At 6.0V 0.14 sec / 60°
Speed At 7.4V 0.11 sec / 60°
Speed At 8.4V 0.10 sec / 60°


POWER SUPPLY

Operating Voltage Range  4.5V ~ 8.5V 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe )



MICRO SERVO
Control System Digital Controller 12-Bits 12-Bits 12-Bits ( ( 4096 4096 Steps Steps ) ) Working Frequency & Neutral 333 Hz / 1520us
Dead Band Width 0.001ms (1us)
Frame Rate (Signal repeat rate) 3ms ( Maximum ) [ EX：Futaba-4PX / Sanwa-M12 ]
Rotating Direction Clockwise / When Pulse Traveling 1500 ~ 1900u sec
Operating Travel 90° (When 1100 ~ 1900 μ sec) [ Maximum..900us ~ 2100us ]



MECHANICAL SPECIFICATIONS
Ball Bearing 2 Ball Bearing
Gear All Metal Gears
Motor Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )
Cable Length 140 mm ( 5.5 in )
Connector Universal Connector ( J-Type )



PHYSICAL SPECIFICATIONS
Dimension (mm) 23.2 x 10 x 24.3 mm / 0.91 x 0.39 x 0.96 in
Weight (gram) 12.0 ± 0.5 grams / 0.42 oz​









: *
: *
: *
