BMS-391HT, HV MINI, DIGITAL, METAL GEAR, CORELESS (New 2020) 9.7kg/134.7oz 0.10 [email protected]

Ask a question about this product

Printable version

Options

Our Price:

$34.99

Quantity (21)

Details


Availability	21 in stock
Weight	0.35 lbs
SKU	BBR-BMS-391HT
Manufacturer	Blue Bird

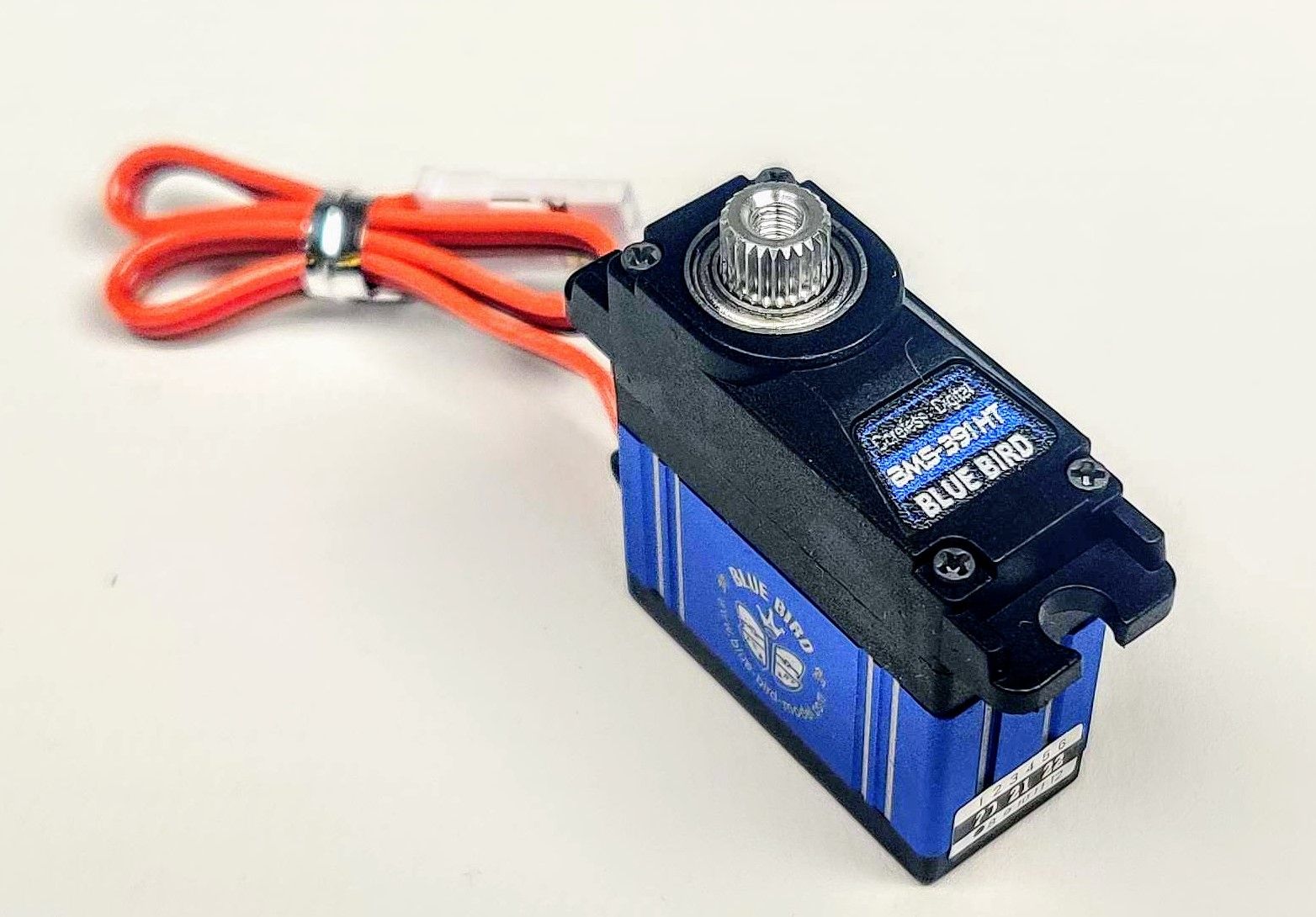

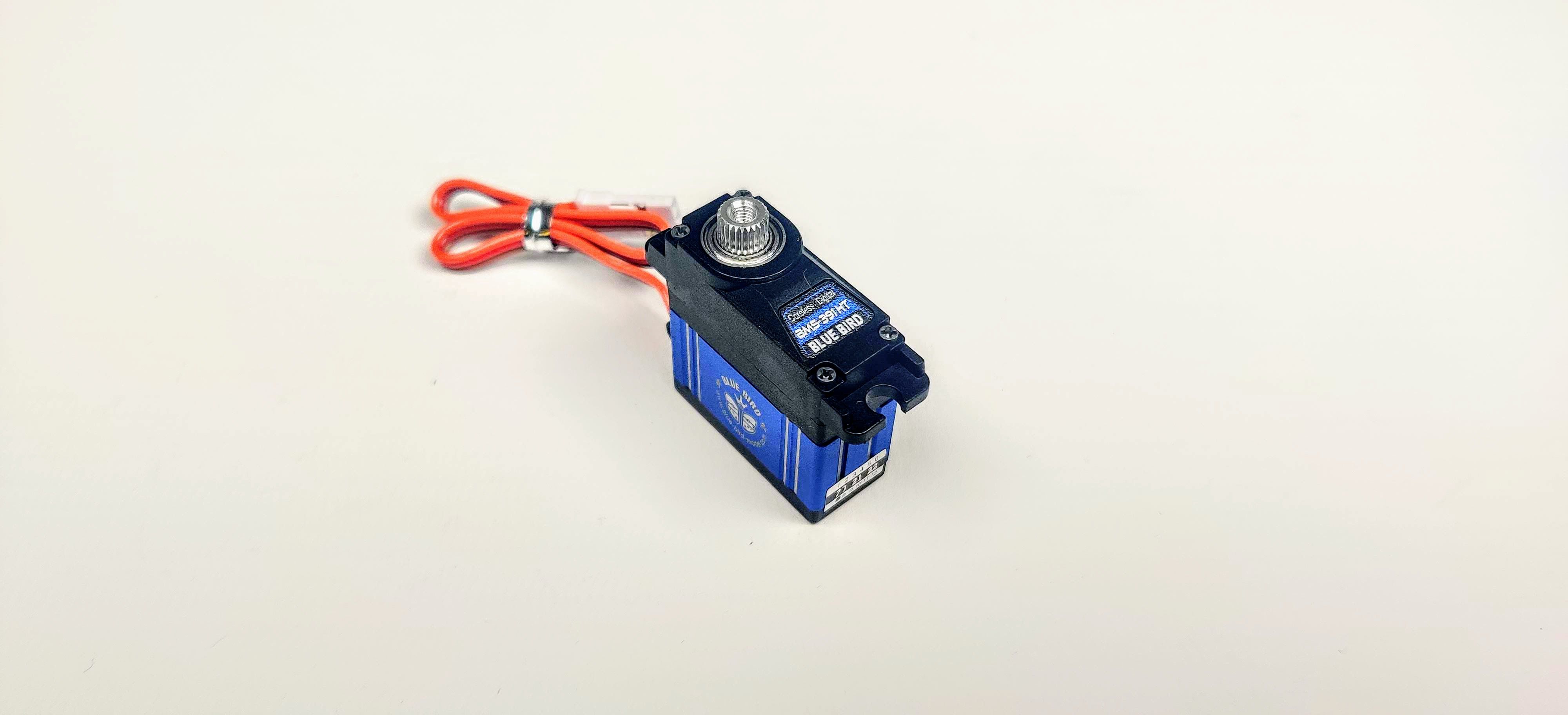

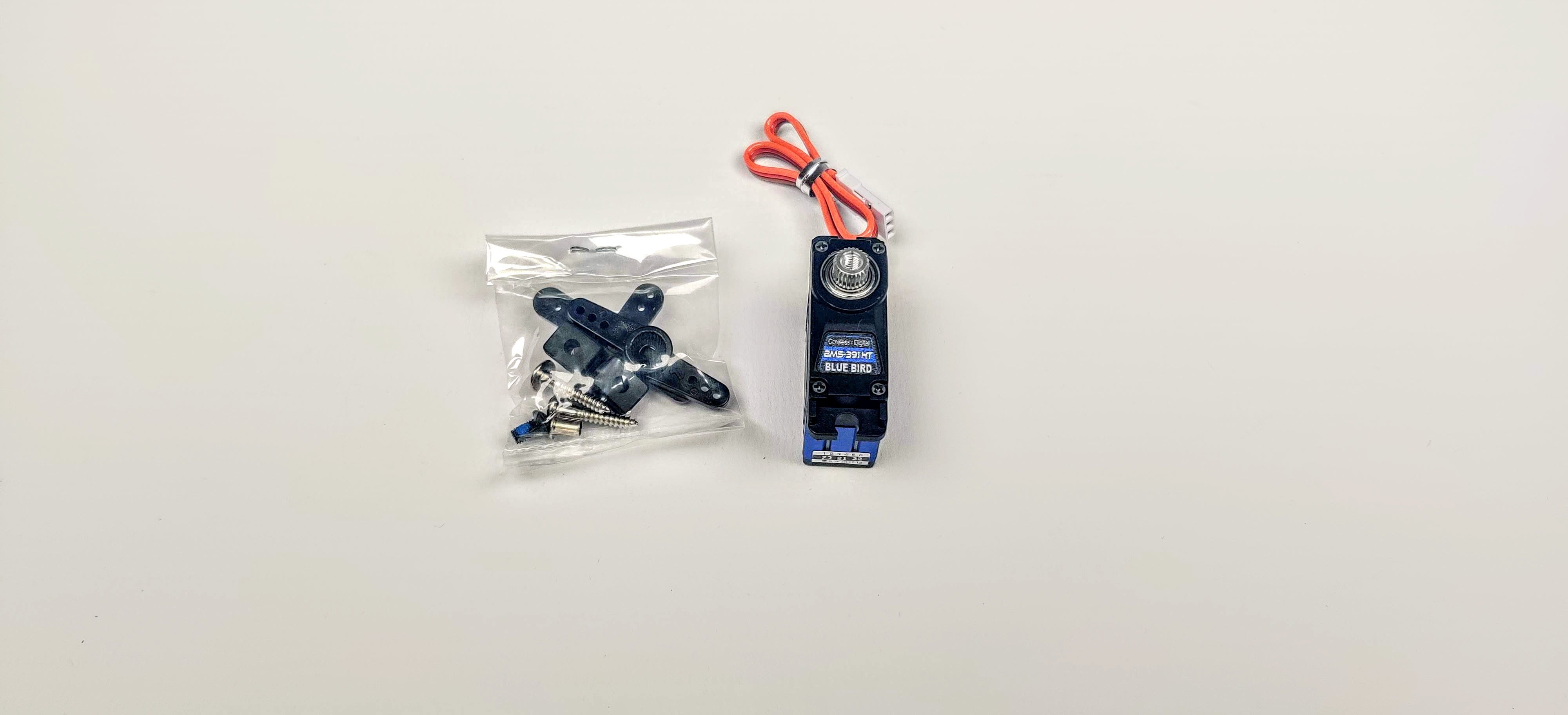

BMS-391HT. HV MINI, DIGITAL, METAL GEAR, CORELESS (New 2020)

APPLICATION / SUITABLE

Perfect for: EP Aircraft , Heli 450 Class CCPM , Car 1/12th & 1/18th

SPECIFICATIONS

Torque At 6.0V	6.9 kg-cm / 95.8 oz-in
Torque At 7.4V	8.6 kg-cm / 119.4 oz-in
Torque At 7.4V	9.7 kg-cm / 134.7 oz-in
Speed At 6.0V	0.13 sec / 60°
Speed At 7.4V	0.11 sec / 60°
Speed At 8.4V	0.10 sec / 60°

POWER SUPPLY

Operating Voltage Range

4.5V ~ 8.5V ( 4~6 Cell Ni-MH or 2S LiFe / LiPo Compatible)

MINI SERVO

Control System	Digital Controller / AD 12-Bits Resolution ( 4096 Steps )
Dead Band Width	0.002ms ( Default：2us)
Working Frequency & Neutral	333 Hz / 1520us
Frame Rate (Signal repeat rate)	3ms (Maximum)
Rotating Direction	Clockwise / Pulse Traveling 1500 ~ 1900u sec
Operating Travel	90° (When 1100 ~ 1900 μ sec) [ Maximum：800us ~ 2200us ]

MECHANICAL SPECIFICATIONS

Ball Bearing	Dual
Gear	All Metal Gears
Motor	Premium Coreless Motor
Horn / Gear Spline	25 Teeth ( Same as F-Type )
Outside Case	Middle Aluminum Alloy Case
Connected Cable Length	150 mm (5.90 in)
Connector Housing	Universal Connector (J-Type)

PHYSICAL SPECIFICATIONS

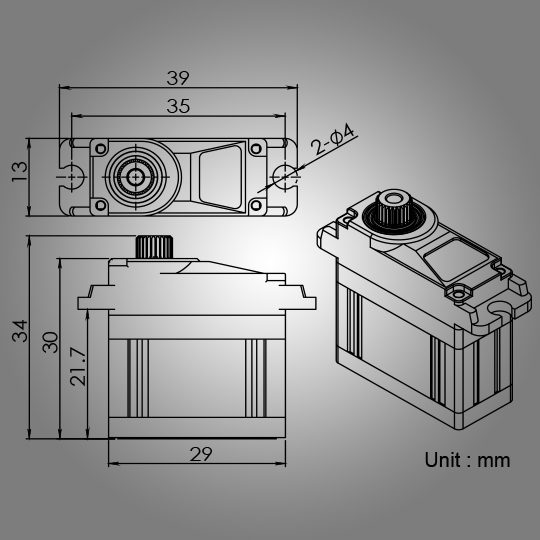

Dimension (mm)	29 x 13 x 30 mm / 1.14 x 0.51 x 1.18 in
Weight (gram)	22.5 ± 1 grams / 0.79 oz

Carbon Fiber Landing Gear (30cc-120cc sizes) Angled and Curved Style

Available in styles for

Yak carbon fiber replacement gear Sbach carbon fiber replacement gear MXSR/MX2 carbon fiber replacement gear Extra carbon fiber replacement gear Edge carbon fiber replacement gear etc

A - Sbach, MXSR, Slick, Edge, Extra 260
B - Yak, Sukoi
C - Yak also
PLEASE NOTE: THE GEAR HAVE NOT BEEN DRILLED SO YOU CAN MATCH IT TO YOUR PLANE.

Dimensions (match the below information to the inset photo)

30cc A STYLE (3.6 oz)
- A=7.5"
- B=16"
- C=5.5"
- D=1.187" taper to 1"
- E=1.5"

30cc B STYLE (3.8 oz)
- A=6.5"
- B=16.75"
- C=6.25"
- D=1.375" taper to 1"
- E=1"

30cc C STYLE (3.4 oz)
- A=6.5"
- B=15.5"
- C=5.5"
- D=1.125" taper to .75
- E=1"

50cc A STYLE (8.2 oz)
- A=9.25"
- B=18.75"
- C=8"
- D=1.5" taper to 1.125"
- E=1.5"

50cc B STYLE (6 oz)
- A=8.75"
- B=18.5"
- C=6.5"
- D=1.5" taper to 1"
- E=1.25"

50cc C STYLE (6 oz)
- A=7.75"
- B=18.5"
- C=6.25"
- D=1.5" taper to 1"
- E=1.0"

50cc A STYLE (8.2 oz)
- A=9.25"
- B=18.75"
- C=8"
- D=1.5" taper to 1.125"
- E=1.5"

50cc B STYLE (6 oz)
- A=8.75"
- B=18.5"
- C=6.5"
- D=1.5" taper to 1"
- E=1.25"

Carbon Fiber Landing Gear Extra 300 Series For 26-30cc, 50-80cc and 100-120cc

Dimensions (match the below information to the inset photo)

26-30cc
- A=140mm 5.5"
- B=400mm 15.75"
- C=170mm 6.69"
- D=28mm 1.10"

50-80cc
- A=160mm 6.29"
- B=465mm 18.30"
- C=198mm 7.79"
- D=40mm 1.57"

100-120cc
- A=190mm 7.48"
- B=560mm 22.04"
- C=252mm 9.92"
- D=50mm 1.96"

SS-CF-LG

$39.99 39.99

Carbon Fiber Wing Tube with Fiberglass Sleeve Matched Sets (385mm-1260mm)

Carbon Fiber Wing Tube with Fiberglass Sleeve Matched Set

RedwingRC Carbon Fiber Wing Tubes are strong and light weight, exactly the way it should be. They provide your wings with a lot of strength so you can fly till your heart's content without adding any extra weight.

Available in three sizes, a 20cc, 30cc and 50cc size.

Details (approx.):

20cc - Diameter: 3/4" / Length: 24 1/4"
30cc - Diameter: 3/4" / Length: 29 5/8"
50cc - Diameter: 1" / Length: 38 3/8"

CF-WT-Set

$31.50 31.50
