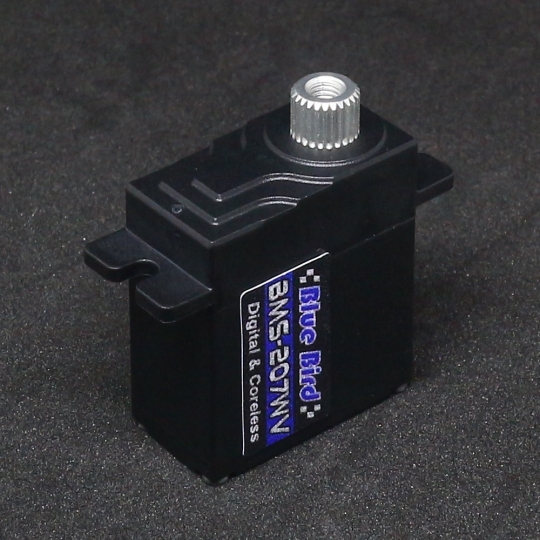

BMS-207WV MINI WIDE VOLTAGE-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS SERVO

Contact UsCustomer Reviews
  0
  5. BMS-207WV MINI WIDE VOLTAGE-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS SERVO
Tariff Information update
more offers

BMS-207WV MINI WIDE VOLTAGE-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS SERVO

Ask a question about this product
Printable version

Share

Options

Our Price:

$29.99
Quantity (26)

Details

Availability 26 in stock
Weight 0.30 lbs
SKU BBR-BMS-207WV
Manufacturer Blue Bird

BMS-207WV MINI WIDE VOLTAGE-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS SERVO

Wide Voltage, compact, and lightweight. The Blue Bird BMS-207HV is a perfect choice for F3K, F3P, DLG, HLG and  F5J models as well as many other applications. Capable of operating on 1S or HV.

APPLICATION / SUITABLE
3D EP Airplane / DLG / HLG / F3K / F3P. Heli/250/450 Class Cyclic, 1/12 On-Road
SPECIFICATIONS
Torque At 3.7V 3.3 kg-cm / 45.8 oz-in
Torque At 6.0V 5.4 kg-cm / 75.0 oz-in
Torque At 7.4V 6.6 kg-cm / 91.7 oz-in
Speed At 3.7V 0.09 sec / 60°
Speed At 6.0V 0.07 sec / 60°
Speed At 7.4V 0.06 sec / 60°
Speed At 8.4V 0.05 sec / 60°



POWER SUPPLY
Operating Voltage Range  3.7V ~ 8.4V ( 3 ~ 6 Cell Ni-MH or 1 ~ 2S LiPo / 2S LiFe )



MICRO SERVO
Control System Digital Controller 12-Bits ( 4096 Steps ) / Frequency：250Hz / Neutral：1520us
Dead Band Width 0.001ms ( 1us )
Frame Rate (Signal repeat rate) 3ms ( Maximum )
Rotating Direction Clockwise / Pulse Traveling 1500 ~ 2100u sec
Operating Travel 90° ( When 1100 ~ 1900 μ sec )



MECHANICAL SPECIFICATIONS
Ball Bearing Dual
Gear All Metal Gears
Motor Premium Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )
Cable Length 150 mm ( 5.9 in )
Connector Universal Connector ( J-Type )



PHYSICAL SPECIFICATIONS
Dimension (mm) 23.2 x 12 x 27.5 mm / 0.91 x 0.47 x 1.08 in
Weight (gram) 17.5 ± 0.5 grams / 0.62 oz







: *
: *
: *
