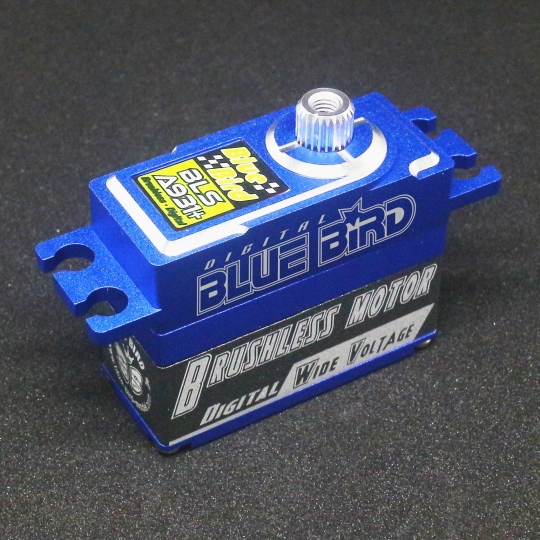

BLS-A931+ HV MINI, DIGITAL, HIGH SPEED, METAL GEAR, BRUSHLESS (New Generation) 12.1kg/168.1oz, 0.04 @8.4V

Contact UsCustomer Reviews
  0
  5. BLS-A931+ HV MINI, DIGITAL, HIGH SPEED, METAL GEAR, BRUSHLESS (New Generation) 12.1kg/168.1oz, 0.04 @8.4V
Tariff Information update
The Redwing RC Office will be operating with reduced staff until 24 Jun. Orders can still be accepted during this time but will take longer than usual to process/ship. If you need the item urgently (moved to top of the list), select Priority express and we will do our best to rush the order out to you as quickly as possible.
more offers

BLS-A931+ HV MINI, DIGITAL, HIGH SPEED, METAL GEAR, BRUSHLESS (New Generation) 12.1kg/168.1oz, 0.04 @8.4V

Ask a question about this product
Printable version

Share

Options

Market Price: $86.99
Our Price:

$81.99
You Save

6%
Quantity (57)

Details

Availability 57 in stock
Weight 0.51 lbs
SKU BBR-BLS-A931+
Manufacturer Blue Bird

BLS-A931+  HV MINI, DIGITAL, HIGH SPEED, METAL GEAR, BRUSHLESS

APPLICATION / SUITABLE
Perfect for 3D Airplane and Jets, Heli 500 Class CCPM cyclic and rudder servo use, EP Aircraft & 1/12th EP Car

SPECIFICATIONS

Torque At 6.0V 9.1 kg-cm / 126.4 oz-in
Torque At 7.4V 11.2 kg-cm / 155.6 oz-in
Torque At 8.0V 12.1 kg-cm / 168.1 oz-in
Speed At 6.0V 0.06 sec / 60°
Speed At 7.4V 0.05 sec / 60°
Speed At 8.0V 0.04 sec / 60°
Protection Mechanism
Soft Start Protection Soft start to a neutral position.
Locked Rotor Protection Stall in 5 sec, output torque goes down.
Temperature Protection Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode.



Power Supply
Operating Voltage Range 4.5V ~ 8.7V ( 2S Li-Fe & HV Li-Poly Compatible )



Control Specification
Control System 32-bits CPU Digital Calculator / AD 12-Bits Resolution ( 4096 Steps )
Frequency：Up to 333Hz & Neutral：1500us or 1520us
Dead Band Width 0.001ms ( 1us )



Mechanical Specifications
Ball Bearing Dual
Gear All Metal Gears
Motor High-Efficiency Brushless Motor
Horn / Gear Spline 25 Teeth



Physical Specifications
Dimension (mm) 35.5 x 15 x 29 mm / 1.4 x 0.59 x 1.14 in
Weight (gram) 35.5 ± 1 grams / 1.25 oz
Product Picture / Dimension Sketch ​






: *
: *
: *
