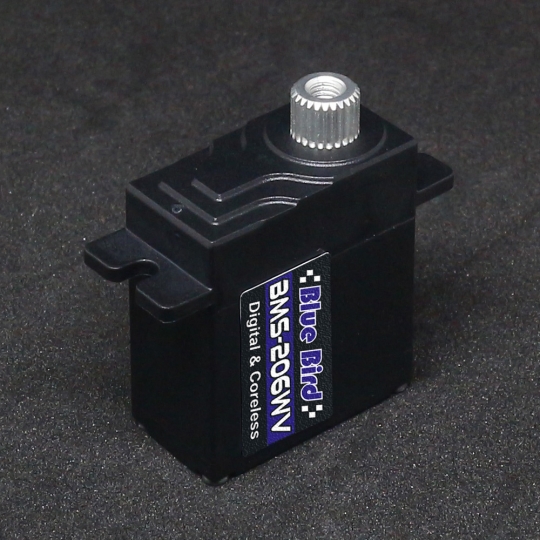

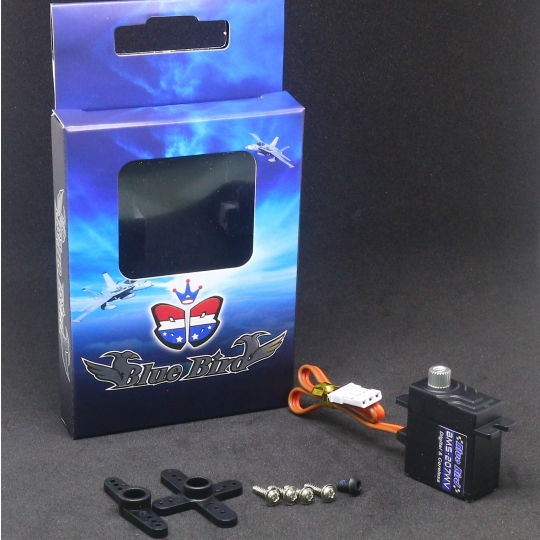

BMS-206WV MINI WIDE VOLTAGE-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS SERVO (4.8kg/66.7oz 0.03sec @8.4V)

Contact UsCustomer Reviews
  0
  5. BMS-206WV MINI WIDE VOLTAGE-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS SERVO (4.8kg/66.7oz 0.03sec @8.4V)
Tariff Information update
more offers

BMS-206WV MINI WIDE VOLTAGE-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS SERVO (4.8kg/66.7oz 0.03sec @8.4V)

Ask a question about this product
Printable version

Share

Options

Our Price:

$29.99
Quantity (16)

Details

Availability 16 in stock
Weight 0.30 lbs
SKU BBR-BMS-206WV
Manufacturer Blue Bird

BMS-206WV MINI WIDE VOLTAGE-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS SERVO  (4.8kg/66.7oz 0.03sec @8.4V)

Wide Voltage, compact, and lightweight. The Blue Bird BMS-206HV is a perfect choice for F3K, F3P, DLG, HLG and  F5J models as well as many other applications. Capable of operating on 1S or HV.

Application
3D Aircraft, F3K, F3P & DLG, HLG, Heli 250/450Class Cyclic or Tail, 1/12th On-Road.



Specifications
Torque At 6.0V 3.2 kg-cm / 44.0 oz-in
Torque At 7.4V 4.1 kg-cm / 56.9 oz-in
Torque At 8.4V 4.8 kg-cm / 66.7 oz-in
Speed At 6.0V 0.05 sec / 60°
Speed At 7.4V 0.04 sec / 60°
Speed At 8.4V 0.03 sec / 60°



Power Supply
Operating Voltage Range 4.8V ~ 8.5V ( 2S Li-Poly / 2S Li-Fe Compatible )



Control Specification
Control System Digital Controller 12-Bits ( 4096 Steps )
Frequency：333Hz / Neutral：1500us or 1520us
Dead Band Width 0.001ms ( 1us )



Mechanical Specifications
Ball Bearing Dual
Gear All Metal Gears
Motor Premium Coreless Motor
Horn / Gear Spline 25 Teeth



Physical Specifications
Dimension (mm) 23 x 12 x 27.5 mm / 0.9 x 0.47 x 1.08 in
Weight (gram) 17.5 ± 0.5 grams / 0.62 oz





: *
: *
: *
