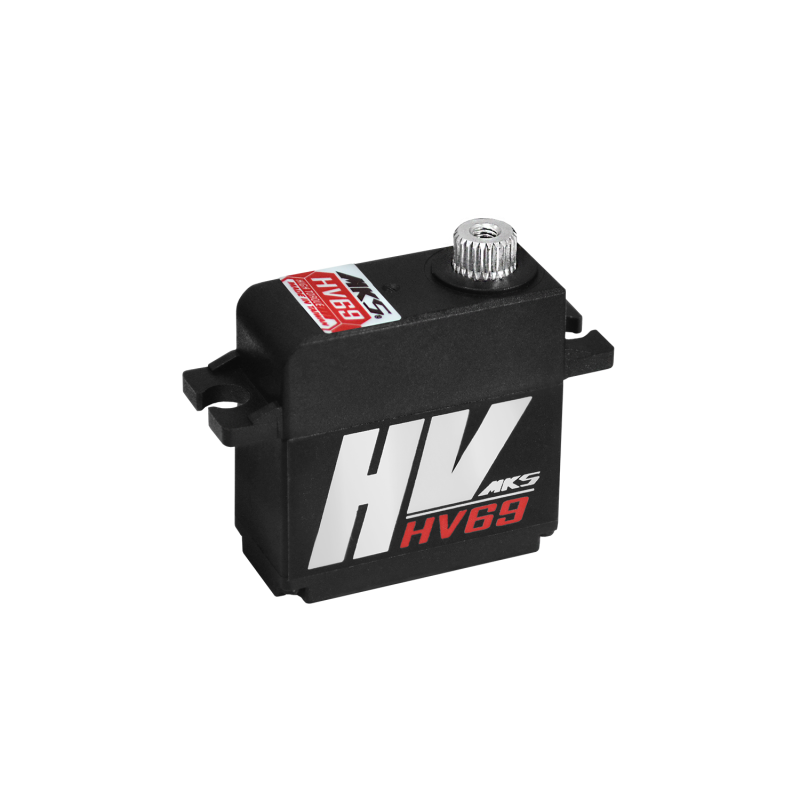

MKS HV69 Digital Super-Torque Micro HV Servo, with Metal Gears

Contact UsCustomer Reviews

MKS HV69 Digital Super-Torque Micro HV Servo, with Metal Gears

Our Price:

$62.50


Quantity

OUT OF STOCK


Availability No items available
Weight 0.20 lbs
SKU MKS-HV69
Manufacturer MKS

MKS HV69 Digital Super-Torque Micro HV Servo, with Metal Gears

Spline Size 6mm 25 Tooth
Dead Band 0.001ms (Default)
Control System +Pulse Width Control
Working Frequence 1520µs / 333Hz
Operating Voltage 3.7 ~ 8.2 V (for 2S ~ 1S LiPo)
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (4.8V) 0.17 sec/60° degrees at no load
Operating Speed (6V) 0.13 sec/60° degrees at no load
Operating Speed (7.4V) 0.11 sec/60° degrees at no load
Operating Speed (8.4V) 0.10 sec/60° degrees at no load
Stall Torque (4.8V) 6.0 kg-cm / 83.3 oz-in
Stall Torque (6V) 7.50 kg/cm (104.2 oz/in)
Stall Torque (7.4V) 9.2 Kg/cm (127.8 oz/in)
Stall Torque (8.4V) 10.2 Kg/cm (141.7 oz/in)
Motor Type Coreless Motor
Potentiometer Drive Direct Drive
Bearing Type 2x Ball bearing
Gear Type Metal Alloy Gear

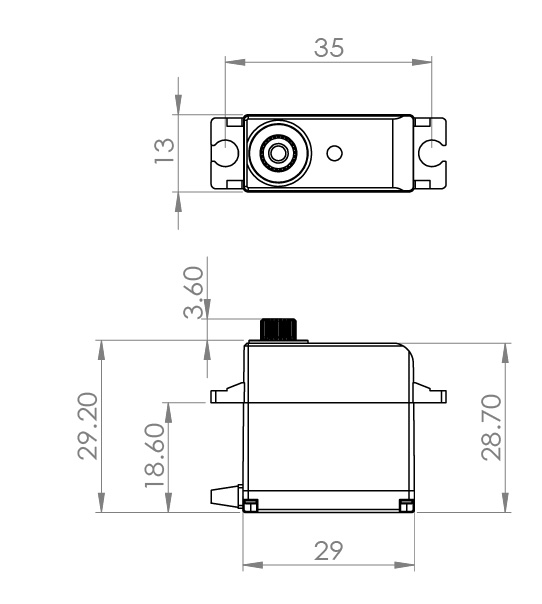

Dimensions 29 x 13 x 28.7 mm
Weight 21 g



: *
: *
: *


Falcon Carbon Fiber Props



Description:

We are proud to be an official retailer for Falcon© Brand Carbon Fiber Props. These high quality props are the real deal- a lightweight and durable wood prop wrapped in carbon fiber weave for extra strength.




Features:

  • Scimitar design for efficiency
  • Sharp tips - thin blades for better performance
  • Made of high quality 3K carbon fiber weave
  • Lightweight for quick spool up
  • Created from high quality European steel molds
  • Pre balanced at the factory (final fine tuning recommended)
  • Beautiful looks, strength and performance


*Falcon Hats are currently out of stock

Falcon Prop Test Chart

FLC-

$56.00

SCORPION TRIBUNUS II 06-120A ESC SBEC

SCORPION TRIBUNUS II 06-120A ESC SBEC

ESC-0020

$249.99

Savox SV-1261 MG Mini Hi Torque High Voltage Digital Servo 0.095sec / 277oz @ 7.4V

Savox SV-1261 MG Mini Hi Torque High Voltage Digital Servo 0.095sec / 277oz @ 7.4V



















































































Description:

Ever go to a restaurant and look at the menu and think to yourself - "there's so many options that all just look so good!" - and have trouble deciding? Well here at Redwing RC our awesome servo collection is very similar! We have a great variety of spectacular servos to choose from so there is something for everyone! But let's introduce yet another great option to consider - the Savox SB-2273.

The Savox SB-2273 servos are a more powerful, SUPER torque, brushless digital servo that can fit every control surface for giant scale aircrafts - while still being super lightweight, 20% lighter than its kind! Sounds great - right?! These servos combine leading edge technology with super high 12 bit resolution and unique steel gears.

The brushless motor promises the great high speed, high torque performance that is extremely efficient! Savox has used this smart technology in the SB-2273's to 100% GUARANTEE that these servos won't suck the life out of your battery by only using enough juice to power that particular task.

All in all - these servos are a great choice for your RC plane. Order yours now!



Specifications:

  • Torque:
    • 319.4 oz/in at 4.8V
    • 388.8 oz/in at 6V

  • Speed:
    • .12 sec at 4.8V
    • .095 sec at 6V

  • Voltage: 4.8V to 6V
  • Weight: 2.4 oz (69g)
  • Size: 1.58 x .79 x 1.51 in (40.3 x 20.2 x 38.5 mm)

  • Gear Type - Unique Steel
  • Case - Full Aluminum
  • Bearing - dual ball bearings
  • Frequency - 250-333hz
  • Output Shaft - 25 Tooth Spline







GET YOURS TODAY!







SAV-SV-1261-MG

$89.99
