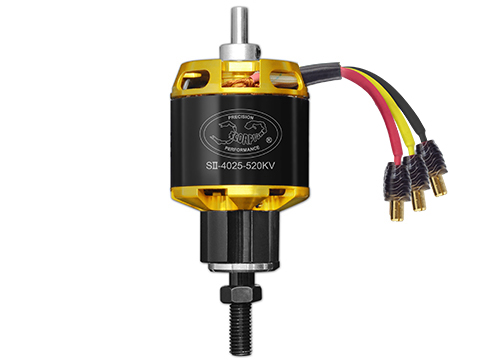

SCORPION SII-4025-520KV - FOR 67-68"AEROBATIC AIRPLANES (6S)

Contact UsCustomer Reviews

SCORPION SII-4025-520KV - FOR 67-68"AEROBATIC AIRPLANES (6S)

Our Price:

$209.99


Quantity

OUT OF STOCK


Availability No items available
Weight 3.00 lbs
SKU MTR-0143
Manufacturer Scorpion

Specifications

This Motor is perfect for Aerobatic Airplanes in the 67-68" range running on a 6s battery, or sport planes in the 8-15lb range.

Recommended Setup -
Motor - SII-4025-520kv
ESC - Tribunus II 06-120A SBEC
Battery - 6s 3500-5000mah
Prop - 17x10E , 18x8E


Stator Diameter 40.0 mm (1.575 in)
Stator Thickness 25.0 mm (0.954 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 11 Turn Delta
Motor Wire 26-Strand 0.25mm
Motor Kv 520 RPM / Volt
No-Load Current (Io) @ 10 v 1.40 Amps
Motor Resistance (Rm) 0.016 Ohms
Max Continuous Current 100 Amps
Max Continuous Power 2000 Watts
Weight 353 Grams (11.96 oz)
Outside Diameter 48.9 mm (1.925 in)
Shaft Diameter 5.98 mm (0.235 in)
Body Length 54.1 mm (2.129 in)
Overall Shaft Length 85 mm (3.346 in)
Max Lipo Cell 6s
Motor Timing 5deg
Drive Frequency 8kHz

Weight including packaging

735g

Data Chart

VIEW SCORPION SII-4025-520KV DATA CHART

Full Dimension

VIEW SCORPION SII-4025-520KV FULL DIMENSIOn



: *
: *
: *
