3S Indoor Foamie Power Pack 1914-1100KV Brushless Motor, ESC, and Prop Adapter Combo

Contact UsCustomer Reviews

3S Indoor Foamie Power Pack 1914-1100KV Brushless Motor, ESC, and Prop Adapter Combo

Our Price:

$39.99


Quantity (3)

Availability 3 in stock
Weight 1.00 lbs
SKU DW-MM1914A-P2

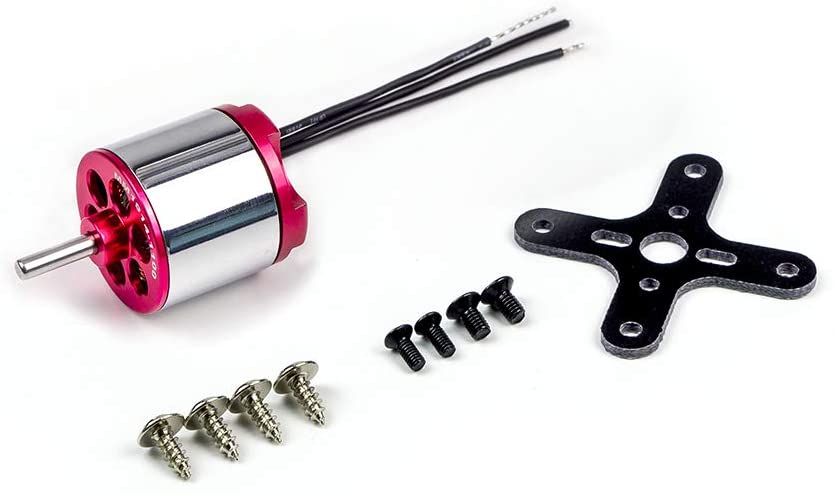

This 3S Power Pack (Brushless Motor, ESC, Prop Adpter Combo) includes a high-end ADH 300L Pro Brushless Motor that combines ultra-high power and super efficient design to deliver outstanding performance. Ideal motor for F3P and large Indoor electric planes. This is a powerful motor that can provide thrust for larger foamies less than 600g.
Weighing about 39grams and producing 545 grams (19.2 oz) of thrust, this 3S motor is the next must have item for your foamie or indoor flyer.

  • Type:.........................1914-1100KV
  • KV(rpms per volt):.... 1100
  • Dimension: 23x27mm
  • Diameter of shaft: 3.0mm
  • Length of shaft: 13mm
  • Voltage: 7.2V~11.1v, 2S~3s Lipo
  • Max Load: 15A
  • Max. Power: 170W
  • Max. Thrust : about 545g work with 10x4.7 @ 11.1V
  • Cells:......................... 2-3S Li-Po
  • Weight; 38g (not including mount)
  • Brushless ESC:.........20A (Included)
  • Suggested Propeller: 8X4.3, 9X4.7, 10X4.7 (3.0mm Prop Adapter included)

Features:

  • Extremely low internal resistance
  • Super smooth and accurate throttle linearity

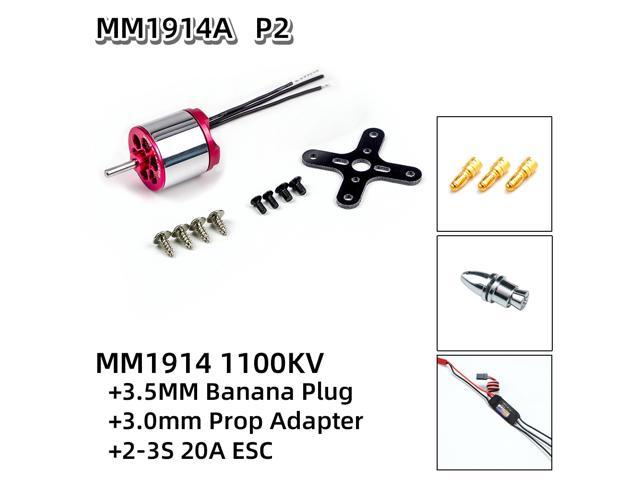

  • Power pack includes Motor, ESC, Prop adapter and 3.5mm Banana plug

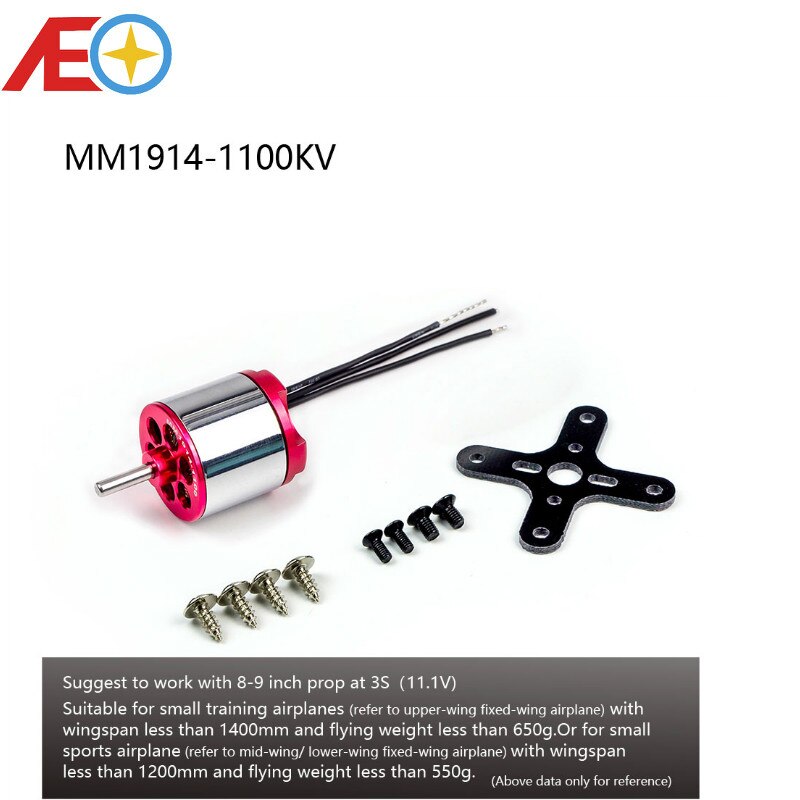

  • Applicability: Small Trainer 1400mm or less weighing 650g or less or Sport plane 1200mm or less weighing 550g or less

ADH300L

: *
: *
: *


Messerschmitt BF-109 Micro RTF Airplane w/PASS System

Messerschmitt Bf 109 Micro RTF Airplane w/PASS System

RGRA1304

$109.99

Lemon Rx DSMP SATELLITE (DSMX/DSM2 COMPATIBLE)

Lemon Rx DSMP SATELLITE (DSMX/DSM2 COMPATIBLE)































Description:

Lemon Rx DSMX Compatible 6-Channel Receiver



Type: DSMX Compatible Full Range Receiver
Number of Channel: 6
Modulation: DSMX Compatible (Also DSM2 backward Compatible)
Band: 2.4 GHz
Dimension: 25(L) x 18(W) x 11(H)  mm
Weight: 4.5 grams
Voltage Range: 3.45 - 8.4 V



Highlight
- FailSafe for all channels via press of a button
- DSMX Satellite port



Understanding the receiver



Setup Instruction

Binding

  1. Plug bind plug to the receiver.
  2. Provide power to the unit. LED flashes quickly.
  3. Enable bind mode in transmitter and ensure distance separation of 2 meters from receiver. Solid LED light means binding is completed.
  4. 4) Remove bind plug.

Failsafe Enable (Video showing 10-Channel receiver)

  1. Plug bind plug to the receiver.
  2. Provide power to the unit.
  3. Plug the side pushbutton for memorize current position in Failsafe mode.
  4. Green light will turn on at the bottom of the receiver to indicate Failsafe is successfully enabled.
  5. Remove bind plug

Failsafe Disable

  1. Rebind the receiver without pressing the side pushbutton will disable the Failsafe mode.
  2. Green light off indicates Failsafe disabled.




LM-0037A

$24.99

BMS-M52C V2 MAG SENSOR HELICAL GEAR, HV-DIGITAL, MEGA TORQUE, HIGH SPEED, CORELESS +Servo Arm (61.5kg/854.2oz, 0.09sec at 8.4V) SR/SXR COMPATIBLE

BMS-M52C V2 MAG SENSOR HELICAL GEAR, HV-DIGITAL, MEGA TORQUE, HIGH SPEED, CORELESS +Servo Arm (61.5kg/854.2oz, 0.09sec at 8.4V) SR/SXR COMPATIBLE

BBR-BMS-M52C

$107.99
