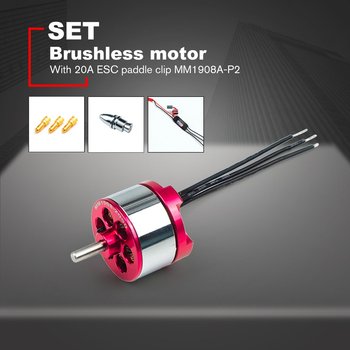

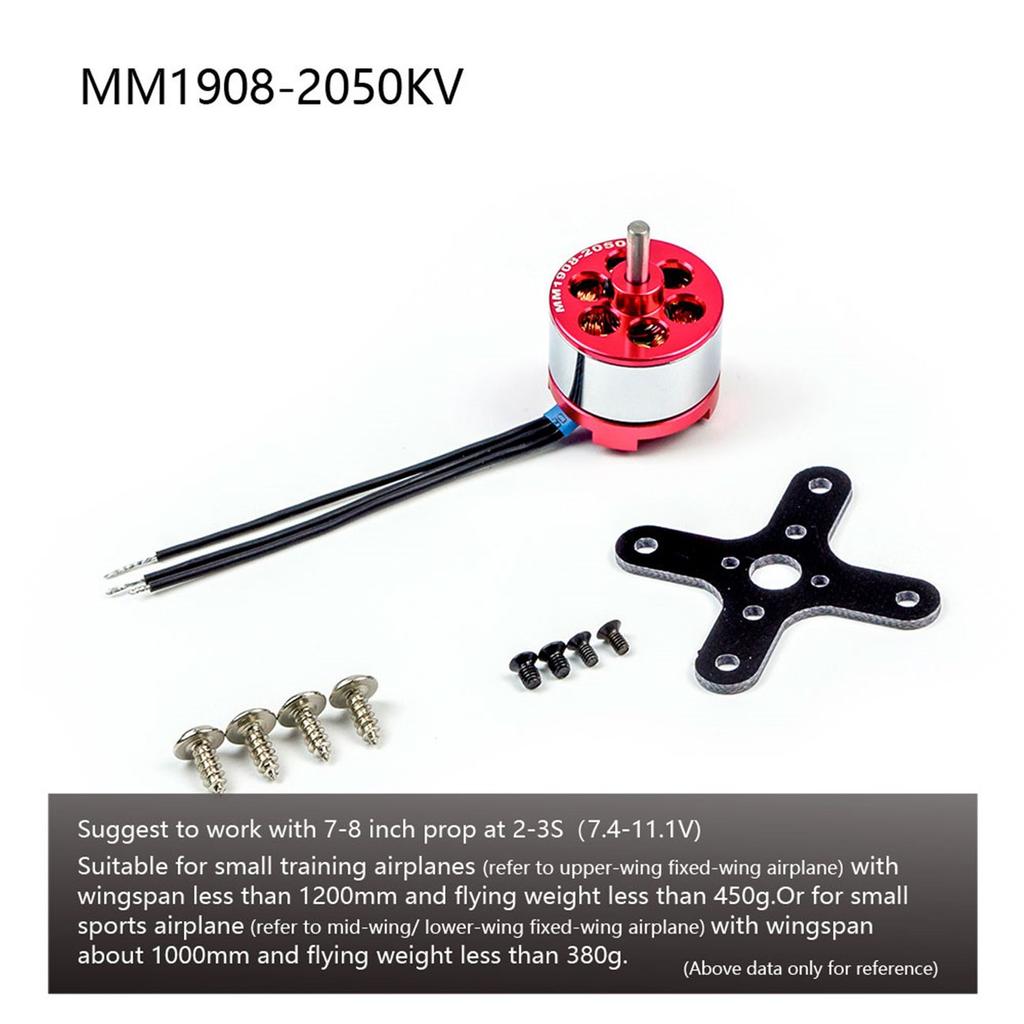

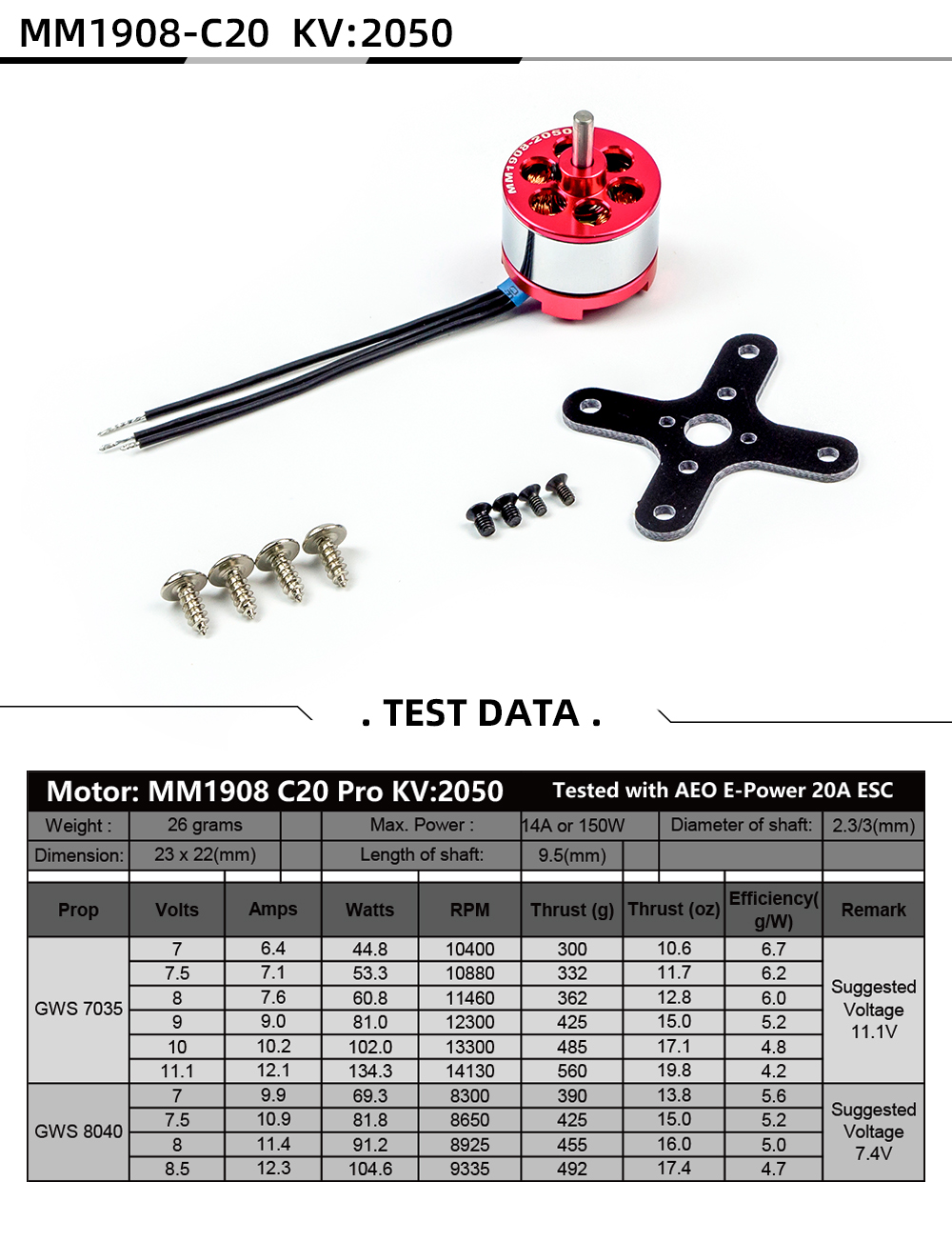

3S Indoor Foamie Power Pack 1908-2050KV Brushless Motor, ESC, and Prop Adapter Combo

Power HD 1370A - Micro Servo - 0.6 kg (8.3 oz/in), .010/sec - 3.7g

The Power-HD DSM44 digital servo is a micro servo with digital control electronics for increased performance. Just like the Power-HD DSP33 ,the DSM44 is also very light and ranks as the secont lightest servo at RedwingRC- weighing only slightly over 6g!!! In the DSM44, the output shaft is supported by a ball bearing for decreased friction, and another great feature is that most of the gears are metal for increased durability! The lead is terminated with a Futaba-compatible standard “JR”-style connector. Servo horns and associated hardware are included.

It is important to note that stalling or back-driving this servo can strip its gears.



Specifications:

• Torque:
  16.66 oz/in at 4.8V (1.2 kg/cm)
  22.21 oz/in at 6V (1.6 kg/cm)

• Speed:
  .09 sec at 4.8V
  .07 sec at 6V

• Voltage: 4.8v to 6v
• Weight: .24oz (6.75 g)
• Size: .68 x .87 x 1.06in (22 x 8.7 x 27mm

• Digital
• Lead Length: 160 mm
• Storage Temperature: -20℃~60℃
• Operating Temperature: -10℃~50℃
• Hardware included
• Suitable for F3P/EPP/KT Airplanes

Extreme RRS--16 CH High Power Expander

Welcome to the world’s first Automatic Intelligent Servo Matching System (ISMS)

Intellimatch is the result of 2 years of research and development, is designed to take the worry out of servo matching and gives you the maximum power, smoothest response and increased life from your servos.

If you have built giant scale models before with multi servo control surfaces then I am sure you will be familiar with the process of manually matching the servos. You generally match servos on 2 end points and maybe a center point. That’s a total of only 3 matching points. There is no way 3 points will accurately match your servos. Also, you have to adjust each servo until minimal buzz is heard or you might use an ammeter to minimize current draw. Throw that idea away...

With the Booma RC Intellimatch you say goodbye to traditional methods of servo matching. The Intellimatch system automatically matches servos on 100 points through the servo sweep range. That is 100 points not just the traditional 2 or 3. Intellimatch further adds smoother operation by reading the closest 2 points from the servos current position and then interpolates between the 2 selected points to a resolution of 8192 steps. 8192 step resolution is the highest resolution available today.

The IM14 Intellimatch unit is designed to match 1 set of up to 4 servos. An example IM14 usage might be up to 4 rudder or ailerons servos

Read on for the full list of features

Model Example 1 - 100cc Scale Aero Model:

-2 Aileron Servos per aileron

-1 Elevator Servo per elevator

-2 Rudder servos

Suggested Power Bus Intellimatch Accessories

-2 x IM22 = 1 x IM22 for Ailerons and 1 x IM22 for Elevators

Model Example 2 - 150cc Scale Aero Model:

-3 Aileron Servos per aileron

-2 Elevator Servo per elevator

-3 Rudder servos

Suggested Power Bus Intellimatch Accessories:

-1 x IM22 = 1 x IM22 for Elevators

-2 x IM14 = for Ailerons

-1 x IM14 = for Rudder

Model Example 3 - Large Jet:

-2 Aileron Servos per aileron

-2 Flap Servos

-1 Elevator Servo per elevator

-2 Rudder servos

Suggested Power Bus Intellimatch Accessories:

-1 x IM22 = for right side Ailerons and Flaps

-1 x IM22 = for left side Ailerons and Flaps

-1 x IM22 = for Rudder

Specs:

• 32 bit Processor for the highest speed and resolution in the industry

• Automatic matching of up to 4 servos on a single channel

• 100 matched point across the servo sweep range

• 82 step real time interpolation between the 100 matched points

• PWM resolution of up to 8200 steps

• Dual LED indication for programming feedback

• Recommended battery chemistry - Life (2 cells), LiPo (2 cells), Lion (2 cells), NiCd(5cells),Nimh(5 cells)

• Maximum input voltage 10 volts

• Minimum input voltage 5 volts

• Compatible with all receivers and Power Distribution systems

• Works with Advanced Radio AR1232 and AR824. Also compatible with all other receiver and Power Distribution systems

• Dual fail safe arming with the supplied arming plug

• On board Flash storage - 100 year data retention

• Weight is only 12 grams

• Dimensions 49mm x 23mm (3.5 x 2.5 inches)

Raptor H650 Sea Land Air 490mm Wingspan 2.4GHz 6CH Smart Balance EPP RC

Do you feel the need for speed? Check out the Dynam Meteor V2. This is a High Speed 70mm EDF Sport Jet that features retracts! How cool is that?! The Meteor V2 is constructed with EPO crash resilient foam and it is pre-painted saving you time. If that's not enough, all servos, 70mm Fan, and the 60Amp ESC are factory pre-installed. This airplane is designed for High-Speed flying which is made possible with a powerful Brushless Electric Ducted-Fan. The Fan Unit is is very well constructed for High-Performance flying. In case you were wondering, this model is absolutely one of the fastest EPO EDF jet on the market.

Key Features:

• Powerful 70mm EDF fan unit and motor
• 60A Brushless ESC with Switch-Mode BEC
• retractable landing gear
• Easy to build.
• SUPER FAST

Specifications:
