20cc MXS-R 64" V2 ARF (Quick Release Wings and CF Reinforced)

Contact UsCustomer Reviews

20cc MXS-R 64" V2 ARF (Quick Release Wings and CF Reinforced)

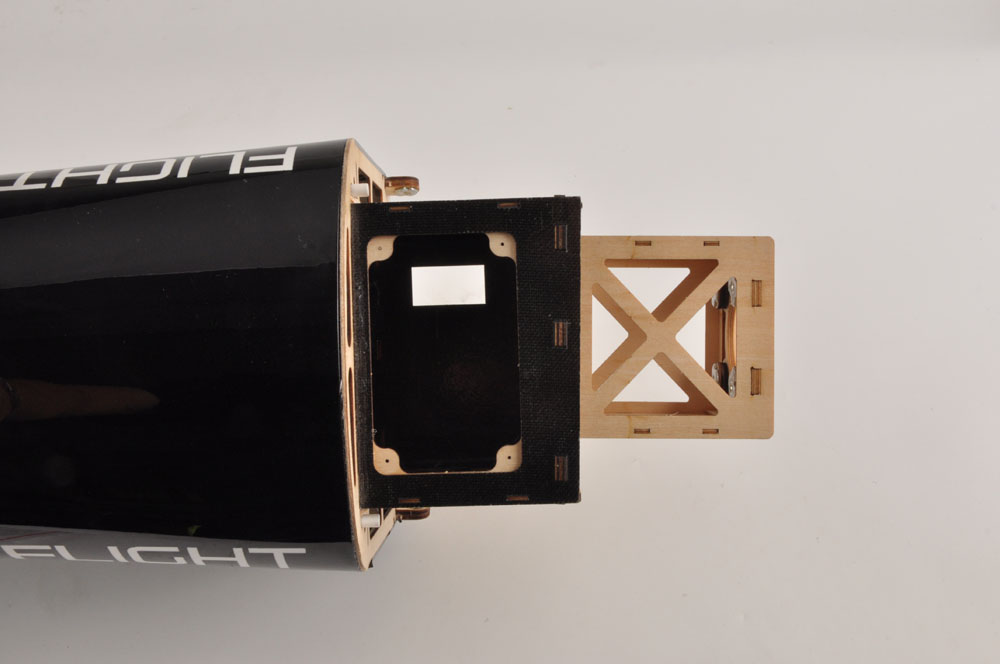

For Electric motor mount
Gas engine setup
Electric motor setup
Our Price:

$389.99

Quantity (1)

Availability 1 in stock
Weight 65.00 lbs
SKU 20-MXSR-Black

Here is the V2 upgrade of the 20cc MXS-R plane. The upgrades include carbon fiber reinforcments through out the plane and the addition of the quick release wing latching mechanism. This ARF can be flown with a 20cc gas engine or electric motor and comes with the wood kit to add on the motor mount for an electric setup.

Wingspan: 64in/1625mm
Wing area: 50.1sq.dm
Length: 59in/1500mm
Weight: 2368g
Engine: 20cc Gas (not included)
Servo: 6channels 6servos (not included)

Built to fly 3D maneuvers amazing, and STILL land like a baby

Shipping Flat Rate $60 in the lower 48 states. $30 Container Freight charge has been added to this item due to excessive Container prices!

We DO ship our planes internationally! Please contact us at [email protected] with your location for more specific cost.

: *
: *
: *


DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

  • Stock Number: DLEG0020
  • Displacement: 20 cc (1.22 cu in)
  • Bore: 1.3 in (32 mm)
  • Stroke: 1.0 in (25 mm)
  • Weight: 28.9 oz (820 g)
  • RPM Range: 1,750-9,000
  • Output: 2.5 hp @ 9,000 rpm
  • Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
  • Suggested Propellers: 16x8 17x6
  • Suggested Break-in Prop: 16x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 10.5:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-20

$249.99

Miracle RC Aluminum Spinners (Spinner)

Description:

All NEW design! These Miracle aluminum spinners have back plates which have extensive lightening, the spinners are cut for a large 3d style prop, and the back plates are drilled for multiple engine sizes!

FOR ENGINE SIZE:

  • 2.5" Spinner : DLE 20, Enya FS120, All YS Four Strokes and any that match these
  • 2.5" Spinner : DLE 20, Enya FS120, All YS Four Strokes and any that match these
  • 3" Spinner: DLE 30, DLE 35RA, DLE 55, DLE 55RA, MLD 28, DA 50, 56, 58, and EVO 54 (and any other engines that fit these templates
  • 3.5" DLE 30, DLE 35RA, DLE 55, DLE 55RA, MLD 28, DA 50, 56, 58, and EVO 54 (and any other engines that fit these templates

    SPECS:
  • 2.5": Height 2.7", weight 2.7oz, includes 30mm bolt.
  • 3": Height - 3.1", weight 3.2 oz, includes 55mm bolt.
  • 3.5" : Height 3.7", weight 3.6oz, includes 60mm bolt.





Miracle RC Aluminum Spinners are high quality CNC Machined spinners. Very light, with a lightened back plate included. Very accurate, very beautiful, and a great value!



  • 2.5" - $16.95
  • 3" - $20.95
  • 3.5" - $27.95
  • 3.75"- $31.95
  • 4.0" - $38.95
  • 4.5" - $44.95
  • 5" - $50.95

MRC-Spinner

$21.95

Painted Redwing RC 3d Propeller - White & Red

Description:
SAME GREAT PROPS JUST GOT BETTER! Brand new design to make your plane even more stylish - White with Red Tips!

These new, advanced designed props have been brought in by Redwing RC to compliment our line of planes. With advanced engineering, they are high efficient, lightweight and balance easily. These props are made with 3d and precision flying in mind. Made of beechwood, the sharp tips and thin design allow you to squeeze maximum efficeincy out of your engine. These properllors are the same in design as other more expensive props, but at significant savings. Close to 50% less. Buy several... you won't want to be without one if you break a prop!



Features:

  • Scimitar design for efficiency
  • Sharp tips - thin blades for better performance
  • Made of lightweight, high quality, beechwood
  • Beautiful looks, strength and performance
  • 24x9 - $29.99
  • 25x9 - $33.99
  • 27x10 - $42.99
  • 27x11 - $42.99
  • 28x10 - $49.99
  • 28x12 - $49.99
  • 29x10 - $54.99
  • -->

RWT-Prop

$12.99
