The Scorpion A - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. Unlike most motors on the market, who choose one motor / magnet design, and then only change the windings to achieve different KV's (which usually provides one KV range with good results, and average results for the other KV ranges). On the A - series motors we looked at each kv / power range individually. We choose the most optimal magnetic design for each individual kv and implemented it, so that each KV version has the best possible Performance and Efficiency .

The performance and efficiency results are unlike anything we have seen before!

The A-3017 series was designed specifically for 48" Acrobatic Airplanes, or other Sport / UAV airplanes requiring up to 962w of power. Also known as the 30-32E size. For the A-3017 we offer 3 x kv ranges of 560 / 600 / 920 for various applications and various voltage ranges. The 560kv being specifically for smoother sport flying applications, or UAV applications.

Recommended Prop Selection :

12x6 / 12x7 = Efficiency

13x6 = For Standard Flight (not 3D)

13x6.5 / 14x6 = High Alt

Recommended ESC -: Tribunus 06-80A ESC SBEC

Acrobatic Weight Range (560kv) -: 1.3kg - 1.9kg (46oz - 67oz)

Sport / UAV (single engine) Weight Range (560kv): - 2.3kg - 4.6kg (81.1oz - 162oz)

Scorpion Power System - A-3017 {Official Promo Video}

Specifications

Weight including packaging

250g

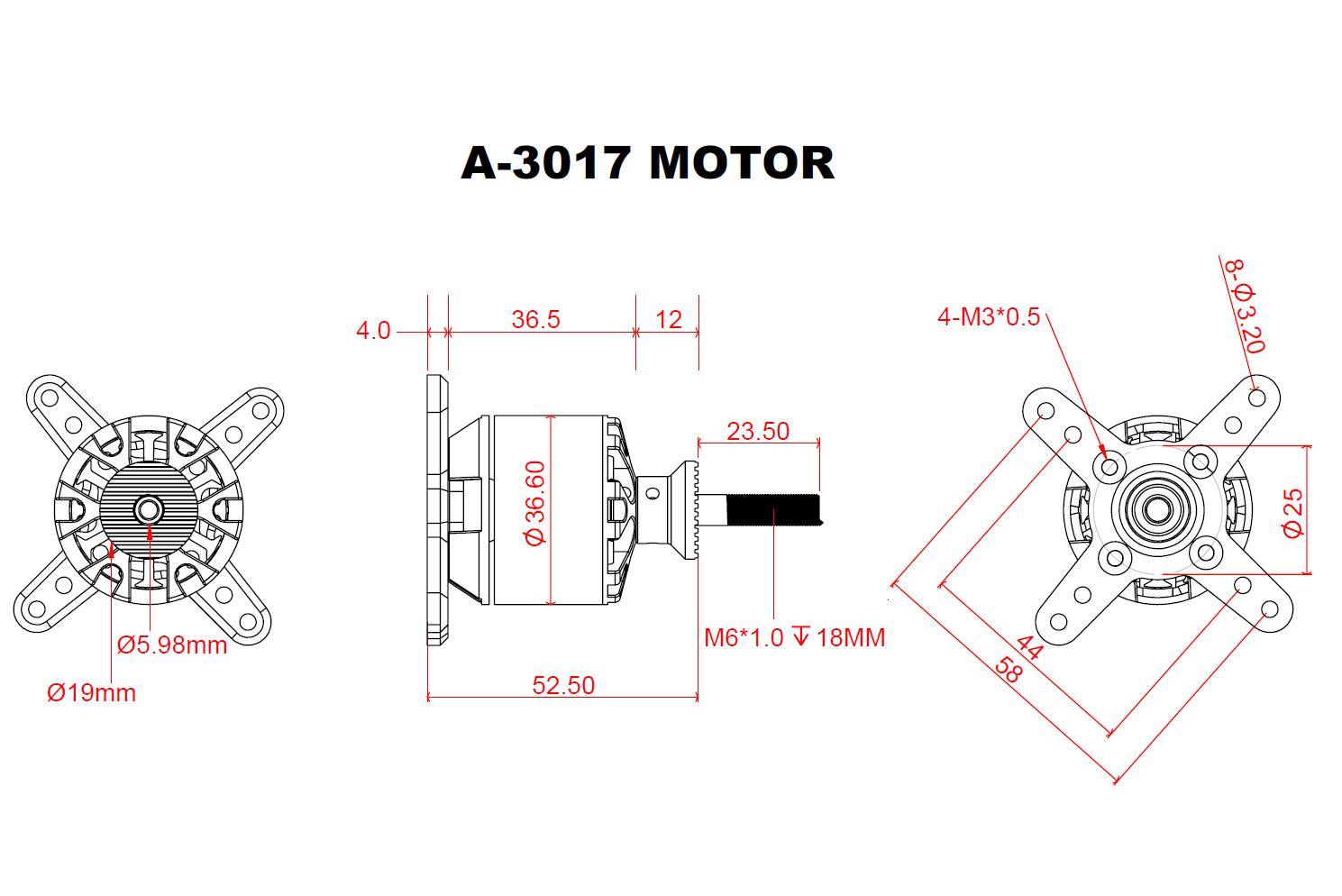

Full Dimension

View Scorpion A-3017-560kv Full Dimension
