Extra 330 1000mm (39.4") Wingspan Balsa Wood Laser Cut Aircraft (New 2024)

Contact UsCustomer Reviews
  0
  4. Extra 330 1000mm (39.4") Wingspan Balsa Wood Laser Cut Aircraft (New 2024)
Tariff Information update
more offers

Extra 330 1000mm (39.4") Wingspan Balsa Wood Laser Cut Aircraft (New 2024)

Ask a question about this product
Printable version

Share

Options

Our Price:

$127.99
Optional Versions
Quantity (2)

Details

Availability 2 in stock
Weight 5.00 lbs
SKU DW-X01

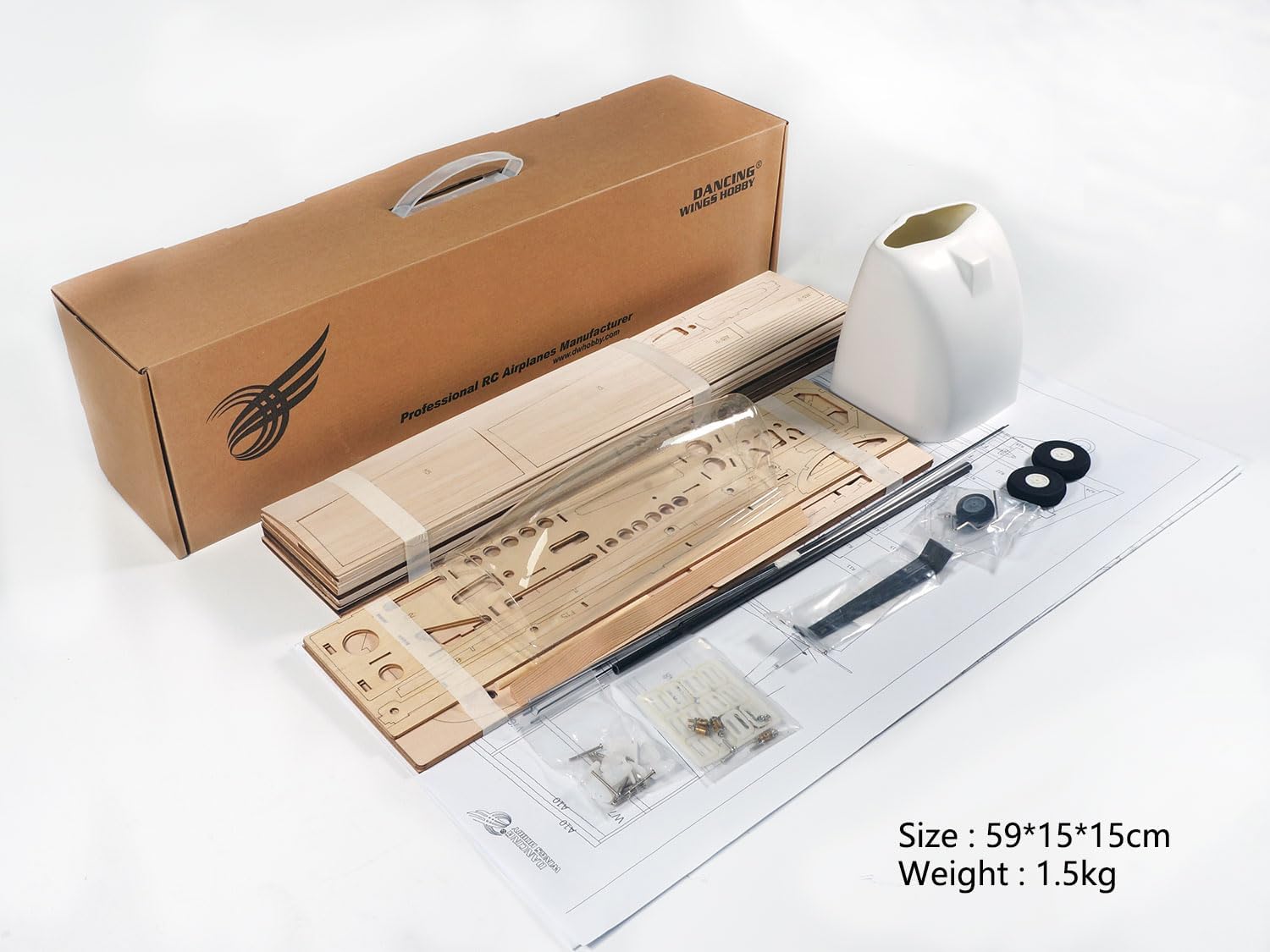

Extra 330 1000mm (39.4") Wingspan Balsa Wood Laser Cut Aircraft Kit (New 2024)

This is the 2024 version of the Extra 330 which is the airfame used for the Extra 330 39" ARF. With some improvement to the upper wing airfoil, slight weight reduction and more robust power system we have perfected the previous Extra 330! Watch the video showing the quality of the laser cut parts and easy construction. Then enjoy a superb flight demonstration!

For Pilots that do not have the time to build this model from a kit see the completed Extra 330 ARF (Almost Ready to Fly) which has all the peices already assembled and pre-covered so all that is required is to assemble the major peices and add the electronics to fly!

Features:

  • Accurate laser cut parts for easy construction
  • Premium balsa and plywood materials
  • Authentic functional landing gear
  • Molded plastic cowl and windscreen
  • Equipped with comprehensive hardware pack
  • 1000mm wingspan for good stability
  • Suitable for beginners to improve flying skills
  • Enjoy easy assemble process and fun stable flight

Specification:

  • Wingspan: 1000mm
  • Fuselage Length: 900mm
  • Flying Weight: 760g

Suggested Power System:
Note: KIT version does not included any electronic device.
Optional Kit versions available (make selection from dropdown above):
  • KIT only (no electronics)
  • KIT + Film (2M Blue+2M White)
  • KIT+Motor+ESC+Servos+Prop
  • KIT+Motor+ESC+Servo+Prop+Film pack

$20 Flat Shipping US only--contact us at [email protected] to calculate international shipping cost



Below is the finished EXTRA 330 with covering applied:or you can purchase the Extra 330 ARF kit pre-built and covered as below.
















: *
: *
: *

Micro Deans Connectors

Micro Deans Connectors

Description:
5 Pairs of Deans Style Connectors

Nylon T-connectors. These are VERY similar to Dean's style T connectors, and are fully compatible with Deans connectors.
Pack includes 5 male and 5 female connectors.



These connectors are made from Nylon, making them very tough and difficult to melt, even with the worst of soldering skills.






Features:

  • Durable nylon connectors
  • Compatible with Deans large connectors
  • Easy to solder
  • Positive/negative can only connect one way ensuring proper polarity






PRICE FOR PACKS OF 5 PAIR:





EX-Micro

$4.95

EPP Edge 540 Extreme Sport 3D Airplane 43.3" (1100MM) Wingspan

EPP Edge 540 Extreme Sport 3D Airplane 43.3" (1100MM) Wingspan

EPP Edge 540 3D Airplane 43.3" (1100MM) Wingspan

DW-E3704-EPP-Edge

$79.99

Lemon RX DSMP 7-CH RECEIVER (DSMX/DSM2 COMPATIBLE)

Lemon RX DSMP 7-CH RECEIVER (DSMX/DSM2 COMPATIBLE)

Lemon RX DSMP 7-CH RECEIVER (DSMX/DSM2 COMPATIBLE)



















Description:

Lemon Rx DSMX Compatible 6-Channel Receiver + Lemon DSMX Compatible Satellite



Type: DSMX Compatible Full Range Receiver
Number of Channel: 6
Modulation: DSMX Compatible (Also DSM2 backward Compatible)
Band: 2.4 GHz
Dimension: 25(L) x 18(W) x 11(H)  mm
Weight: 4.5 grams + 2.5 grams
Voltage Range: 3.45 - 8.4 V



Highlight
- FailSafe for all channels via press of a button
- DSMX Satellite port



Understanding the receiver



Setup Instruction

Binding

  1. Plug bind plug to the receiver.
  2. Provide power to the unit. LED flashes quickly.
  3. Enable bind mode in transmitter and ensure distance separation of 2 meters from receiver. Solid LED light means binding is completed.
  4. Remove bind plug.

Setting Failsafe

  1. Start by binding the receiver to the transmitter in the normal way and proceed as follows to set failsafe
  2. Ensure that transmitter and receiver are turned on.
  3. Insert bind plug into the receiver (Note: to set failsafe, bind plug is applied only when the receiver is turned on).
  4. Set transmitter controls to the desired failsafe positions.
  5. Press the side pushbutton to memorize failsafe settings.
  6. Observe that the green light at the end of the receiver turns on to indicate failsafe is set. (Repeat step 4 will cause the LED to turn off which means failsafe is disabled).
  7. Remove bind plug.
  8. Disconnect the power for at least 2 seconds and then reconnect the power again. Test failsafe by turning off the transmitter.







LM-0081

$21.99
