Metal EVP Power System 4D Electric Variable Pitch System w/ Brushless Motor Combo For F3P F3C Fixed-Wing 4D airplane (920-2050KV)

Ask a question about this product

Printable version

Options

Our Price:

$64.99

EVP Systems

Quantity (3)

Notify me when back in stock

Details


Availability	3 in stock
Weight	1.00 lbs
SKU	DW-MEVP1908-2050kv

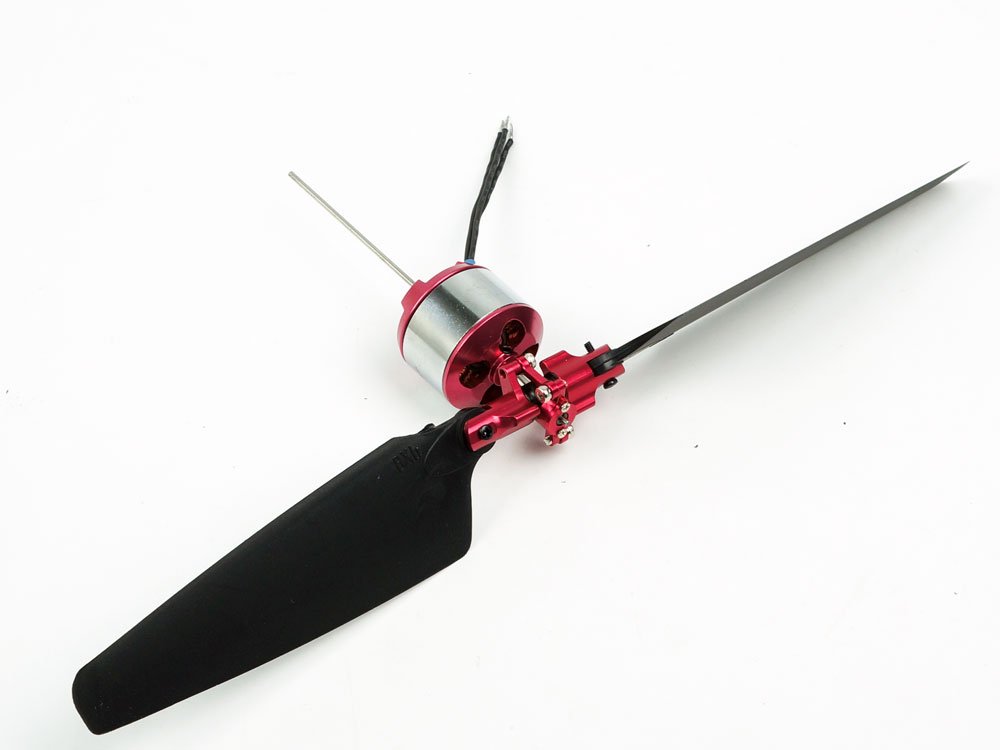

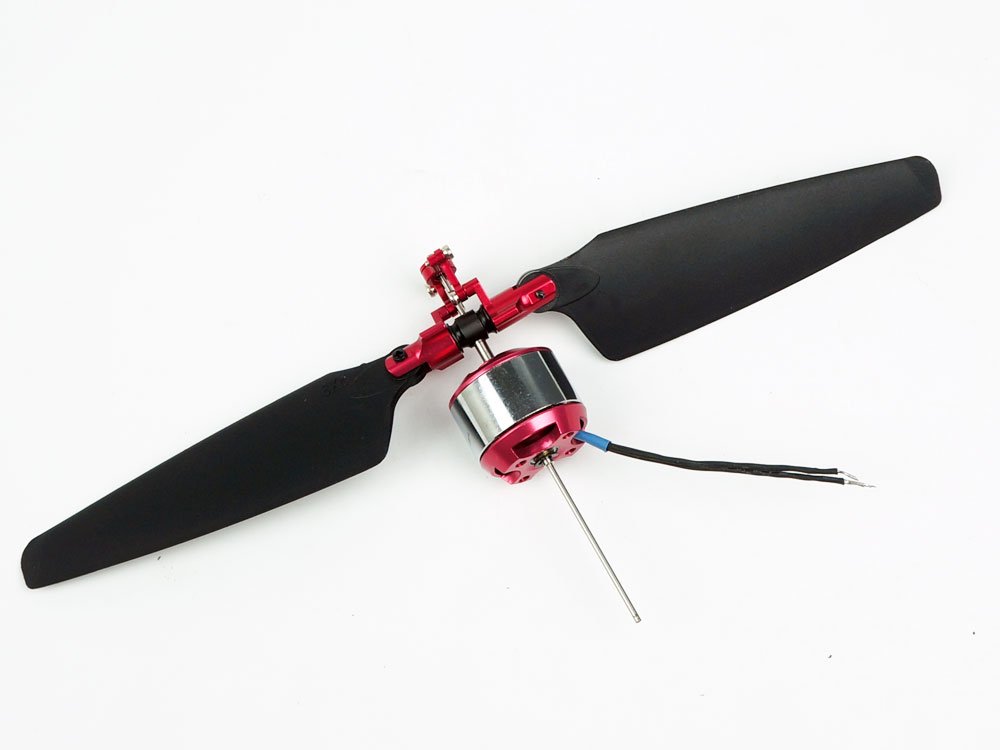

Take your 3D plane to the next level with these Metal EVP systems (motor with variable pitch prop assembly). Utilizing the pitch and throttle curve features on your transmitter, using helicopter mode, you can unlock the extreme flight potential of your 3D airplane. Adding variable pitch allows you to slow your model in vertical downlines, or go full negative pitch and fly backwards! The new EVP System is specially designed for experienced pilots to enjoy 4D flight. Add the EVP system to your EPP/EPO/Depron 3D Airplane and watch it turn into a 4D aerobatic show! Designed for F3P or F3C mini 3D/4D models allowing pilots to perform 4D maneuvers!

Features:

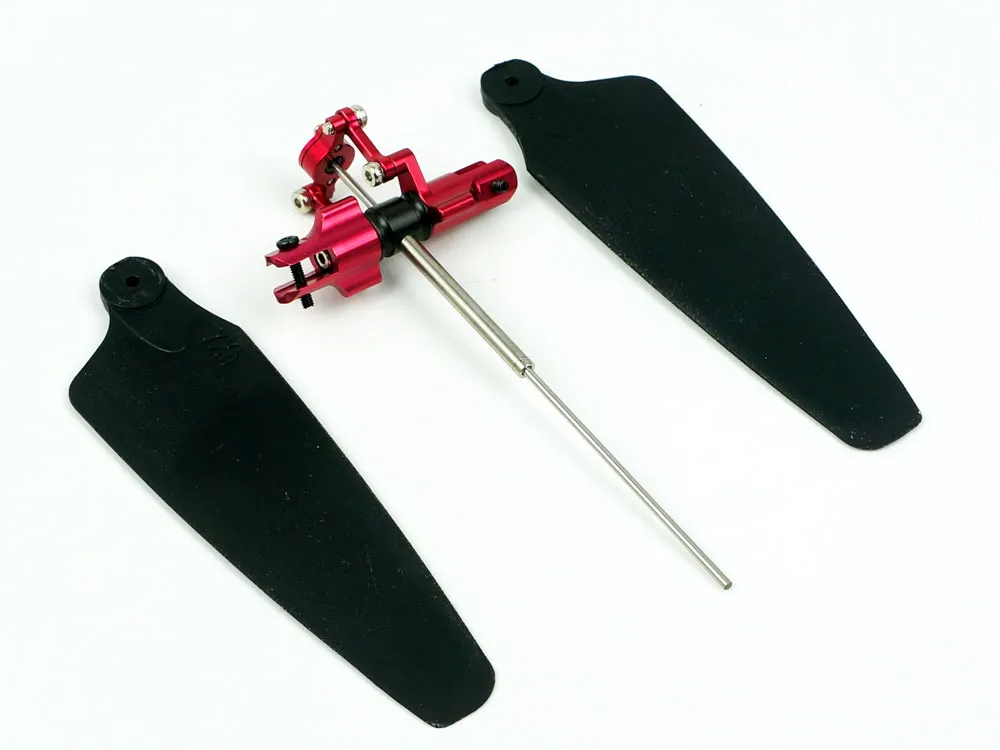

Motor and variable pitch prop assembly
Includes 7-9" diameter blades
Easy setup, perfect for our RedwingRC profile 3D foamies (just match the motor)

Available systems:

MEVP1908=Metal EVP 1908 motor with 7inch Prop (2050KV) 45g
MEVP2212=Metal EVP 2212 motor with 8inch Prop (1100KV) 65g
MEVP2216=Metal EVP 2216 motor with 9inch Prop（(920KV) 80g

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.

Download DLE 20 Manual

Specifications:

Stock Number: DLEG0020
Displacement: 20 cc (1.22 cu in)
Bore: 1.3 in (32 mm)
Stroke: 1.0 in (25 mm)
Weight: 28.9 oz (820 g)
RPM Range: 1,750-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
Suggested Propellers: 16x8 17x6
Suggested Break-in Prop: 16x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 10.5:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)

DLE-20

$279.99 279.99

SmartDesign V3 "Trouble Free" Tail Wheel Assembly

Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc

Features:
