RCGF 70CC Twin Stinger Gas Engine (with Starter)

Ask a question about this product
Printable version

Share

Options

Market Price: $699.99
Our Price:

$659.99
You Save

6%
Quantity (1)

Details

Availability 1 in stock
Weight 5.00 lbs
SKU RCGF-70cc-Twin-with starter
Manufacturer RCGF Stinger Engines

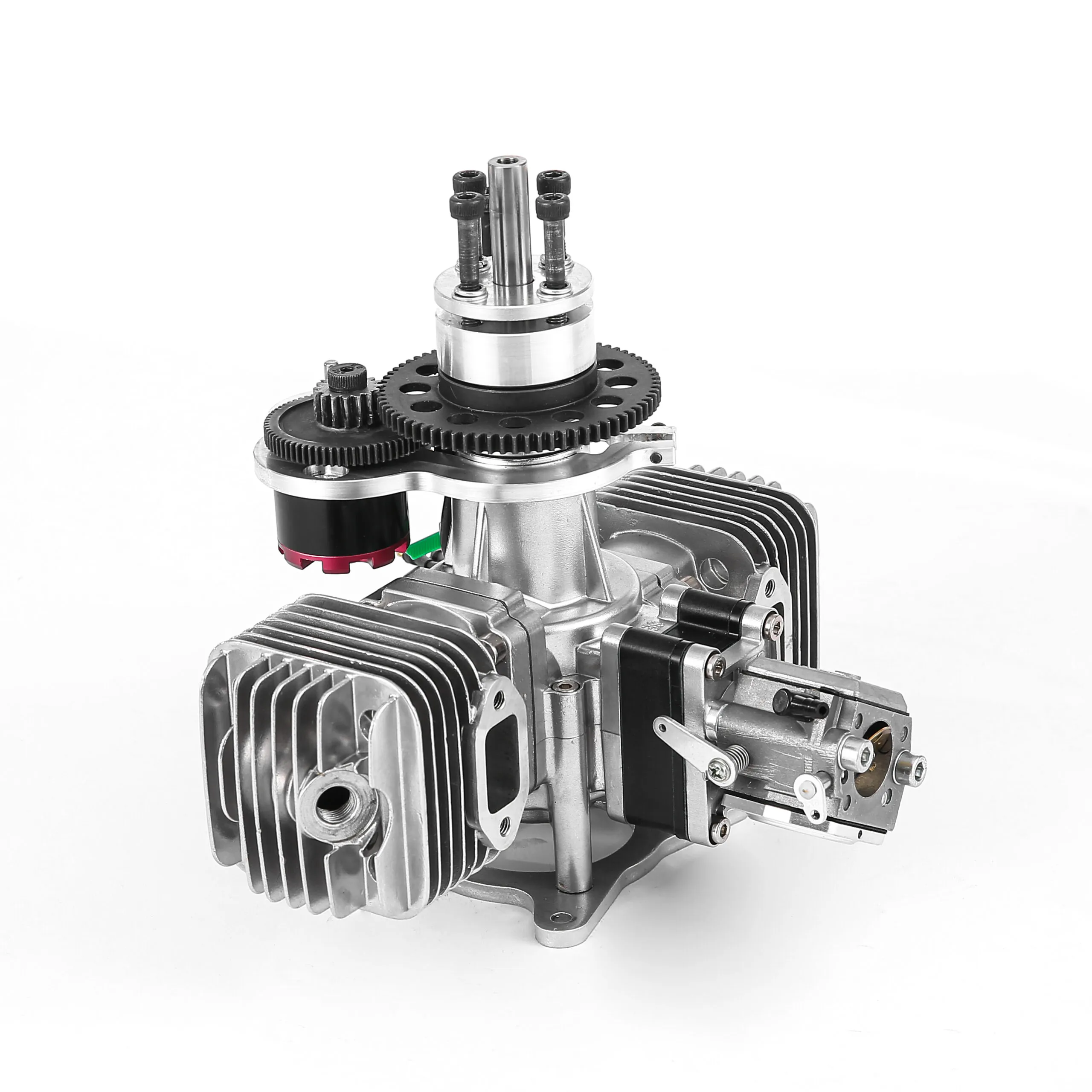

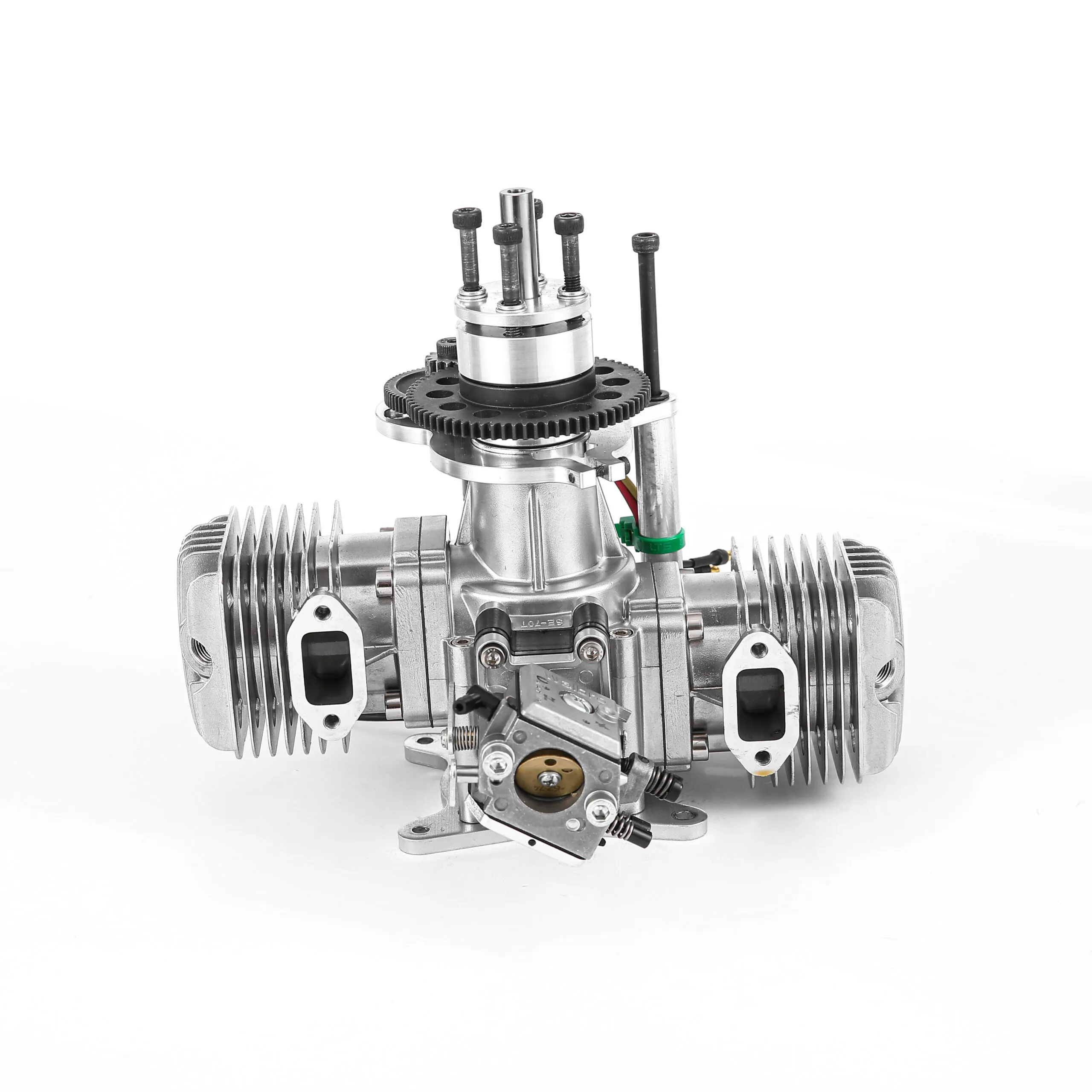

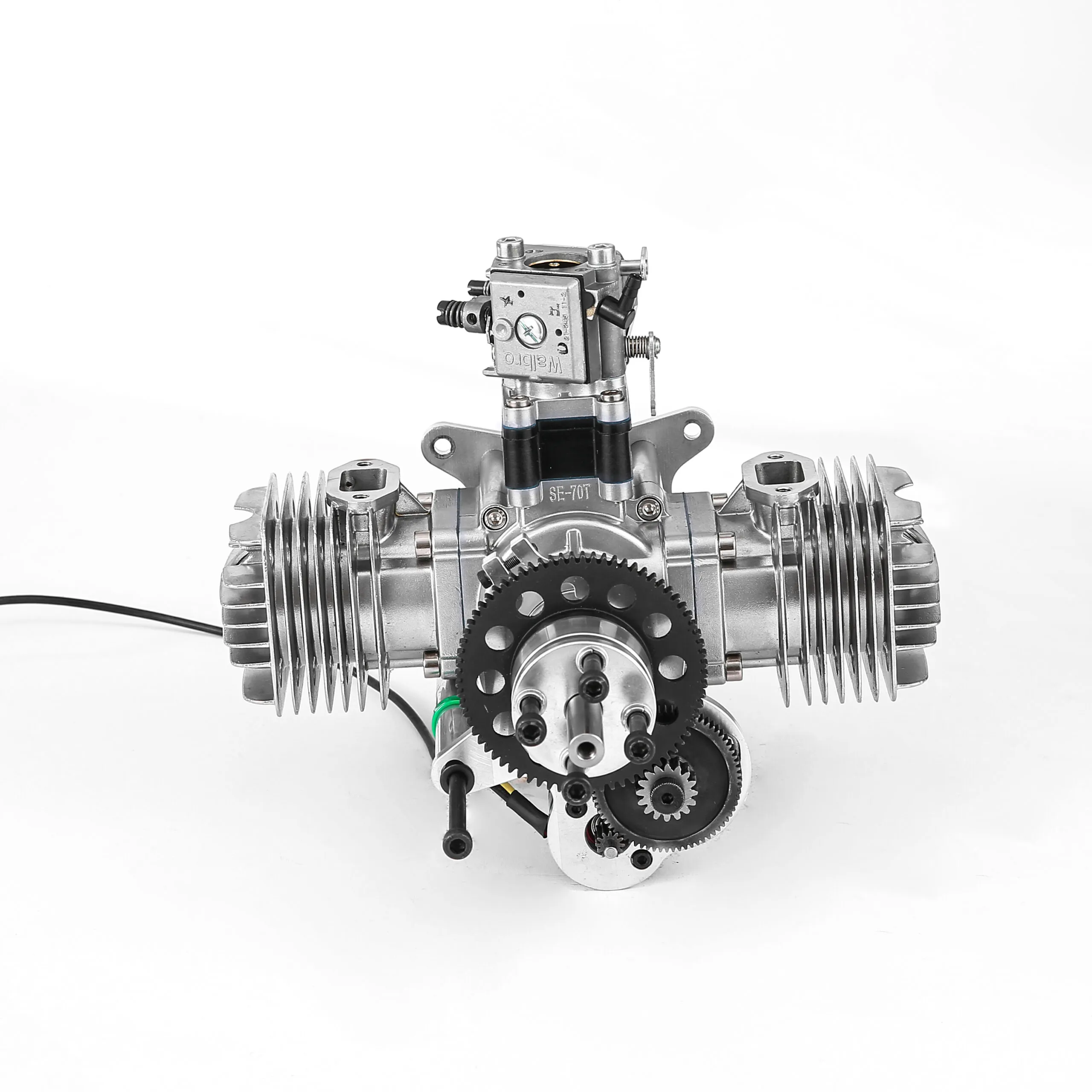

The New RCGF 70cc Twin Stinger Engine with Starter Including ESC (Electronic Speed Controller)

New Engine ,More Power, Demand the New Generation of STINGER ENGINES, the Authentic Advanced Engineered STINGER engine line! Smooth operation will give your favorite aircraft the low-vibration and unique sound of a horizontally opposed twin that modelers crave! Compact design allows more power in a smaller package! Ideal for large scale aircraft. The Stinger Twin Engine combines excellent quality and reasonable price point so you don't have to settle for an inferior product. A pumper carb simplifies installation and adjustment. NEW 70cc Twin STINGER with ELECTRIC START is starting ease and top performance make the Stinger 70cc TWIN with electric start an attractive alternative for value, performance and safety/convenience!


RCGF 70cc TWIN STINGER Parameters:

  • Includes ESC （Electronic Speed Controller）

  • Type : 2 cycle piston valve type gasoline engine for airplane

  • Piston displacement Cylinder (cc) : 70cc(4.27 cu.in)

  • Bore x Stroke (mm): 1.53 in(39mm) x 1.18 in (30mm)

  • Carburetor : Walbro

  • Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)

  • Power supply: 6-14V

  • Maximum Output :7.4HP/8600rpm

  • Requires: Gasoline, 2-cycle oil, ignition battery & propeller

  • speed rang : 1500-8600rpm

  • Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommend:30:1

  • (90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)

  • Lubrication Oil : 2 cycle engine oil

  • Suggested Propellers: 22×10, 23×8, 23×10,24X8

  • Suggested Break-in Prop: 23X10

  • Sparking plug: NGK CM6 Type

  • Cooling System : Air Cooled

  • RCGF engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.


Weight :

  • Engine: 3.32 lb (1508g)

  • 2XMuffler: 5.36 oz (152 g)

  • Ignition Module: 5.11 oz (145 g)

  • Total: Weight: 3.98 lb (1805 g)


Technical Data:

  • Ignition Battery: 6-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack

  • Gasoline/Oil Mix: 30:1

  • Replacement Spark Plug: NGK CM6 or equivalent

  • dle Speed: 1600 rpm/min

  • Static Thrust:

  • 34.2 lb (15.5 kg) @ 328 ft (100 m) altitude

  • 30.9 lb (14kg) @ 5,900 ft (1800 m) altitude

$30 flat rate shipping for Domestic US only ($85 economy to Canada) send us an email at [email protected] to calculate shipping cost.








: *
: *
: *

XQ 4013 digital 6v

XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

  • Torque:
    • 166.7 oz/in at 4.8V (12.0 kg/cm)
    • 197.2 oz/in at 6V (12.8 kg/cm)

  • Speed:
    • .13 sec at 4.8V
    • .11 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2 oz (59g)
  • Size: 40x20x39mm

  • Gear Style: Futaba Arms
  • Modulation: Coreless Digital
  • Gear Type: Titanium
  • Weight: 2oz (59g)
  • Size: 40x20x39mm




Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

  • Titanium Gears
  • Waterproof
  • Coreless
  • Digital
  • High Torque/High Speed
  • Smooth resolution


Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!



X-4013

$42.50

DLE 20cc Engine

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

  • Stock Number: DLEG0020
  • Displacement: 20 cc (1.22 cu in)
  • Bore: 1.3 in (32 mm)
  • Stroke: 1.0 in (25 mm)
  • Weight: 28.9 oz (820 g)
  • RPM Range: 1,750-9,000
  • Output: 2.5 hp @ 9,000 rpm
  • Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
  • Suggested Propellers: 16x8 17x6
  • Suggested Break-in Prop: 16x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 10.5:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-20

$279.99

RCGF 40CC Twin Stinger Gas Engine

RCGF 40CC Twin Stinger Gas Engine

RCGF 40CC Twin Stinger Gas Engine



RCGF-40cc-Twin

$459.99
