MKS DS1220

Ask a question about this product

Printable version

Options

Our Price:

$89.99

Quantity (11)

Details


Availability	11 in stock
Weight	0.35 lbs
SKU	MKS-DS-1220
Manufacturer	MKS

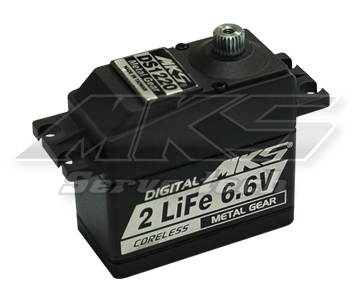

MKS DS1220

Description:

The MKS DS1220 is a high quality "Coreless" Servo.

The nice thing about coreless servos is that a light weight wire mesh replaces the heavy steel core. By swapping the metal core for something lighter, this servo is able to produce quick acceleration and deceleration, smooth operation, excellent torque, fast response times, and a guarantied quality performance because it operates at low temperatures.

Specs:

Torque:
- 346 oz/in at 6V (24.9 kg/cm)
- 422 oz/in at 6.6V (30.4 kg/cm)
Speed:
- .159 sec at 4.8V
- .14 sec at 6V
Voltage: 4.8V to 6.6V
Weight: 2.03oz (57.70 g)
Size: 1.57 x .78 x 1.45 in (40.0 x 20.0 x 37.0 mm )
Operating Temp- -10~60centigrade
Working Frequency - 1520μs / 333hz
Dead Band- 0.0008ms (Default)
15 cm connector wire
CORELESS Motor
Double Ball Bearings
FET Driver
Direct Drive Potentiometer
Titanium gears
