Cessna L-19 Micro Indoor Laser-Cut Wood Model Kit (Now as PNP or BNF Electric Power version)

Kit+Motor+ESC+Servos+Batteries and charger

Kit+Motor+ESC+Servos+Batteries and charger+RX

Ask a question about this product

Printable version

Options

Market Price: $74.90

Our Price:

$49.99

You Save

33%

FREE SHIPPING

Kit Versions

Quantity (11)

Notify me when back in stock

Details


Availability	11 in stock
Weight	1.30 lbs
SKU	DW-K1204

Balsawood Micro Indoor Airplane Building Model Cessna L-19 with 445mm Wingspan Laser-Cut Electric Aircraft Kit now available as PNP or BNF Version!

The Cessna L-19/O-1 Bird Dog was a liaison and observation aircraft. It was the first all-metal fixed-wing aircraft ordered for and by the United States Army following the Army Air Forces' separation from it in 1947. The Bird Dog had a lengthy career in the U.S. military, as well as in other countries.

Our model captures the very essence of this early Cessna. This Micro Balsa plane is built from balsa and hardwoods with all the parts beautifully laser cut that are extremely accurate allowing you to build the perfect model. This PNP kit is easy to operate and suitable for beginners and comes with everything you need except your battery and RX/TX. BNF includes battery and charger plus DSMX Receiver!

Specifications:

Wingspan: 445mm
Length: 320mm
Flying Weight: ≈35~50g
Radio: more than 3CH

Optional Power System:

Motor: 1104 3700KV (included in PNP)
ESC: 5A /1S (included in PNP)
Servo: 1.7g * 2pcs (included in PNP)
Propeller: 4530-5030 (included in PNP)
Battery: 1S 150-250mAh and charger (included in PNP+)
Receiver: MINI RX144 (DSMX/2) (included in BNF version)
Transmitter: 3Ch or greater (Not included)

Kit Versions:

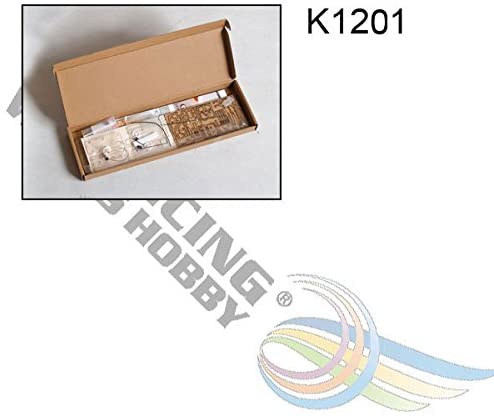

K1201= Micro Cessna-L19 KIT only

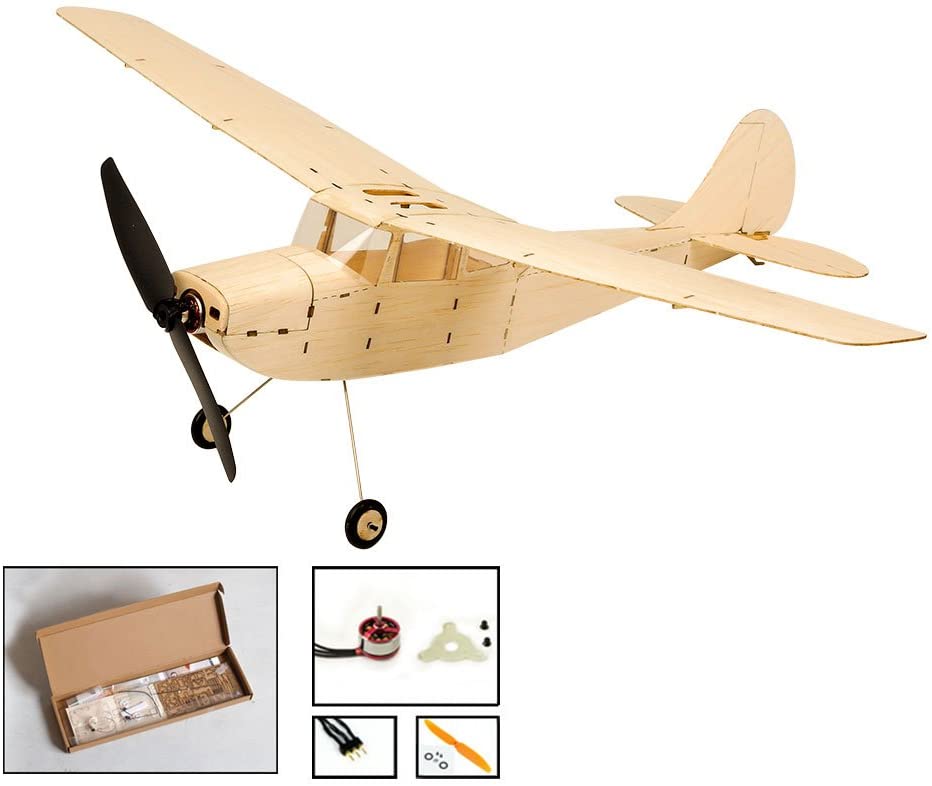

K1202= KIT+Motor(1104 3700KV+1.5mm Prop Saver+5030 Prop+2.0 Pin 3P)

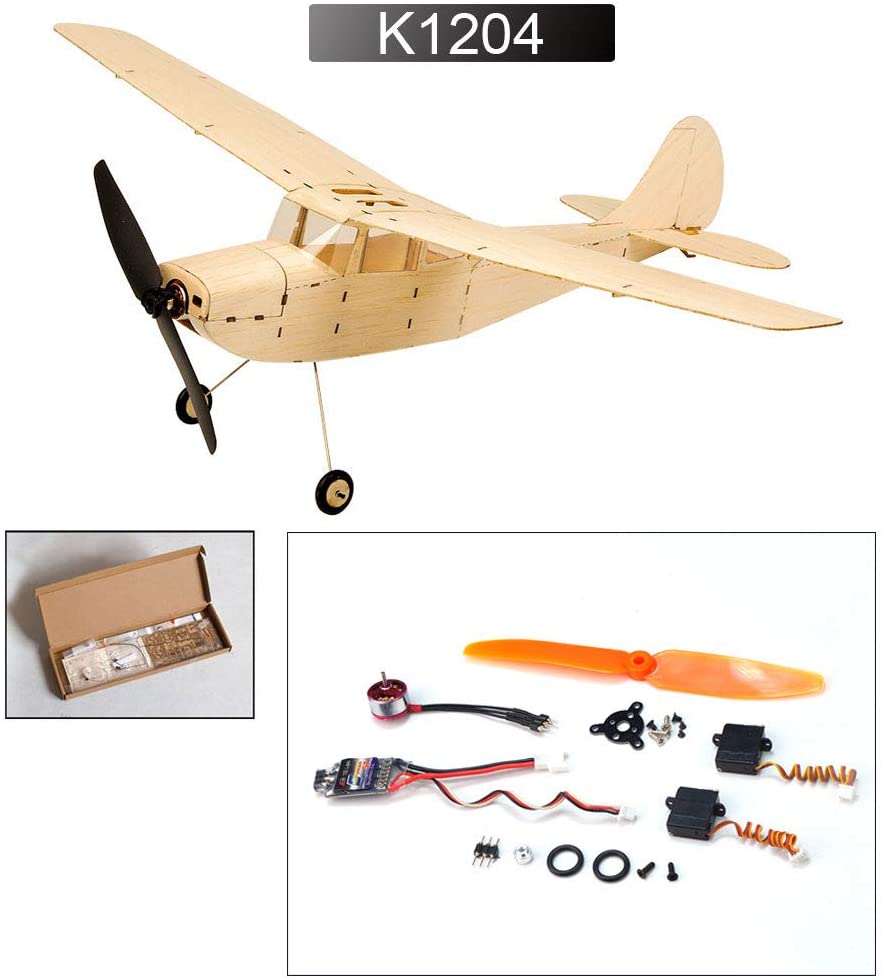

K1204 (PNP)= KIT+Motor+ESC( 1S7A+2.0Pin 3P+Walkera Female 2P+1.25P 2pin)+Servo(1.7g*2)

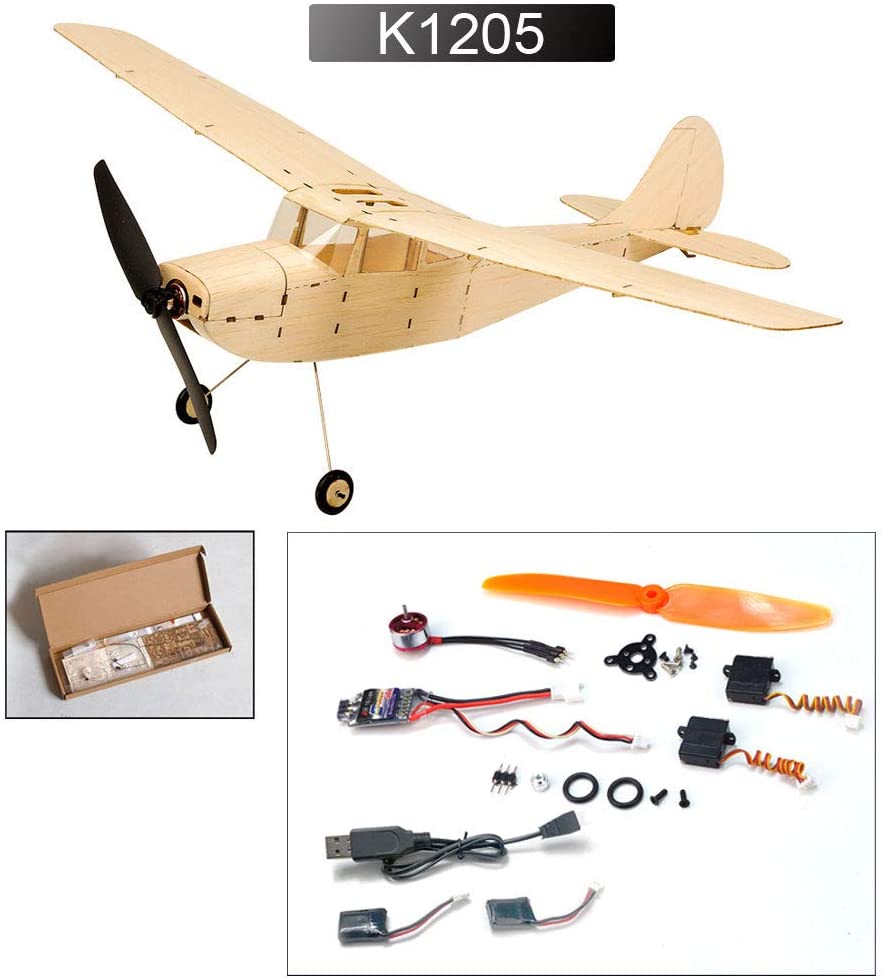

K1205 (PNP+)= K1204+2pcs*1S 100mAh Battery+USB Charger
K1205-144 (BNF)= K1205+Mini Receiver RX144 (DSMX/2)

Free shipping lower 48 USA only. Contact us at [email protected] for international shipping

Kit only

Kit with motor

Kit+Motor+ESC+Servos

Kit+Motor+ESC+Servos+Batteries and charger

Kit+Motor+ESC+Servos+Batteries and charger+RX

XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

Torque:
- 166.7 oz/in at 4.8V (12.0 kg/cm)
- 197.2 oz/in at 6V (12.8 kg/cm)
Speed:
- .13 sec at 4.8V
- .11 sec at 6V
Voltage: 4.8V - 6V
Weight: 2 oz (59g)
Size: 40x20x39mm
Gear Style: Futaba Arms
Modulation: Coreless Digital
Gear Type: Titanium
Weight: 2oz (59g)
Size: 40x20x39mm

Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

Titanium Gears
Waterproof
Coreless
Digital
High Torque/High Speed
Smooth resolution

Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!

X-4013

$42.50 42.50

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.

Download DLE 20 Manual

Specifications:

Stock Number: DLEG0020
Displacement: 20 cc (1.22 cu in)
Bore: 1.3 in (32 mm)
Stroke: 1.0 in (25 mm)
Weight: 28.9 oz (820 g)
RPM Range: 1,750-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
Suggested Propellers: 16x8 17x6
Suggested Break-in Prop: 16x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 10.5:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)
