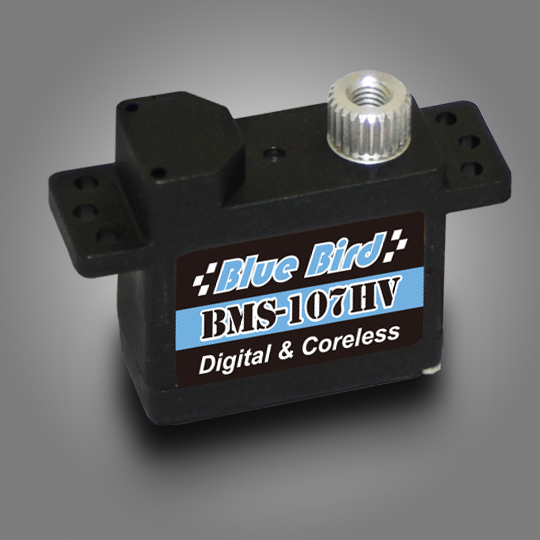

BMS-107HV MICRO-DIGITAL, HIGH SPEED, CORELESS SERVO
BMS-107HV MICRO-DIGITAL, HIGH SPEED, CORELESS SERVO
APPLICATION / SUITABLE
SPECIFICATIONS
|
| Operating Voltage Range | 3.7V ~ 8.4V ( 5 ~ 6 Cell Ni-MH or 1 ~ 2S LiPo / 2S LiFe ) |
MICRO SERVO
| Control System | Digital Controller 12-Bits ( 4096 Steps ) / Frequency：250Hz / Neutral：1520us |
| Dead Band Width | 0.002ms ( 2us ) |
| Frame Rate (Signal repeat rate) | 3ms ( Maximum ) [ EX：Futaba-4PX / Sanwa-M12 ] |
| Rotating Direction | Clockwise / Pulse Traveling 1500 ~ 2100u sec |
| Operating Travel | 90° ( When 1100 ~ 1900 μ sec ) |
MECHANICAL SPECIFICATIONS
| Ball Bearing | 1 Brass Bushing |
| Gear | All Metal Gears |
| Motor | Coreless Motor |
| Horn / Gear Spline | 25 Teeth ( Same as F-Type ) |
| Cable Length | 150 mm ( 5.9 in ) |
| Connector | Universal Connector ( J-Type ) |

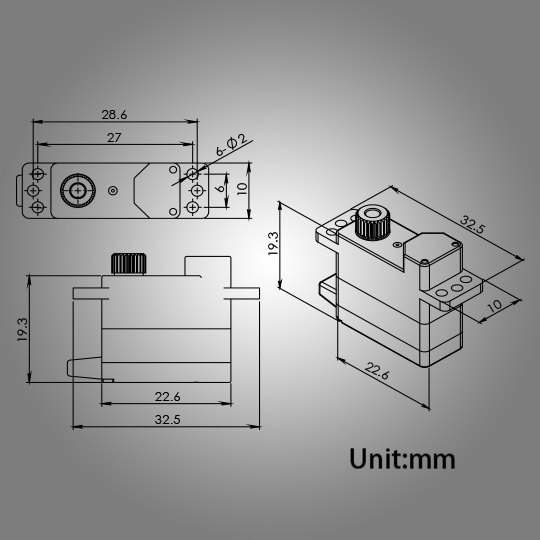

PHYSICAL SPECIFICATIONS
| Dimension (mm) | 22.5 x 10 x 22.8 mm / 0.89 x 0.39 x 0.90 in |
| Weight (gram) | 10.5 ± 1 grams / 0.37 oz |
