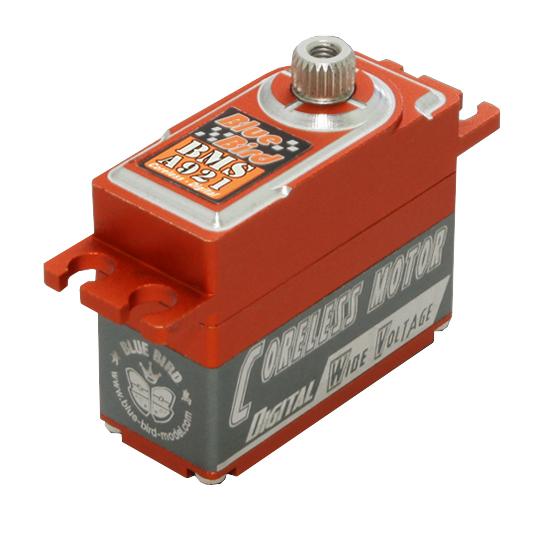

BMS-A921+ HV MINI, DIGITAL, CORELESS (New Faster and more Torque w/ Soft Start Protection)

Ask a question about this product

Printable version

Options

Our Price:

$66.99

Quantity (15)

Details


Availability	15 in stock
Weight	0.35 lbs
SKU	BBR-BMS-A921+
Manufacturer	Blue Bird

BMS-A921+ HV MINI, DIGITAL, CORELESS (New Faster and more Torque w/ Soft Start Protection)

APPLICATION / SUITABLE

Perfect for: Heli 500 Class CCPM cyclic and rudder servo use, EP Aircraft & 1/12th EP Car

SPECIFICATIONS

Torque At 6.0V	10.8 kg-cm / 150.0 oz-in
Torque At 7.4V	13.3 kg-cm / 184.7 oz-in
Torque At 8.4V	15.1 kg-cm / 209.7 oz-in
Speed At 6.0V	0.07 sec / 60°
Speed At 7.40V	0.06 sec / 60°
Speed At 8.4V	0.05 sec / 60°

POWER SUPPLY

Operating Voltage Range

4.5V ~ 8.5V ( 4~6 Cell Ni-MH or 2S LiFe / LiPo Compatible)

MINI SERVO

Control System	Digital Controller / AD 12-Bits Resolution ( 4096 Steps )
Dead Band Width	0.001ms ( Default：1us)

Protection Mechanism:

Soft Start Protection	Soft start to neutral position.
Locked Protection	Stall in 5 sec, output torque goes down.
Temperature Protection	Overheat 85 degree C, drive the protection mode and down 75 degree C return to normal mode.

MECHANICAL SPECIFICATIONS

Ball Bearing	Dual
Gear	All Metal Gears
Motor	High Premium Coreless Motor
Horn / Gear Spline	25 Teeth ( Same as F-Type )

PHYSICAL SPECIFICATIONS

Dimension (mm)	35.5 x 15 x 29 mm / 1.4 x 0.59 x 1.14 in
Weight (gram)	35.5 ± 1 grams / 1.25 oz

Servo Extensions 22AWG and 20AWG

High quality 22AWG wire, twisted silicone wire extensions. JR type connections, so they will plug into any receiver/switch, and most servos (Hitec/JR/PowerHD/etc etc....futaba you would have to trim the edge off).

Soft flexible silicone casing
Heavy duty 22awg
Universal - XQ Power/Hitec/Power HD/JR/more...
Reliable! We've NEVER gotten a pair returned

Prices
- 2" 1 pair - $2.50
- 2" 2 pair - $4.50
- 2" 3 pair - $6.99
- 3" 1 pair - $3.50
- 3" 2 pair - $6.50
- 3" 3 pair - $8.99
- 6" 1 pair - $3.99
- 6" 2 pair - $6.99
- 6" 3 pair - $9.99
- 8" 1 pair - $3.99
- 8" 2 pair - $6.99
- 8" 3 pair - $9.99
- 10" 1 pair - $3.99
- 10" 2 pair - $6.99
- 10" 3 pair - $9.99
- 12" 1 pair - $4.99
- 12" 2 pair - $8.99
- 12" 3 pair - $12.99
- 14" 1 pair - $4.99
- 14" 2 pair - $8.99
- 14" 3 pair - $12.99
- 16" 1 pair - $4.99
- 16" 2 pair - $8.99
- 16" 3 pair - $12.99
- 18" 1 pair - $6.99
- 18" 2 pair - $10.99
- 18" 3 pair - $13.99
- 24" 1 pair - $7.99
- 24" 2 pair - $12.99
- 24" 3 pair - $15.99
- 28" 1 pair - $7.99
- 28" 2 pair - $12.99
- 28" 3 pair - $15.99
- 32" 1 pair - $7.99
- 32" 2 pair - $12.99
- 32" 3 pair - $15.99
- 36" 1 pair - $8.99
- 36" 2 pair - $14.99
- 36" 3 pair - $17.99
- 44" 1 pair - $8.99
- 44" 2 pair - $14.99
- 44" 3 pair - $17.99
- 48" 1 pair - $8.99
- 48" 2 pair - $14.99
- 48" 3 pair - $17.99
