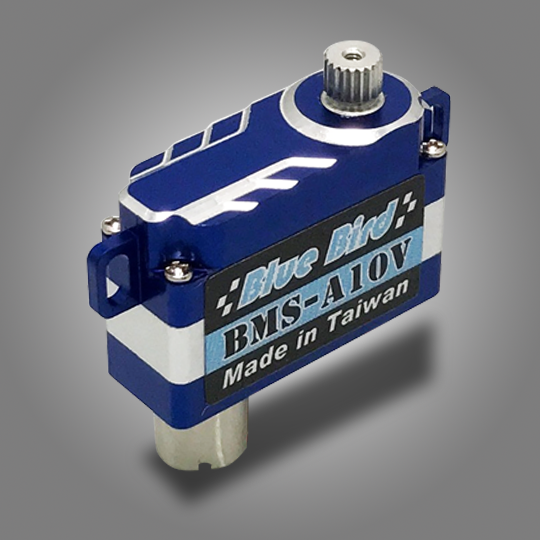

BMS-A10 MICRO, HORIZONTAL MOUNT, HV-DIGITAL, F3K

Blue Bird has entered the F3K/DLG servo market with these new micro digital servos. Purpose built for F3K.

The A10 digital series of servos feature metal gears, cnc aluminum cases, and a coreless motor. The A10 series are some of the lowest weight F3K servos available at just 7.3-7.4 grams depending on case configuration.

Capable of use with 1-2 cell LiPo batteries.

Blue Bird boasts impressive specifications for these units. Click the link below for a detailed specification sheet.

Data Sheet Here

APPLICATION / SUITABLE

3D EP Airplane / DLG / HLG / F3K / F3P

SPECIFICATIONS

Torque At 3.7V	1.6 kg-cm / 22.2 oz-in
Torque At 6.0V	2.4 kg-cm / 33.3 oz-in
Torque At 7.4V	2.9 kg-cm / 40.3 oz-in
Torque At 8.4V	3.2 kg-cm / 44.5 oz-in
Speed At 3.7V	0.15 sec / 60°
Speed At 6.0V	0.10 sec / 60°

Speed At 7.4V

0.08 sec / 60°

Speed At 8.4V

0.07 sec / 60°

POWER SUPPLY

Operating Voltage Range

3.7V ~ 8.4V ( 3 ~ 6 Cell Ni-MH or 1 ~ 2S LiPo / 2S LiFe )

MICRO SERVO

Control System	Digital Controller 12-Bits ( 4096 Steps ) / Frequency：333Hz / Neutral：1500us
Dead Band Width	0.002ms ( 2us )

Frame Rate (Signal repeat rate)

3ms ( Maximum )

Rotating Direction

Clockwise / Pulse Traveling 1500 ~ 1900u sec

Operating Travel

90° ( When 1100 ~ 1900 μ sec )

MECHANICAL SPECIFICATIONS

Ball Bearing	Dual, Stainless
Gear	All Precision Metal Gears
Motor	Metal-Brush Coreless Motor
Horn / Gear Spline	19 Teeth ( φ3.65 m/m )

Cable Length

150 mm ( 5.9 in )

Connector

Universal Connector ( J-Type )

PHYSICAL SPECIFICATIONS

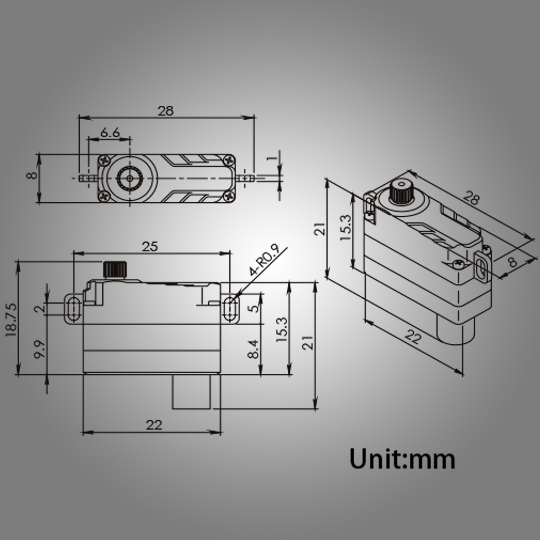

Dimension (mm)	22 x 8 x 15.3 mm / 0.86 x 0.31 x 0.60 in
Weight (gram)	7.4 ± 0.5 grams / 0.26 oz
