BMS-397HT, HV MINI, ULTRA HIGH SPEED, DIGITAL, METAL GEAR, CORELESS 5.9kg/81.9oz 0.05 [email protected]

Contact UsCustomer Reviews
  0
  5. BMS-397HT, HV MINI, ULTRA HIGH SPEED, DIGITAL, METAL GEAR, CORELESS 5.9kg/81.9oz 0.05 [email protected]
Tariff Information update
more offers

BMS-397HT, HV MINI, ULTRA HIGH SPEED, DIGITAL, METAL GEAR, CORELESS 5.9kg/81.9oz 0.05 [email protected]

Ask a question about this product
Printable version

Share

Options

Our Price:

$34.99
Quantity (32)

Details

Availability 32 in stock
Weight 0.35 lbs
SKU BBR-BMS-397HT
Manufacturer Blue Bird

BMS-394HT. HV MINI, ULTRA HIGH SPEED, DIGITAL, METAL GEAR, CORELESS

APPLICATION / SUITABLE
Perfect for: EP Aircraft , Heli 450 Class CCPM , Car 1/16th & 1/18th

SPECIFICATIONS

Torque At 6.0V 4.0 kg-cm / 55.6 oz-in
Torque At 7.4V 5.1 kg-cm / 70.8 oz-in
Torque At 8.4V 5.9 kg-cm / 81.9 oz-in
Speed At 6.0V 0.07 sec / 60°
Speed At 7.4V 0.06 sec / 60°
Speed At 8.4V 0.05 sec / 60°



POWER SUPPLY
Operating Voltage Range  4.5V ~ 8.5V ( 4~6 Cell Ni-MH or 2S  LiFe / LiPo Compatible)



MINI SERVO
Control System Digital Controller / AD 12-Bits Resolution ( 4096 Steps )
Dead Band Width 0.001ms ( Default：1us)
Working Frequency & Neutral 333 Hz / 1520us
Frame Rate (Signal repeat rate) 3ms (Maximum)
Rotating Direction  Clockwise / Pulse Traveling 1500 ~ 1900u sec
Operating Travel  90° (When 1100 ~ 1900 μ sec) [ Maximum：800us ~ 2200us ]



MECHANICAL SPECIFICATIONS
Ball Bearing Dual
Gear All Metal Gears
Motor High-Efficiency Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )
Outside Case  Middle Aluminum Alloy Case
Connected Cable Length  150 mm (5.90 in)
Connector Housing  Universal Connector (J-Type)

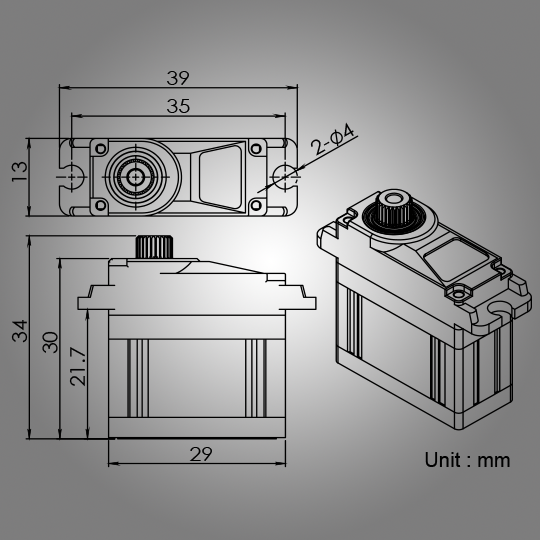

PHYSICAL SPECIFICATIONS
Dimension (mm) 29 x 13 x 30 mm / 1.14 x 0.51 x 1.18 in
Weight (gram) 21.5 ± 1 grams / 0.76 oz






: *
: *
: *
