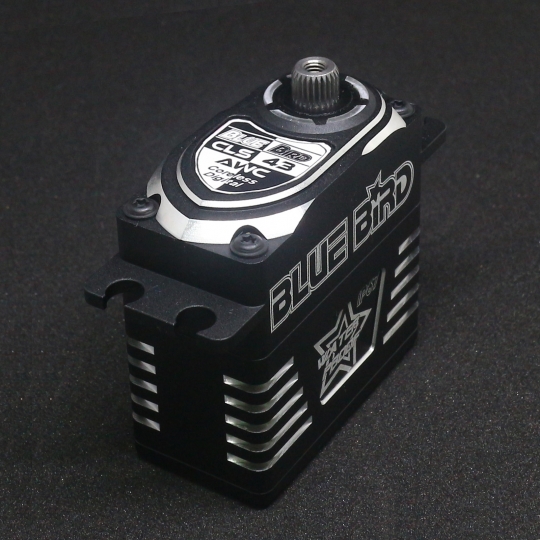

CLS-43AWC Water Proof,+Lockable Servo Arm (49.1 kg/682oz, 0.12 sec @ 8.4V New generation Servo)

Ask a question about this product

Printable version

Options

Our Price:

$104.99

Quantity

OUT OF STOCK

Notify me when back in stock

Details


Availability	No items available
Weight	0.52 lbs
SKU	BBR-CLS-43AWC
Manufacturer	Blue Bird

CLS-43AWC Water Proof,+Lockable Servo Arm (49.1 kg/682oz, 0.12 sec @ 8.4V New generation Servo)--Blue Bird's latest generation servo that is water proof and includes soft start, voltage, heat, rotor, and loss of control protections and includes a Lockable Aluminum Servo ARM! Perfect match for 1/8 scale Monster Truck/Crawler/Large Boat or 3D Plane!

Water Proof IP67 (Ingress Protection Rating, 6=Dust Tight, 7=Immersion up to 1M for 30 min)

Features:

★Soft Start Protection
★Over Voltage Protection
★Low Voltage Protection
★Locked Rotor Protection
★Temperature and Loss of signal Protection

APPLICATION / SUITABLE

Perfect for 1/8 Scale Buggy (Off-road), GT (On-Road), Monster Truck, Rock Crawler and Large Boats and 3D plane

ELECTRICAL SPECIFICATION (FUNCTION OF THE PERFORMANCE)

Torque At 6.0V	35.8 kg-cm / 497.3 oz-in
Torque At 7.4V	43.3 kg-cm / 601.4 oz-in
Torque At 8.4V	49.1 kg-cm / 682.0 oz-in
Speed At 6.0V	0.16 sec / 60°
Speed At 7.4V	0.13 sec / 60°
Speed At 8.4V	0.12 sec / 60°

PROTECTION MECHANISM

Soft Start Protection	Soft start to neutral position.
Over Voltage Protection	Over 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage Protection	Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Rotor Protection	Stall in 5 sec, output torque goes down.
Temperature and Loss Signal Protection	Overheat 85 degree C, drive the protection mode and down 75 degree C return to normal mode. Loss of TX signal, servo willreturn to neutral position and lock.

POWER SUPPLY

Operating Voltage Range

4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S LiPo / 2S LiFe)

CONTROL SPECIFICATION

Control System	32-Bits CPU Digital Controller / AD 12-Bits ( 4096 Steps ) Frequency：Up to 333Hz / Neutral：1500us or 1520us
Dead Band Width	0.001ms ( Defualt: 1us )

MECHANICAL SPECIFICATIONS

Ball Bearing	Dual, Stronger Steel Bearings 1 piece oil sealed
Gear	All Steel Alloy Metal Gears
Cable	300mm(~12") Black Cased Cable
Motor	High Premium Coreless Motor
Horn / Gear Spline	25 Teeth ( Same as F-Type)

PHYSICAL SPECIFICATIONS

Dimension (mm)	40.6 x 20.6 x 41.2 mm / 1.6 x 0.81 x 1.62 in
Weight (gram)	85.0 ± 1 grams / 2.99 oz

Includes Servo and Aluminum Servo Arm
