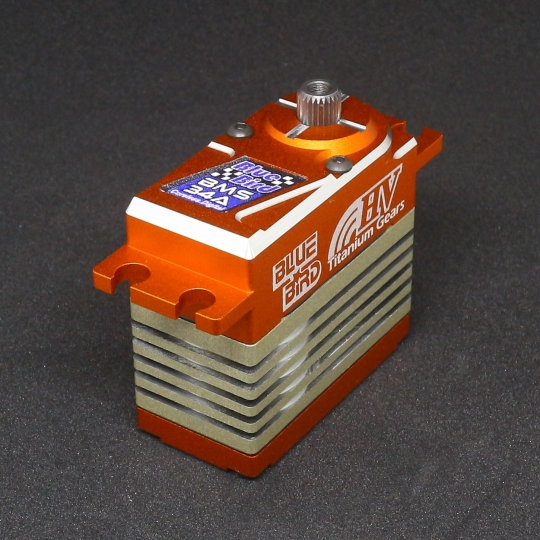

BMS-34A, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, CORELESS+Servo Arm

APPLICATION / SUITABLE

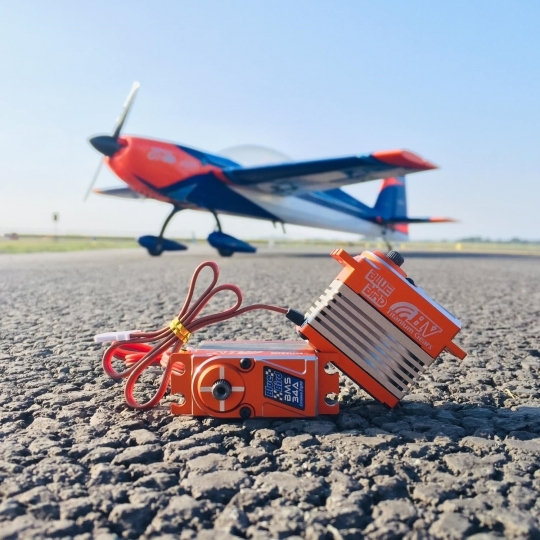

Priority for 3D Airplane, Large Jet & 1/5、1/8th Buggy, Truggy, Crawler, Monster & Helicopter.  (EP / Gas / Nitro)



 SPECIFICATIONS

Torque At 6.0V 27.3 kg-cm / 379.2 oz-in
Torque At 7.4V 33.7 kg-cm / 468.1 oz-in
Torque At 8.4V 38.4 kg-cm / 533.4 oz-in
Speed At 6.0V 0.11 sec / 60°
Speed At 7.4V 0.09 sec / 60°
Speed At 8.4V 0.08 sec / 60°



PROTECTION MECHANISM

Soft Start Protection A soft start to a neutral position.
Over Voltage Protection Over 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage Protection Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Stall/Rotor Protection Stall in 5 sec, output torque goes down.
Temperature Protection Overheat 85 degrees C, drive the protection mode and down 75 degrees C
return to normal mode.



POWER SUPPLY

Operating Voltage Range  4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)

 STANDARD FULL ALUMINUM SERVO

Control System Digital Controller / AD 12-Bits Resolution ( 4096 Steps )
Frequency：333Hz / Neutral：1520us
Dead Band Width 0.001ms ( Default：1us)



MECHANICAL SPECIFICATIONS

Ball Bearing Dual
Gear Titanium Alloy Gears
Motor High Premium Taiwan Coreless Motor

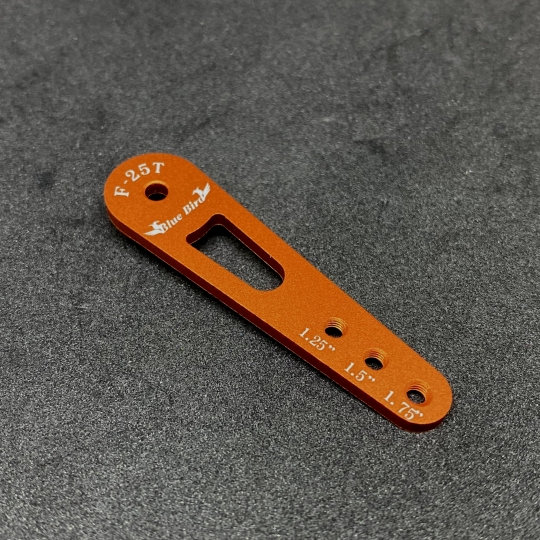

Horn / Gear Spline 25 Teeth ( Same as F-Type )



PHYSICAL SPECIFICATIONS

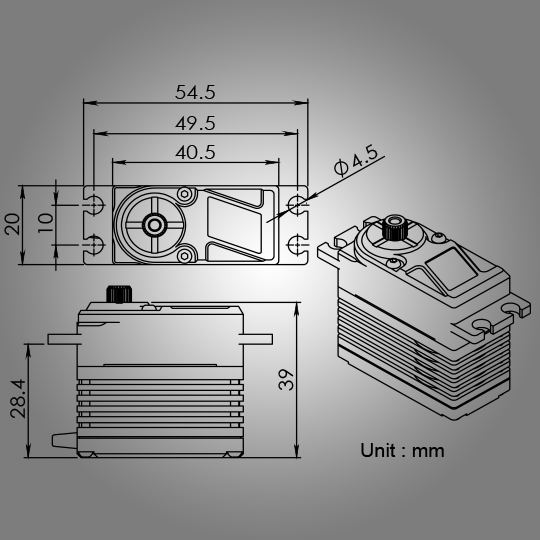

Dimension (mm) 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram) 74.1 ± 1 grams / 2.61 oz








: *
: *
: *
