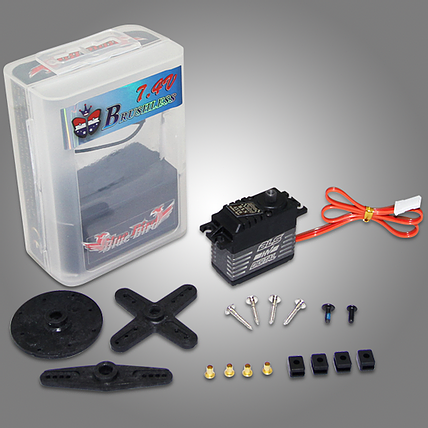

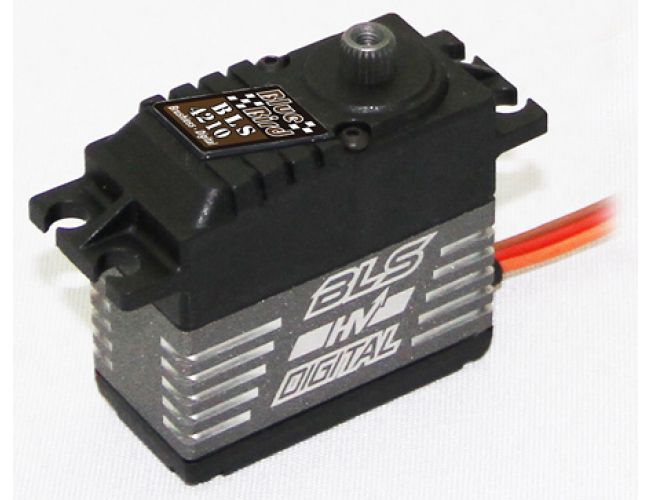

BLS-4210, 8.4V 47.5Kg/659.8oz, 8.4V 0.09 sec, HV-DIGITAL, MEGA HIGH TORQUE, HIGH SPEED, BRUSHLESS

Ask a question about this product

Printable version

Options

Our Price:

$79.99

Quantity (8)

Details


Availability	8 in stock
Weight	0.51 lbs
SKU	BBR-BLS-4210
Manufacturer	Blue Bird

BLS-4210, 8.4V 47.5Kg/659.8oz, 8.4V 0.09 sec, HV-DIGITAL, MEGA HIGH TORQUE, HIGH SPEED, BRUSHLESS

Applications

Excellent for 3D Airplane, 1/6 or 1/8th Buggy, Truggy, Crawler, Monster & Large Jet. (EP / Gas / Nitro)

Torque At 6.0V	32.9 kg-cm / 456.9 oz-in
Torque At 7.4V	42.1 kg-cm / 584.8 oz-in
Torque At 8.4V	47.5 kg-cm / 659.8 oz-in
Speed At 6.0V	0.12 sec / 60°
Speed At 7.4V	0.10 sec / 60°
Speed At 8.4V	0.09 sec / 60°

Specifications

Power Supply

Operating Voltage Range

6.0V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)

Standard Aluminum Cased Servo

Control System	Digital Controller / AD 12-Bits Resolution ( 4096 Steps ) Frequency：333Hz / Neutral：1520us
Dead Band Width	0.001ms ( Default：1us)

Mechanical Specifications

Ball Bearing	Dual
Gear	Titanium Alloy Gears
Motor	Premium Brushless Motor
Horn / Gear Spline	25 Teeth ( Same as F-Type )

PHYSICAL SPECIFICATIONS

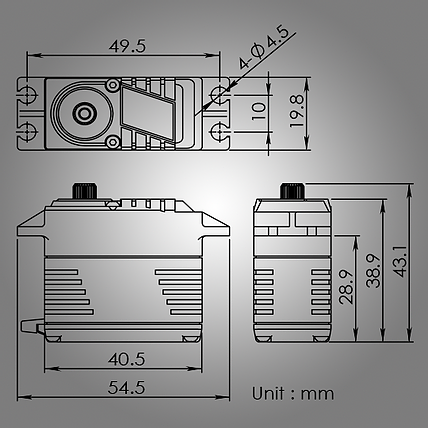

Dimension (mm)	40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram)	76.5 ± 1 grams / 2.70 oz
