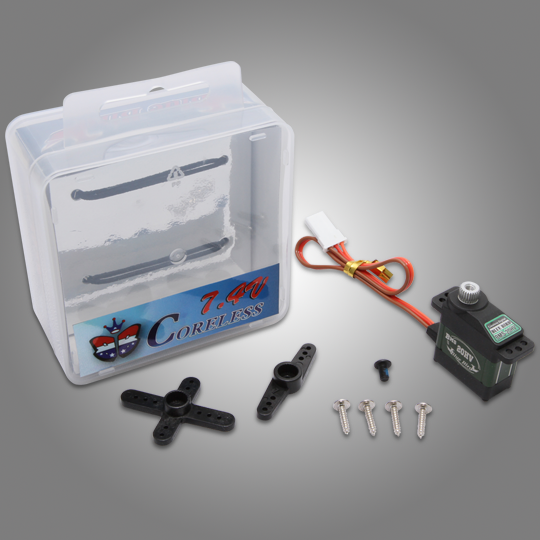

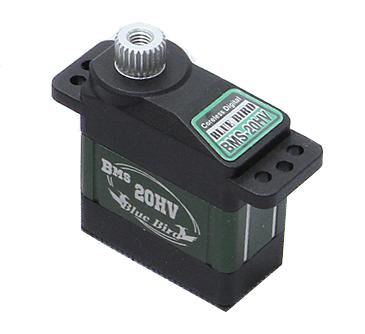

BMS-20HV MICRO-DIGITAL, HIGH TORQUE, CORELESS SERVO
BMS-20HV MICRO-DIGITAL, HIGH TORQUE, CORELESS SERVO
APPLICATION / SUITABLE
SPECIFICATIONS
|
| Operating Voltage Range | 4.5V ~ 8.4V ( 4 ~ 6 Cell Ni-MH or 2S LiPo / 2S LiFe ) |
MICRO SERVO
| Control System | Digital Controller 12-Bits ( 4096 Steps ) / Frequency：250Hz / Neutral：1520us |
| Dead Band Width | 0.002ms ( 2us ) |
| Frame Rate (Signal repeat rate) | 3ms ( Maximum ) [ EX：Futaba-4PX / Sanwa-M12 ] |
| Rotating Direction | Clockwise / Pulse Traveling 1500 ~ 1900u sec |
| Operating Travel | 90° ( When 1100 ~ 1900 μ sec ) |
MECHANICAL SPECIFICATIONS
| Ball Bearing | Dual |
| Gear | All Metal Gears |
| Motor | Coreless Motor |
| Horn / Gear Spline | 25 Teeth ( Same as F-Type ) |
| Cable Length | 150 mm ( 5.9 in ) |
| Connector | Universal Connector ( J-Type ) |

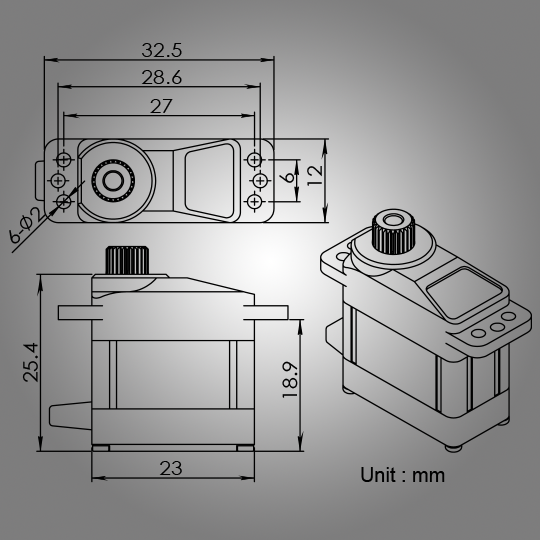

PHYSICAL SPECIFICATIONS
| Dimension (mm) | 23 x 12 x 25.4 mm / 0.9 x 0.47 x 1.0 in |
| Weight (gram) | 15.2 ± 1 grams / 0.53 oz |
