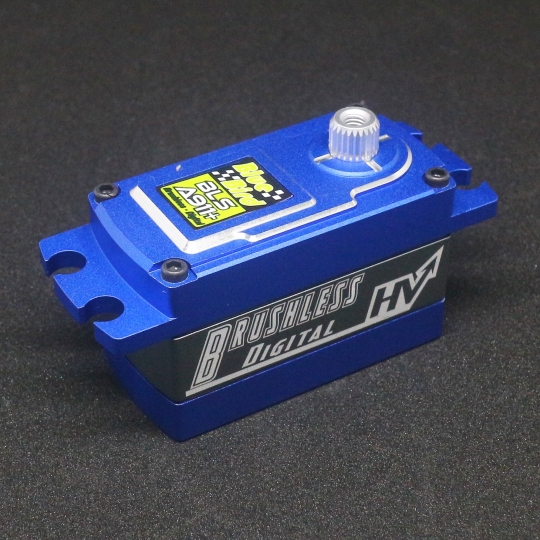

BLS-A911+ HV LOW PROFILE DIGITAL, HIGH TORQUE, MEGA FAST, METAL GEAR, BRUSHLESS (22.2kg/308.4oz [email protected])

Ask a question about this product

Printable version

Options

Our Price:

$86.99

Quantity (34)

Details


Availability	34 in stock
Weight	0.51 lbs
SKU	BBR-BLS-A911+
Manufacturer	Blue Bird

BLS-A911+ HV LOW PROFILE DIGITAL, HIGH TORQUE, MEGA FAST, METAL GEAR, BRUSHLESS (22.2kg/308.4oz [email protected])

APPLICATION / SUITABLE

1/8-1/10th On-road Car, Helicopter and 3D Aircraft

SPECIFICATIONS

Torque At 6.0V	16.8 kg-cm / 233.4 oz-in
Torque At 7.4V	20.1 kg-cm / 279.2 oz-in
Torque At 8.4V	22.2 kg-cm / 308.4 oz-in
Speed At 6.0V	0.06 sec / 60°
Speed At 7.4V	0.05 sec / 60°
Speed At 8.4V	0.04 sec / 60°

POWER SUPPLY

Operating Voltage Range

4.5V ~ 8.5V ( 4~6 Cell Ni-MH or 2S LiFe / LiPo)

MINI SERVO

Control System

Digital Controller / 12-Bits (4096 Steps)

Frequency：Up to 333Hz / Neutral：1500us or 1520us

Dead Band Width

0.001ms ( Default：1us)

MECHANICAL SPECIFICATIONS

Ball Bearing	Dual
Gear	All Metal Gears
Motor	Premium Brushless Motor
Horn / Gear Spline	25 Teeth ( Same as F-Type )

PHYSICAL SPECIFICATIONS

Dimension (mm)	40.8 x 21 x 25.4 mm / 1.60 x 0.83 x 1.0 in
Weight (gram)	50.4 ± 1 grams / 1.78 oz

Carbon Fiber Landing Gear (30cc-120cc sizes) Angled and Curved Style

Available in styles for

Yak carbon fiber replacement gear Sbach carbon fiber replacement gear MXSR/MX2 carbon fiber replacement gear Extra carbon fiber replacement gear Edge carbon fiber replacement gear etc

A - Sbach, MXSR, Slick, Edge, Extra 260
B - Yak, Sukoi
C - Yak also
PLEASE NOTE: THE GEAR HAVE NOT BEEN DRILLED SO YOU CAN MATCH IT TO YOUR PLANE.

Dimensions (match the below information to the inset photo)

30cc A STYLE (3.6 oz)
- A=7.5"
- B=16"
- C=5.5"
- D=1.187" taper to 1"
- E=1.5"

30cc B STYLE (3.8 oz)
- A=6.5"
- B=16.75"
- C=6.25"
- D=1.375" taper to 1"
- E=1"

30cc C STYLE (3.4 oz)
- A=6.5"
- B=15.5"
- C=5.5"
- D=1.125" taper to .75
- E=1"

50cc A STYLE (8.2 oz)
- A=9.25"
- B=18.75"
- C=8"
- D=1.5" taper to 1.125"
- E=1.5"

50cc B STYLE (6 oz)
- A=8.75"
- B=18.5"
- C=6.5"
- D=1.5" taper to 1"
- E=1.25"

50cc C STYLE (6 oz)
- A=7.75"
- B=18.5"
- C=6.25"
- D=1.5" taper to 1"
- E=1.0"

50cc A STYLE (8.2 oz)
- A=9.25"
- B=18.75"
- C=8"
- D=1.5" taper to 1.125"
- E=1.5"

50cc B STYLE (6 oz)
- A=8.75"
- B=18.5"
- C=6.5"
- D=1.5" taper to 1"
- E=1.25"

Carbon Fiber Landing Gear Extra 300 Series For 26-30cc, 50-80cc and 100-120cc

Dimensions (match the below information to the inset photo)

26-30cc
- A=140mm 5.5"
- B=400mm 15.75"
- C=170mm 6.69"
- D=28mm 1.10"

50-80cc
- A=160mm 6.29"
- B=465mm 18.30"
- C=198mm 7.79"
- D=40mm 1.57"

100-120cc
- A=190mm 7.48"
- B=560mm 22.04"
- C=252mm 9.92"
- D=50mm 1.96"

SS-CF-LG

$39.99 39.99

Spot On 1.5" Servo Arm

High Quality 1.5" Aluminum servo arm from Spot-On RC

Spot On Servo Arms are made of high quality 7075-T6 aluminum, one of the highest strength alloys available for this purpose. They feature an ultra secure double lock design, keeping your servo arm secure and eliminating any slop between the main servo gear and the arm. Spot On Servo Arms are also sand blasted and anodized for a beautiful appearance.

Spot on offers their servo arms in many sizes, threads and gear output compatibility. Spot On arms are offered in:
M3, or #4-40 holes, so you can use ball links that are metric or standard Futaba, Hitec or JR compatible gear mesh. Sizes ranging from 1” to 2” for single arms and 2.5” to 4.5” for rudder arms.

Available colors are Black or Silver

Spot On RC Servo Arms are measured from the center hole of the servo to the outermost hole (for example, a 1” arm is exactly 1” from hole center to hole center). However the larger sizes offer the option of one or two more additional inner holes so you can use them for future projects or fine tune your ratios.

Redwing RC only offers the V2, upgraded version, with stronger aluminum and finer design. No matter which Spot On RC Servo Arms you choose you will be sure to experience problem free set up and operation with these high quality servo arms.

SPO-SA-56b90992ed6d8

$10.00 10.00
