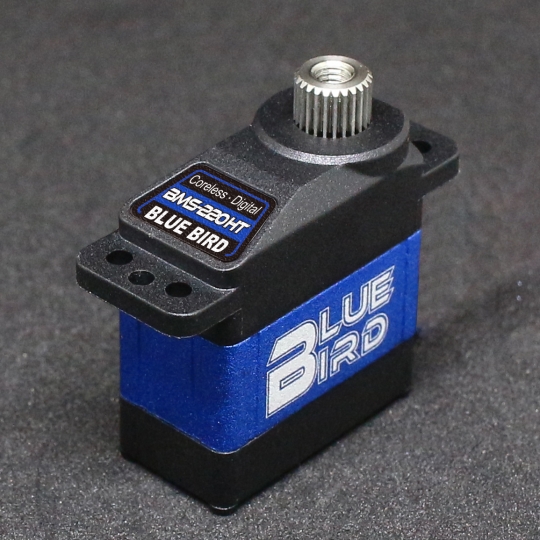

BMS-220HT, HV MINI, DIGITAL, METAL GEAR, CORELESS (New Generation) 7.1 kg / 98.6 oz 0.10 [email protected]

Contact UsCustomer Reviews
  0
  5. BMS-220HT, HV MINI, DIGITAL, METAL GEAR, CORELESS (New Generation) 7.1 kg / 98.6 oz 0.10 [email protected]
Tariff Information update
more offers

BMS-220HT, HV MINI, DIGITAL, METAL GEAR, CORELESS (New Generation) 7.1 kg / 98.6 oz 0.10 [email protected]

Ask a question about this product
Printable version

Share

Options

Our Price:

$34.99
Quantity (17)

Details

Availability 17 in stock
Weight 0.35 lbs
SKU BBR-BMS-220HT
Manufacturer Blue Bird

BMS-220HT, HV MINI, DIGITAL, METAL GEAR, CORELESS (New Generation) 7.1 kg / 98.6 oz 0.10 [email protected]

APPLICATION / SUITABLE
Perfect for: EP Aircraft and 3D plane

SPECIFICATIONS

Torque At 6.0V 5.2 kg-cm / 72.2 oz-in
Torque At 7.4V 6.3 kg-cm / 87.5 oz-in
Torque At 8.4V 7.1 kg-cm / 98.6 oz-in
Speed At 6.0V 0.13 sec / 60°
Speed At 7.4V 0.11 sec / 60°
Speed At 8.4V 0.10 sec / 60°



POWER SUPPLY
Operating Voltage Range  4.5V ~ 8.5V ( 4~6 Cell Ni-MH or 2S  LiFe / LiPo Compatible)



MINI SERVO
Control System Digital Controller / AD 12-Bits Resolution ( 4096 Steps )
Dead Band Width 0.001ms ( 1us )
Working Frequency & Neutral 333 Hz / 1520us



MECHANICAL SPECIFICATIONS
Ball Bearing Dual
Gear All Metal Gears
Motor Premium Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )
Outside Case  Middle Aluminum Alloy Case
Connected Cable Length  150 mm (5.90 in)
Connector Housing  Universal Connector (J-Type)

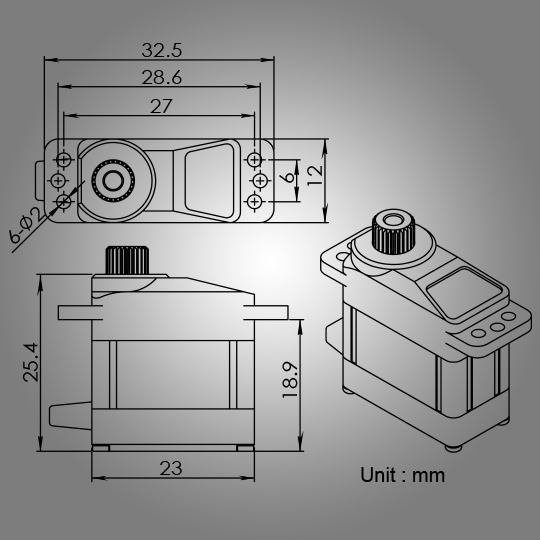

PHYSICAL SPECIFICATIONS
Dimension (mm) 23 x 12 x 25.4 mm / 0.9 x 0.47 x 1 in
Weight (gram) 15.2 ± 1 grams / 0.53 oz





: *
: *
: *
