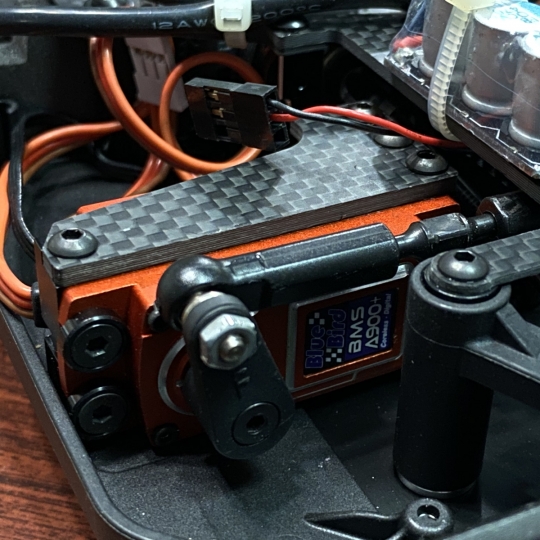

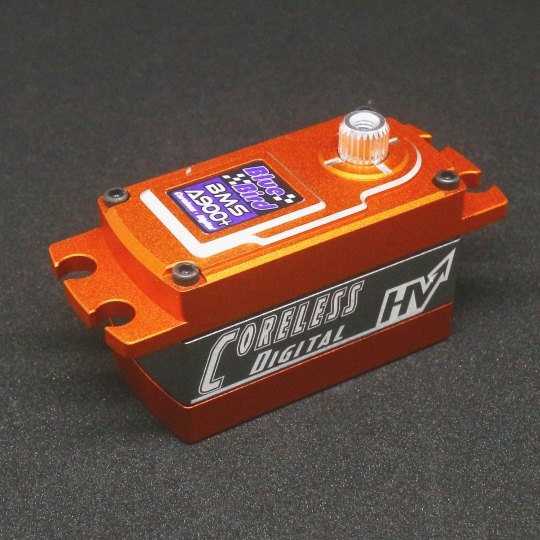

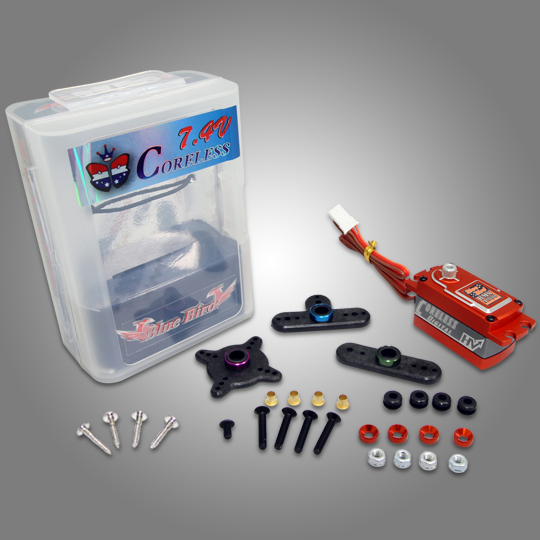

BMS-A900+ HV Low Profile, DIGITAL, HIGH TORQUE, METAL GEAR ([email protected]/395.9oz [email protected])

Contact UsCustomer Reviews

BMS-A900+ HV Low Profile, DIGITAL, HIGH TORQUE, METAL GEAR ([email protected]/395.9oz [email protected])

Market Price: $86.99
Our Price:

$78.99


You Save

9%

Quantity (10)

Availability 10 in stock
Weight 0.51 lbs
SKU BBR-BMS-A900+
Manufacturer Blue Bird

BMS-A900+ HV Low Profile, DIGITAL, HIGH TORQUE, METAL GEAR, ([email protected]/395.9oz [email protected])

APPLICATION / SUITABLE

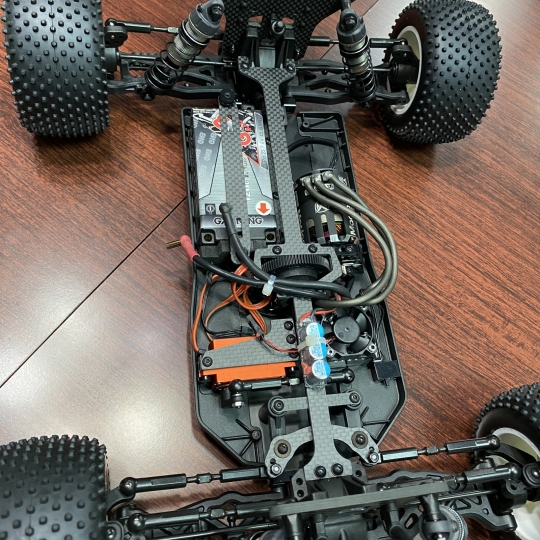

Perfect for 1/8-1/10 On-Road Car/Truck, Heli 550 Class CCPM cyclic use

SPECIFICATIONS

Torque At 6.0V 20.5 kg-cm / 284.7 oz-in
Torque At 7.4V 25.2 kg-cm / 350.0 oz-in
Torque At 8.4V 28.5 kg-cm / 395.9 oz-in
Speed At 6.0V 0.11 sec / 60°
Speed At 7.4V 0.09 sec / 60°
Speed At 8.4V 0.08 sec / 60°



POWER SUPPLY
Operating Voltage Range  4.5V ~ 8.5V ( 4~6 Cell Ni-MH or 2S  LiFe / LiPo)



MINI SERVO
Control System Digital Controller / 12-Bits (4096 Steps) Frequency:Up to 333Hz / Neutral:1500us or 1520us
Dead Band Width 0.001ms ( Default:1us)



MECHANICAL SPECIFICATIONS
Ball Bearing Dual
Gear All Metal Gears
Motor Racing Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



PHYSICAL SPECIFICATIONS
Dimension (mm) 40.8 x 21 x 25.4 mm / 1.60 x 0.83 x 1.0 in
Weight (gram)
56.5 ± 1 grams / 1.99 oz



: *
: *
: *


XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

  • Torque:
    • 166.7 oz/in at 4.8V (12.0 kg/cm)
    • 197.2 oz/in at 6V (12.8 kg/cm)

  • Speed:
    • .13 sec at 4.8V
    • .11 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2 oz (59g)
  • Size: 40x20x39mm

  • Gear Style: Futaba Arms
  • Modulation: Coreless Digital
  • Gear Type: Titanium
  • Weight: 2oz (59g)
  • Size: 40x20x39mm




Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

  • Titanium Gears
  • Waterproof
  • Coreless
  • Digital
  • High Torque/High Speed
  • Smooth resolution


Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!



X-4013

$42.50

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

  • Stock Number: DLEG0020
  • Displacement: 20 cc (1.22 cu in)
  • Bore: 1.3 in (32 mm)
  • Stroke: 1.0 in (25 mm)
  • Weight: 28.9 oz (820 g)
  • RPM Range: 1,750-9,000
  • Output: 2.5 hp @ 9,000 rpm
  • Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
  • Suggested Propellers: 16x8 17x6
  • Suggested Break-in Prop: 16x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 10.5:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-20

$279.99

Redwing RC Tapered Wingbags



Description:
Our wingbags are made with the finest materials to protect your precious investment. There are 2 openings, one slot for each wing, a wing tube slot, that velcros shut, and comfortable carrying straps. They zip closed to prevent your wings from falling out when carrying. They are made of highly durable nylon, that is weather resistant. They have thick foam padding protecting the wings from the outside, as well as each other. Other bags that come close to this quality are $80-$90. But we want you to protect and show off our beautiful planes! So we offer these at bargain prices! Get them while you can. They always go fast when in stock.

Now EVERYONE can use and enjoy our amazing wing bags! Introducing 2 more sizes! Don't get caught without one for MOST sizes of plane!


Specifications:

  • High Quality Double Wing Bag Extra Duty Padding
  • Slot for wing tube
  • Heavy Duty Nylong Material
  • Quality Construction
  • Heavy Duty Zippers
  • Awesome Price!



Approximate Dimensions:

Small



  • 24” at top
  • 41” long
  • 10” at bottom

    Medium
  • 28” W at top
  • 47” long
  • 13” W at bottom
    Large
  • 32” at top
  • 54” long
  • 16” at bottom

    PLEASE confirm size needed before ordering!




    No more thinking to yourself - "those wing bags are cool but my wings won't fit" - because they WILL! We want everyone to have the same opportunity to protect their wings with style - and who are we to discriminate?!





WB-Tapered

$119.99
