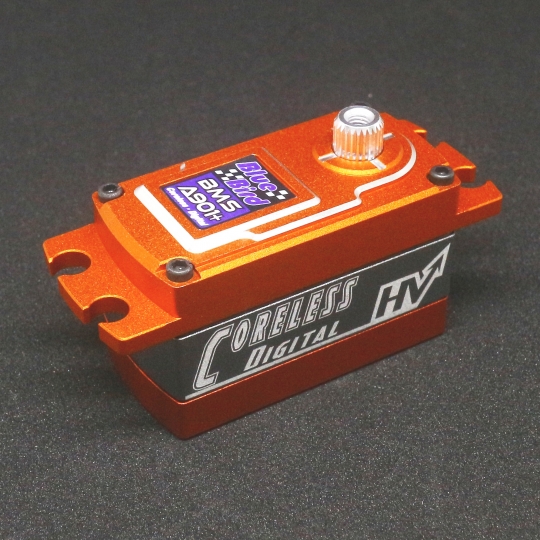

BMS-A901+ HV Low Profile, DIGITAL, HIGH SPEED, METAL GEAR ([email protected]/254.2oz [email protected])

Contact UsCustomer Reviews

BMS-A901+ HV Low Profile, DIGITAL, HIGH SPEED, METAL GEAR ([email protected]/254.2oz [email protected])

Market Price: $86.99
Our Price:

$78.99


You Save

9%

Quantity (15)

Availability 15 in stock
Weight 0.51 lbs
SKU BBR-BMS-A901+1
Manufacturer Blue Bird

BMS-A901+ HV Low Profile, DIGITAL, HIGH SPEED, METAL GEAR ([email protected]/254.2oz [email protected]

APPLICATION / SUITABLE
Perfect for 1/8-1/10 On-Road Car/Truck, Heli 550 Class CCPM cyclic use

SPECIFICATIONS

Torque At 6.0V 12.6 kg-cm / 175.0 oz-in
Torque At 7.4V 16.1 kg-cm / 223.6 oz-in
Torque At 8.4V 18.3 kg-cm / 254.2 oz-in
Speed At 6.0V 0.07 sec / 60°
Speed At 7.4V 0.06 sec / 60°
Speed At 8.4V 0.05 sec / 60°



POWER SUPPLY
Operating Voltage Range  4.5V ~ 8.5V ( 4~6 Cell Ni-MH or 2S  LiFe / LiPo)



MINI SERVO
Control System Digital Controller / 12-Bits (4096 Steps) Frequency:Up to 333Hz / Neutral:1500us or 1520us
Dead Band Width 0.001ms ( Default:1us)



MECHANICAL SPECIFICATIONS
Ball Bearing Dual
Gear All Metal Gears
Motor Racing Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



PHYSICAL SPECIFICATIONS
Dimension (mm) 40.8 x 21 x 25.4 mm / 1.60 x 0.83 x 1.0 in
Weight (gram)
56.5 ± 1 grams / 1.99 oz



: *
: *
: *


DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

  • Stock Number: DLEG0020
  • Displacement: 20 cc (1.22 cu in)
  • Bore: 1.3 in (32 mm)
  • Stroke: 1.0 in (25 mm)
  • Weight: 28.9 oz (820 g)
  • RPM Range: 1,750-9,000
  • Output: 2.5 hp @ 9,000 rpm
  • Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
  • Suggested Propellers: 16x8 17x6
  • Suggested Break-in Prop: 16x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 10.5:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-20

$249.99

SmartDesign V3 "Trouble Free" Tail Wheel Assembly





































































































Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc






Features:



  • Extremely Reliable
  • Mechanically Efficient Design
  • Simple and Solid Construction
  • Fewer parts needed for install
  • Ball Bearings



Pricing



  • 20-40cc: $27.00
  • 50-70cc: $34.99
  • 85-120cc: $44.99
  • 150cc-220cc: $54.00





Weight





  • 20-40cc: 1.2 oz
  • 50-70cc: 1.6 oz
  • 85-120cc: 2.2 oz
  • 150cc-220cc: 2.6 oz

Don't forget to check out our Aluminum Hub Wheels! They are excellent replacements for landing gears and tail wheels. Please see sizing chart below.

Tail Wheel Chart

GW-KAGC-112

$54.99

Miracle 3 Way T Joint with Fuel Filter

Miracle 3 Way T Joint with Fuel Filter

Miracle long fuel filling nozzle with fuel filter.
Available in Red, Gold, and Blue.
Please make a note of your color choice.

MRC-H-010

$5.00
