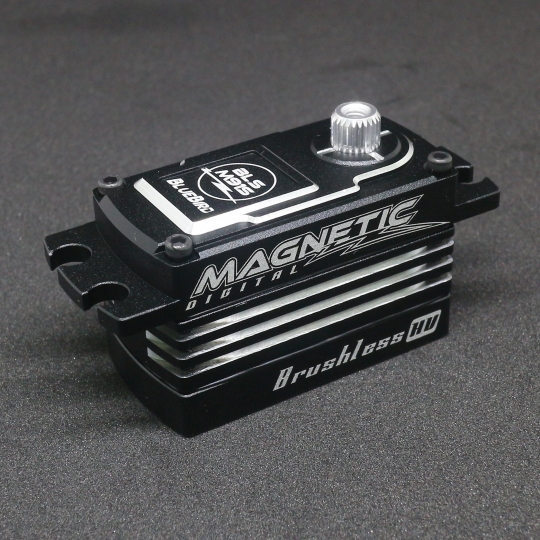

BLS-M91S, [email protected] kg / 308.4 oz [email protected], LOW PROFILE HV-DIGITAL, ULTRA HIGH SPEED, BRUSHLESS MAGNETIC SENSOR (Soft Start and Includes lockable Arm)

Contact UsCustomer Reviews

BLS-M91S, [email protected] kg / 308.4 oz [email protected], LOW PROFILE HV-DIGITAL, ULTRA HIGH SPEED, BRUSHLESS MAGNETIC SENSOR (Soft Start and Includes lockable Arm)

Our Price:

$109.99


Quantity (25)

Availability 25 in stock
Weight 0.51 lbs
SKU BBR-BLS-M91S
Manufacturer Blue Bird

BLS-M91S, [email protected] kg / 308.4 oz [email protected], LOW PROFILE HV-DIGITAL, SUPER HIGH SPEED, BRUSHLESS MAGNETIC SENSOR (Soft Start and Includes lockable Arm)

  • Soft Start Protection
  • Over Voltage Protection
  • Low Voltage Protection
  • Locked Rotor Protection
  • Temperature Protection
  • Loss of Control Protection

Applications

Excellent for 1/10th-1/12th 2WD, 4WD On-Road and 3D Airplane, Jet & Heli



Specifications

Torque At 6.0V   16.8 kg-cm / 233.4 oz-in
Torque At 7.4V   20.1 kg-cm / 279.2 oz-in
Torque At 8.4V   22.2 kg-cm / 308.4 oz-in
Speed At 6.0V   0.06 sec / 60°
Speed At 7.4V   0.05 sec / 60°
Speed At 8.4V   0.04 sec / 60°



Power Supply

Operating Voltage

Range

 4.5V ~ 8.7V DC ( 2S HV Li-Poly / 2S Li-Fe Compatible )





Control Specification

Control System Higher-order Algorithm 32-bit MCU ( Microcontroller Unit )
Frequency:Up to 333Hz / Neutral:1500us or 1520us
Frame Rate (Signal repeat rate) 3ms ( Maximum )
Dead Bend Width 0.001ms ( Default:1us )
Potentiometer (Variable Resistor) Magnetic Sensor ( Contactless )



Mechanical Specifications

Ball Bearing Dual Ball Bearings
Gear All Metal Alloy Gears
Outside Case Full One-Piece Aluminum CNC Casing
Motor High-Premium Brushless Motor
Horn / Gear Spline 25 Teeth



PHYSICAL SPECIFICATIONS
ension (mm) 40.8 x 21 x 25.4 mm / 1.60 x 0.83 x 1.0 in
Weight (gram) 49.5 ± 1 grams / 1.74 oz
Product Picture / Dimension Sketch



: *
: *
: *


Temperature Sensor Cable for Ultra Power Chargers

Description:
With this Imax B6AC multi charger, you can charge using a battery at the feild or your ac plug at home! You can charge up to 6 cell batteries. It's capable of charging most types of batteries, LIFE LIPO LION (A123) NICAD NIMH ETC

If you have a splitter you can charge 2/3 cell batteries at once (using an adapter)



Specifications:

  • Input Voltage: DC 11-18V / AC in: 100V-240V 50-60Hz
  • Circuit power: Max Charge: 50W / Max Discharge: 5W
  • Charge Current Range: 0.1-5.0A
  • Discharge current range: 0.1-1.0A
  • Ni-MH/NiCd cells: 1-15
  • Li-ion/Poly cells: 1-6
  • Pb battery voltage: 2V-20V
  • Weight: 531g
  • Dimensions: 134x142x36mm




Features:

  • iMax B6AC 1-6 Cells Digital Multifunctional Balance Charger
  • 100-240v AC input or 11-18V DC input
  • Microprocessor controlled
  • Delta-peak sensitivity
  • Individual cell balancing
  • Li-ion, LiPo and LiFe capable
  • Ni-Cd and NiMH capable
  • Large range of charge currents
  • Store function, allows safe storage current
  • Time limit function
  • Input voltage monitoring. (Protects car batteries at the field)
  • Data storage (Store up to 5 packs in memory)
  • Battery break in and cycling.



Package Contents:

  • iMax B6AC 1-6 Cells Digital Multifunctional Balance Charger
  • 4mm Banana Plug to Male Deans style connector
  • A female Deans style connector to a pair of Alligator clips
  • A female Deans style connector to a female Futaba style servo connector
  • A female Deans style connector female JST style connector
  • A female Deans style connector to Glow Plug type connector
  • Power Cord
  • User Manual



UPTUPTS02

$9.99

Scorpion A-3017 PNP Combo (6s / 30E-32E/ 962w) Electric Powerset Combo



Scorpion A-3017 PNP Combo (6s / 30E-32E/ 962w) Electric Powerset Combo

Overview

Thinking about converting your 30cc gas powered plane to electric power? Our 30cc size electric powerset combo takes the hassel out of figuring out exactly what you need because we've done it for you! By choosing one of our pre-grouped electric power combos, you are getting everything you need to convert your plane to electric power in one click of your mouse.

This combo includes the electric motor, the electric speed controller, a battery pack and a prop.

Features

  • Hacker A60-6XS V2 High-End Brushless Motor
  • Hacker X-110 Opto Sensorless Electric Speed Controller
  • Lightweight Aero-Model 5000 mAh 6 Cell 22.2V Battery Pack
  • APC 20*11 Electric Prop

Order today! Some items stocked by our supplier and may take 1-2 weeks for delivery.

For those lucky people who have more than one plane be sure to check out our 20cc and 50cc Electric Powersets also!

A-3017-PNP-6S

$259.99

Trigger 1/8 Monster Truck Tires Mounted on Chrome Black Wheels, 1/2" Offset, 17mm Hex (1 pair)

Trigger 1/8 Monster Truck Tires Mounted on Chrome Black Wheels, 1/2" Offset, 17mm Hex (1 pair)

ROPR4002-CB2

$25.99
