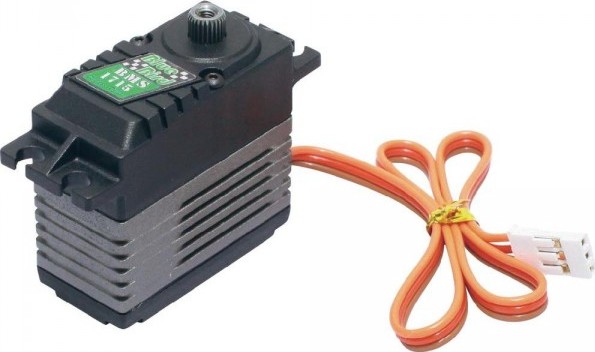

BMS-1715, HV-DIGITAL, CORELESS, TITANIUM GEARS 28.2 kg / 0.15sec / 7.4V

Contact UsCustomer Reviews

BMS-1715, HV-DIGITAL, CORELESS, TITANIUM GEARS 28.2 kg / 0.15sec / 7.4V

Our Price:

$38.99


Quantity (41)

Availability 41 in stock
Weight 0.51 lbs
SKU BBR-BMS-1715
Manufacturer Blue Bird

BMS-1715, HV-DIGITAL, CORELESS, TITANIUM GEARS 28.2 kg / 0.15sec / 7.4V

APPLICATION / SUITABLE
Car. Airplane. Heli (EP / Gas Engine)   1/10 Buggy / Truggy, Crawler



SPECIFICATIONS
Torque At 6.0V 23.1 kg-cm
Torque At 7.4V 28.2 kg-cm
Speed At 6.0V 0.18 sec / 60°
Speed At 7.4V 0.15 sec / 60°




POWER SUPPLY
Operating Voltage Range  4.8V ~ 8.5V ( 2 Cell LiPo / 6 cell Ni-MH Compatible)



STANDARD SERVO
Dead Band Width 2us


MECHANICAL SPECIFICATIONS
Ball Bearing Dual
Gear Titanium Alloy Gears
Motor Premium Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



PHYSICAL SPECIFICATIONS
Dimension (mm) 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram) 66 ± 1 grams / 2.33 oz



Product Picture / Dimension Sketch





: *
: *
: *
