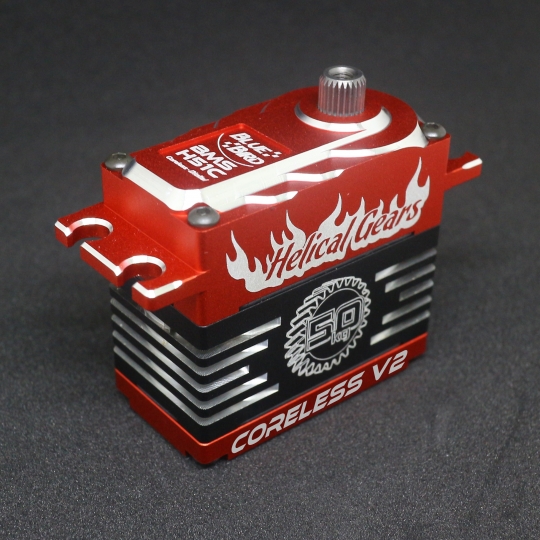

BMS-H51C V2 HELICAL GEAR, HV-DIGITAL, MEGA TORQUE, HIGH SPEED, CORELESS +Servo Arm (61.5kg/854.2oz, 0.09sec at 8.4V)

Ask a question about this product

Printable version

Options

Our Price:

$99.99

Quantity (6)

Details


Availability	6 in stock
Weight	0.51 lbs
SKU	BBR-BMS-H51C
Manufacturer	Blue Bird

BMS-H51C V2, High Voltage, Helical Gears, Coreless Motor, Digital

Powerful Coreless Motor, Smoother．Precision．More Reliable & More Efficiency

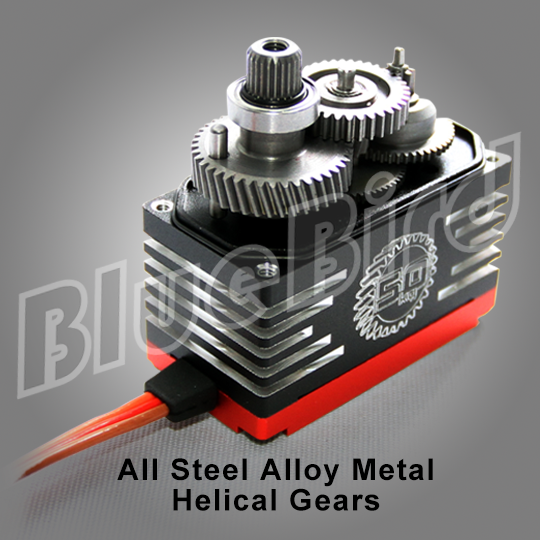

Helical Gears for supreme strength and precision.

Soft Start Protection
Over Voltage Protection
Low Voltage Protection
Locked Rotor Protection
Temperature Protection
Loss of Control Protection

APPLICATION / SUITABLE

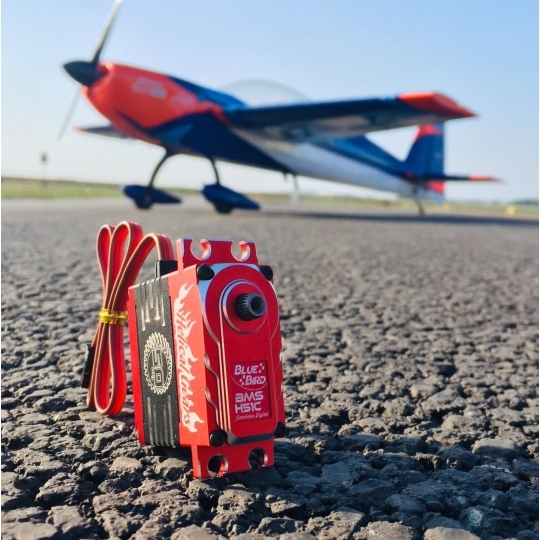

Ideal for 3D Airplane, Jet & 1/5, 1/6 and 1/8th Monster / Crawler / Truck and Off-road Car

ELECTRICAL SPECIFICATION (FUNCTION OF THE PERFORMANCE)

Torque At 6.0V	44.5 kg-cm / 618.1 oz-in
Torque At 7.4V	54.2 kg-cm / 752.8 oz-in
Torque At 8.4V	61.5 kg-cm / 854.2 oz-in
Speed At 6.0V	0.13 sec / 60°
Speed At 7.4V	0.11 sec / 60°
Speed At 8.4V	0.09 sec / 60°

PROTECTION MECHANISM

Soft Start Protection	Soft start to neutral position.
Over Voltage Protection	Over 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage Protection	Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Rotor Protection	Stall in 5 sec, output torque goes down.
Temperature Protection	Overheat 85 degree C, drive the protection mode and down 75 degree C return to normal mode.

POWER SUPPLY

Operating Voltage Range

4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)

CONTROL SPECIFICATION

Control System

Digital Controller / AD 12-Bits ( 4096 Steps )

Frequency：Up to 333Hz / Neutral：1500us or 1520us

Dead Band Width

0.001ms ( 1us )

MECHANICAL SPECIFICATIONS

Ball Bearing	Dual, Steel

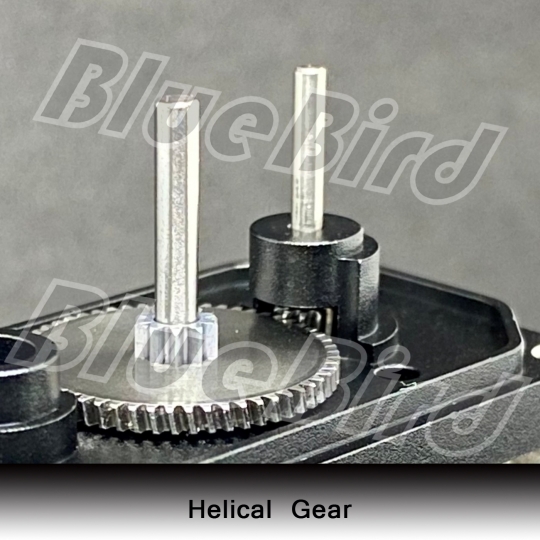

Gear	All Stainless Steel Helical Gears
Outside Case	Full One-Piece Aluminum CNC Casing
Motor	High Efficiency Japan Coreless Motor
Horn / Gear Spline	25 Teeth ( Same as F-Type )

PHYSICAL SPECIFICATIONS

Dimension (mm)	40.5 x 21 x 38.5 mm / 1.59 x 0.83 x 1.52 in
Weight (gram)	83.0 ± 1 grams / 2.93 oz
Product Picture / Dimension Sketch

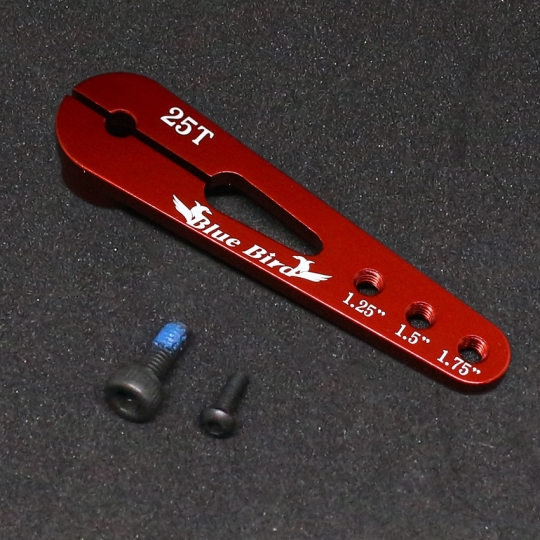

Includes Servo and Servo Arm

Servo Extensions 22AWG and 20AWG

High quality 22AWG wire, twisted silicone wire extensions. JR type connections, so they will plug into any receiver/switch, and most servos (Hitec/JR/PowerHD/etc etc....futaba you would have to trim the edge off).

Soft flexible silicone casing
Heavy duty 22awg
Universal - XQ Power/Hitec/Power HD/JR/more...
Reliable! We've NEVER gotten a pair returned
