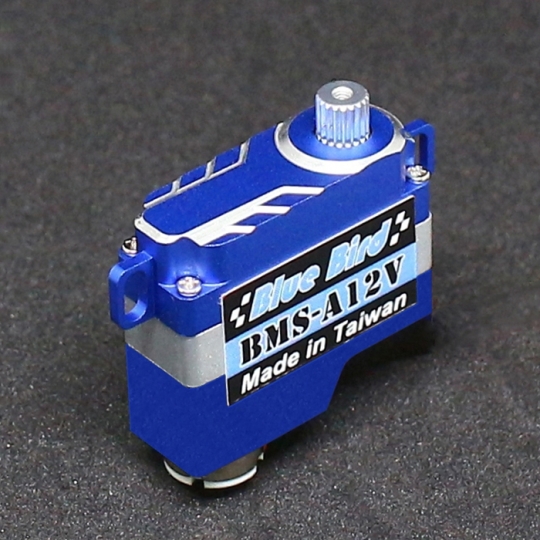

BMS-A12V MICRO, HORIZONTAL MOUNT, HV-DIGITAL, F3K 3D EP (4.6kg/63.9oz 0.09sec @ 8.4 V)

Blue Bird has entered the F3K/DLG servo market with these new micro digital servos. Purpose built for F3K.

The A12 digital series of servos feature metal gears, cnc aluminum cases, and a coreless motor. The A12 series are some of the lowest weight F3K servos available at just 8.4 grams depending on case configuration.

Capable of use with 1-2 cell LiPo batteries.

Application

3D Airplane / DLG & HLG, F3K / F3J / F3P / F3B Series, F5K / F5J / F5B / F5D Series of Glider.

Specifications

Torque At 3.7V	2.3 kg-cm / 31.9 oz-in
Torque At 6.0V	3.7 kg-cm / 51.4 oz-in
Torque At 7.4V	4.2 kg-cm / 58.3 oz-in
Torque At 8.4V	4.6 kg-cm / 63.9 oz-in
Speed At 3.7V	0.19 sec / 60°
Speed At 6.0V	0.12 sec / 60°
Speed At 7.4V	0.10 sec / 60°
Speed At 8.4V	0.09 sec / 60°

Power Supply

Operating Voltage Range	3.6V ~ 8.4V DC ( 1-2S HV Li-Poly / 2S Li-Fe Compatible )
Application / Suitable	3D EP Aircraft, DLG / HLG / F3K / F3P.

Control Specification

Control System	Digital Controller 12-Bits ( 4096 Steps ) Frequency：Up to 333Hz / Neutral：1500 or 1520us
Dead Band Width	0.002ms ( 2us )
Frame Rate (Signal repeat rate)	3ms ( Maximum )
Rotating Direction	Clockwise / Pulse Traveling 1500 ~ 1900u sec
Operating Travel	90° ( When 1100 ~ 1900 μ sec )

Mechanical Specifications

Ball Bearing	Dual
Gear	Stainless Steel Output gear with All Precision Metal Gears
Motor	High-Efficiency Coreless Motor
Horn / Gear Spline	19 Teeth ( φ3.65 m/m )
Connected Cable Length	150 mm ( 5.9 in )
Connected Housing	Universal Connector

Physical Specifications

Dimension (mm)	22 x 8 x 19.3 mm / 0.86 x 0.31 x 0.76 in
Weight (gram)	8.4 ± 0.2 grams / 0.29 oz
