BMS-A12S MICRO, NO TABS MOUNT, HV-DIGITAL, F3K 3D EP (4.6kg/63.9oz 0.09sec @ 8.4 V)

Contact UsCustomer Reviews

BMS-A12S MICRO, NO TABS MOUNT, HV-DIGITAL, F3K 3D EP (4.6kg/63.9oz 0.09sec @ 8.4 V)

Our Price:

$48.99


Quantity (14)

Availability 14 in stock
Weight 0.30 lbs
SKU BBR-BMS-A12S (no tab)
Manufacturer Blue Bird

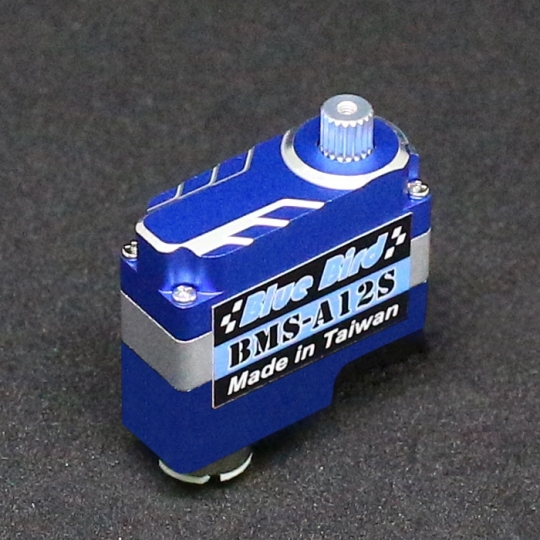

BMS-A12S MICRO, NO TABS MOUNT, HV-DIGITAL, F3K 3D EP (4.6kg/63.9oz 0.09sec @ 8.4 V)

Blue Bird has entered the F3K/DLG servo market with these new micro digital servos. Purpose built for F3K.

The A12 digital series of servos feature metal gears, cnc aluminum cases, and a coreless motor. The A12 series are some of the lowest weight F3K servos available at just 8.4 grams depending on case configuration.

Capable of use with 1-2 cell LiPo batteries.

Application
3D Airplane / DLG & HLG, F3K / F3J / F3P / F3B Series, F5K / F5J / F5B / F5D Series of Glider.



Specifications
Torque At 3.7V 2.3 kg-cm / 31.9 oz-in
Torque At 6.0V 3.7 kg-cm / 51.4 oz-in
Torque At 7.4V 4.2 kg-cm / 58.3 oz-in
Torque At 8.4V 4.6 kg-cm / 63.9 oz-in
Speed At 3.7V 0.19 sec / 60°
Speed At 6.0V 0.12 sec / 60°
Speed At 7.4V 0.10 sec / 60°
Speed At 8.4V 0.09 sec / 60°



Power Supply
Operating Voltage Range 3.6V ~ 8.4V DC ( 1-2S HV Li-Poly / 2S Li-Fe Compatible )
Application / Suitable 3D EP Aircraft, DLG / HLG / F3K / F3P.



Control Specification
Control System Digital Controller 12-Bits ( 4096 Steps )
Frequency:Up to 333Hz / Neutral:1500 or 1520us
Dead Band Width 0.002ms ( 2us )
Frame Rate (Signal repeat rate) 3ms ( Maximum )
Rotating Direction Clockwise / Pulse Traveling 1500 ~ 1900u sec
Operating Travel 90° ( When 1100 ~ 1900 μ sec )



Mechanical Specifications
Ball Bearing Dual
Gear Stainless Steel Output gear with All Precision Metal Gears
Motor High-Efficiency Coreless Motor
Horn / Gear Spline 19 Teeth ( φ3.65 m/m )
Connected Cable Length 150 mm ( 5.9 in )
Connected Housing Universal Connector



Physical Specifications
Dimension (mm) 22 x 8 x 19.3 mm / 0.86 x 0.31 x 0.76 in
Weight (gram) 8.4 ± 0.2 grams / 0.29 oz​




: *
: *
: *


Quick Connect Ball Joint

Quick connect ball joint for the throttle. Easy to connect throttle links!

Comes in Pairs!, smaller than our standard ball joints.

SD-519B50

$10.00

Savox SB2292SG - Monster Performance Brushless Servo, Black Edition

Savox SB2292SG, Monster Performance, Brushless Servo Black Edition 0.055sec / 624.9oz @ 8.4v



























































Description:

Ever go to a restaurant and look at the menu and think to yourself - "there's so many options that all just look so good!" - and have trouble deciding? Well here at Redwing RC our awesome servo collection is very similar! We have a great variety of spectacular servos to choose from so there is something for everyone! But let's introduce yet another great option to consider - the Savox SA-1230.

The Savox SA-1230 servos are a more powerful, MONSTER torque, coreless digital servo that can fit every control surface for giant scale aircrafts - while still being super lightweight, 20% lighter than its kind! Sounds great - right?! These servos combine leading edge technology with super high 12 bit resolution and super strong unique steel gears.

The coreless motor ensures high speed, incredible efficiency and LOW POWER CONSUPTION - so no "hungry hungry servo" sucking away your battery life - also allowing cooler and smoother operating temperatures. So chill out!

You can trust that these SA-1230 servos are a perfect match for your large scale model because they are especially designed to handle the stresses of large scale flying. Whether is be jet, 3D or scale - these servos take on the stress so you don't have to!

All in all - these servos are a great choice for your RC plane. Order yours now!



Specifications:

  • Torque:
    • 416.6 oz/in at 4.8V
    • 500 oz/in at 6V

  • Speed:
    • .20 sec at 4.8V
    • .16 sec at 6V

  • Voltage: 4.8V to6V
  • Weight: 2.78 oz (79 g)
  • Size: 1.6 x .79 x 1.77 in (40.3 x 20.2 x 45.0 mm)

  • Gear Type - Unique Steel
  • Case - Full Aluminum
  • Bearing - dual ball bearings
  • Frequency - 250-333hz
  • Output Shaft - 25 Tooth Spline







GET YOURS TODAY!







SAVSB2292SG

$145.99

Savox SW-1210SG Waterproof, HV, Brushless, Digital Servo 0.13 sec / 444.4oz @ 7.4V

Savox SW-1210SG Waterproof, HV, Brushless, Digital Servo 0.13 sec / 444.4oz @ 7.4V















Savox SW-2210SG Waterproof, HV, Brushless, Digital Servo 0.11 sec / 500oz @ 7.4V

Ever go to a restaurant and look at the menu and think to yourself - "there's so many options that all just look so good!" - and have trouble deciding? Well here at Redwing RC our awesome servo collection is very similar! We have a great variety of spectacular servos to choose from so there is something for everyone! But let's introduce yet another great option to consider - the Savox SA-1231.

The Savox SA-1231 servos are a more powerful, high torque, coreless digital servo that can fit every control surface for giant scale aircrafts - while still being super lightweight, 20% lighter than its kind! Sounds great - right?! These servos combine leading edge technology with super high 12 bit resolution and super strong unique steel gears.

The coreless motor ensures high speed, incredible efficiency and LOW POWER CONSUPTION - so no "hungry hungry servo" sucking away your battery life - also allowing cooler and smoother operating temperatures. So chill out!

You can trust that these SA-1231 servos are a perfect match for your large scale model because they are especially designed to handle the stresses of large scale flying. Whether is be jet, 3D or scale - these servos take on the stress so you don't have to!

All in all - these servos are a great choice for your RC plane. Order yours now!



Specifications:

  • Torque:
    • 389 oz/in at 4.8V
    • 444.4 oz/in at 6V

  • Speed:
    • .18 sec at 4.8V
    • .14 sec at 6V

  • Voltage: 4.8V to 6V
  • Weight: 2.78 oz (79g)
  • Size: 1.58 x .79 x 1.77 in (40.3 x 20.2 x 45 mm)

  • Gear Type - Unique Steel
  • Case - Full Aluminum
  • Bearing - dual ball bearings
  • Frequency - 250-333hz
  • Output Shaft - 25 Tooth Spline







GET YOURS TODAY!







SAV-SW1210SG

$99.99
