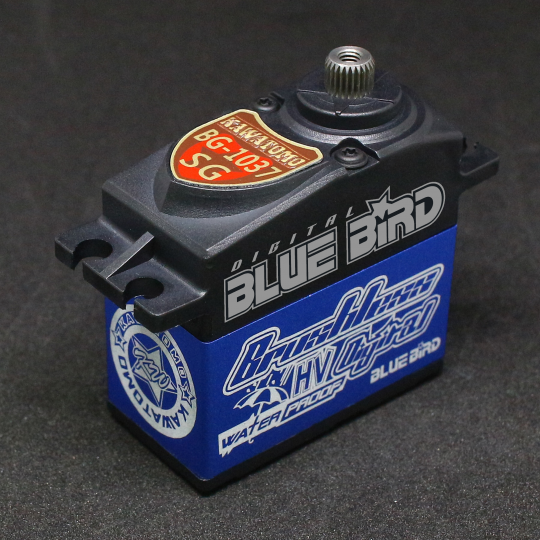

BG-1037SG, WATER PROOF OFF-ROAD MONSTER TRUCK ROCK CRAWLER HV-DIGITAL, MEGA TORQUE, HIGH SPEED, BRUSHLESS (42.3kg/587.5oz, 0.10sec at 8.4V)

Contact UsCustomer Reviews

BG-1037SG, WATER PROOF OFF-ROAD MONSTER TRUCK ROCK CRAWLER HV-DIGITAL, MEGA TORQUE, HIGH SPEED, BRUSHLESS (42.3kg/587.5oz, 0.10sec at 8.4V)

Our Price:

$54.99


Quantity (30)

Availability 30 in stock
Weight 0.51 lbs
SKU BBR-BG-1037SG
Manufacturer Blue Bird

BG-1037SG, WATER PROOF OFF-ROAD MONSTER TRUCK ROCK CRAWLER HV-DIGITAL, MEGA TORQUE, HIGH SPEED, BRUSHLESS (42.3kg/587.5oz, 0.10sec at 8.4V)

Water Proof IP rated: IP=Ingress Protection Rating
6=Dust Tight/7=Immersion up to 1 Meter depth of 30 minutes

Application
1/8, Buggy / Truggy, Crawler, Monster. Airplane. Sail Boats (EP / Gas Engine)



Specifications
Torque At 6.0V 30.5 kg-cm / 423.6 oz-in
Torque At 7.4V 37.8 kg-cm / 525.1 oz-in
Torque At 8.4V 42.3 kg-cm / 587.5 oz-in
Speed At 6.0V 0.15 sec / 60°
Speed At 7.4V 0.12 sec / 60°
Speed At 8.4V 0.10 sec / 60°



Power Supply
Operating Voltage Range 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly & 2S Li-Fe )



Control Specification
Control System Digital Controller / AD 12-Bits Resolution ( 4096 Steps )
Dead Band Width 0.001ms ( 1us )



Mechanical Specifications
Ball Bearing Dual
Gear Durable Steel Alloy Metal Gears
Motor Premium Brushless Motor
Horn / Gear Spline 25 Teeth



Physical Specifications
Dimension (mm) 40.6 x 20.6 x 39.7 mm / 1.6 x 0.81 x 1.56 in
Weight (gram) 77 ± 1 grams / 2.71 oz
Product Picture / Dimension Sketch
: *
: *
: *
