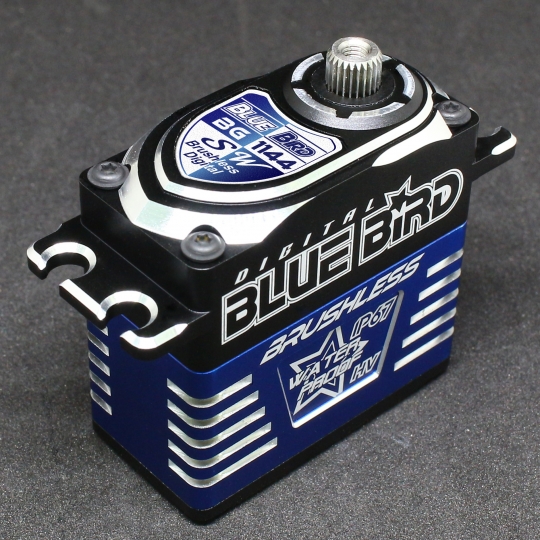

BG-1144SW (SAIL WINCH), WATER PROOF, DIGITAL, HV BRUSHLESS (48.5kg/673.7oz 0.10sec @ 8.4V)

Contact UsCustomer Reviews
  0
  5. BG-1144SW (SAIL WINCH), WATER PROOF, DIGITAL, HV BRUSHLESS (48.5kg/673.7oz 0.10sec @ 8.4V)
Tariff Information update
more offers

BG-1144SW (SAIL WINCH), WATER PROOF, DIGITAL, HV BRUSHLESS (48.5kg/673.7oz 0.10sec @ 8.4V)

Ask a question about this product
Printable version

Share

Options

Our Price:

$125.99
Quantity (9)

Details

Availability 9 in stock
Weight 0.51 lbs
SKU BBR-BG-1144SW
Manufacturer Blue Bird

BG-1144SW (SAIL WINCH), WATER PROOF, DIGITAL, HV BRUSHLESS (48.5kg/673.7oz 0.10sec @ 8.4V)

Default rotation : 6T (2160°)
Water Proof IP rated: IP=Ingress Protection Rating
6=Dust Tight / 7=Immersion up to 1 Meter depth of 30 minutes

Application
Sail Winch for Larger Boat, Yacht.



Specifications
Torque At 6.0V 36.4 kg-cm / 505.6 oz-in
Torque At 7.4V 44.2 kg-cm / 613.9 oz-in
Torque At 8.4V 48.5 kg-cm / 673.7 oz-in
Speed At 6.0V 0.13 sec / 60°
Speed At 7.4V 0.11 sec / 60°
Speed At 8.4V 0.10 sec / 60°



Power Supply
Operating Voltage Range 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly & 2S Li-Fe )



Control Specification
Control System Digital Controller
Rotating Direction Clockwise / When Pulse Traveling 900u ~ 2100u second
Operating Travel Total Maximum around 2160° ( 6 Turns / Rotations )



Mechanical Specifications
Ball Bearing Dual ball bearings with 1 piece of oil seal
Gear Durable Steel Alloy Metal Gears
Motor High-Premium Brushless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



Physical Specifications
Dimension (mm) 40.6 x 20.6 x 41.2 mm / 1.60 x 0.81 x 1.62 in
Weight (gram) 83.0 ± 1 grams / 2.93 oz





: *
: *
: *

XQ-4220 (HV up to 11.1V)

XQ-4220 (HV up to 11.1V)

Description:
XQ-4220 Metal gear Digital Coreless servo

Specifications:

  • Torque:
    • 243 oz/in at 9.6V (17.5kg/cm)
    • 286 oz/in at 11.1V (20.6kg/cm)

  • Speed:
    • .13 sec at 9.6V
    • .11 sec at 11.1V

  • Voltage: 9.6 - 11.1V
  • Weight: 1.46oz (56g)
  • Size: 40x20x39mm

  • Gear Style: Futaba Arms
  • Gear Type: Metal - Titanium





Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!
