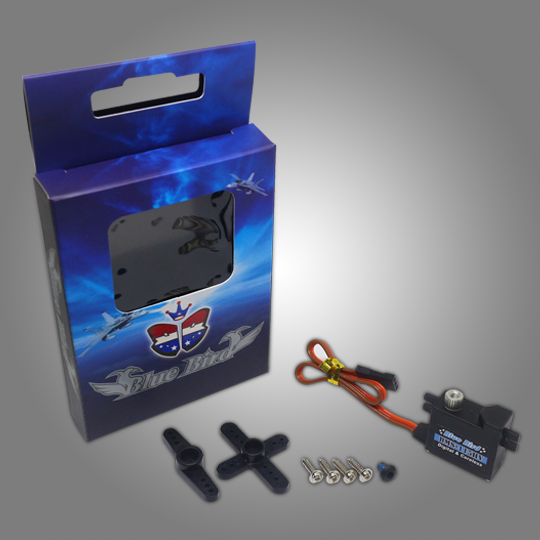

BMS-125WV+ MICRO WIDE VOLTAGE-DIGITAL, HIGH TORQUE, CORELESS SERVO (7.1kg/98.6oz 0.09 sec @8.4V)

Ask a question about this product

Printable version

Options

Our Price:

$27.99

Quantity (96)

Details


Availability	96 in stock
Weight	0.30 lbs
SKU	BBR-BMS-125WV+
Manufacturer	Blue Bird

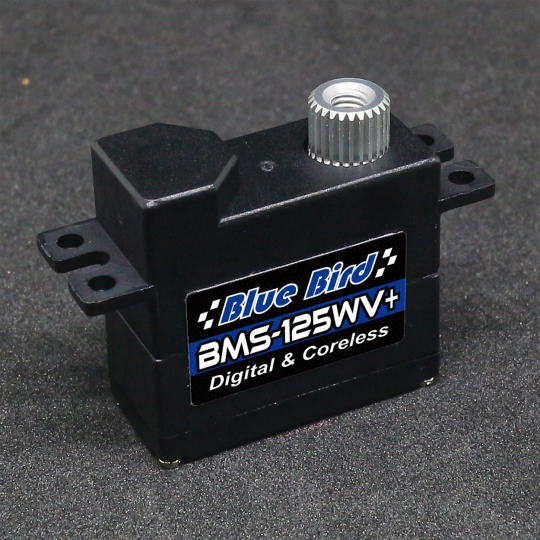

BMS-125WV+ MICRO WIDE VOLTAGE-DIGITAL, HIGH TORQUE, CORELESS SERVO (Upgraded)

The BMS-125WV+ is the upgraded replacement for the BMS-125WV. The updated + version now has dual ball bearings and improved performance. Updated internals for improved reliability and durability. More torque without sacrificing speed.

Wide Voltage, compact, and lightweight. The Blue Bird BMS-125HV is a perfect choice for F3J and F5J models as well as many other applications. Capable of operating on 1S.

DATA SHEET

APPLICATION / SUITABLE

3D EP Airplane / DLG / HLG / F3K / F3P

SPECIFICATIONS

Torque At 3.7V	3.6 kg-cm / 50.0 oz-in
Torque At 6.0V	5.5 kg-cm / 76.4 oz-in
Torque At 7.4V	6.6 kg-cm / 91.7 oz-in
Torque At 8.4V	7.1 kg-cm / 98.6 oz-in
Speed At 3.7V	0.20 sec / 60°
Speed At 6.0V	0.13 sec / 60°
Speed At 7.4V	0.10 sec / 60°
Speed At 8.4V	0.09 sec / 60°

POWER SUPPLY

Operating Voltage Range

3.6V ~ 8.4V DC ( 1-2S HV Li-Poly / 2S Li-Fe Compatible )

MICRO SERVO

Control System	Digital Controller 12-Bits ( 4096 Steps ) / Frequency：250Hz / Neutral：1520us
Dead Band Width	0.002ms ( 2us )

Frame Rate (Signal repeat rate)

3ms ( Maximum )

Rotating Direction

Clockwise / Pulse Traveling 1500 ~ 2100u sec

Operating Travel

90° ( When 1100 ~ 1900 μ sec )

MECHANICAL SPECIFICATIONS

Ball Bearing	Dual
Gear	All Metal Gears
Motor	Coreless Motor
Horn / Gear Spline	25 Teeth ( Same as F-Type )

Cable Length

150 mm ( 5.9 in )

Connector

Universal Connector ( J-Type )

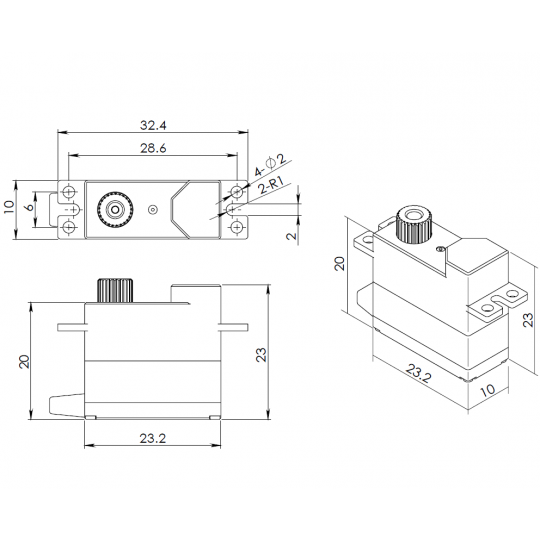

PHYSICAL SPECIFICATIONS

Dimension (mm)	23.2 x 10 x 23 mm / 0.91 x 0.39 x 0.90 in
Weight (gram)	11.0 ± 0.5 grams / 0.38 oz
