BLS-73AWB Water-Proof, HV-ULTRA MEGA TORQUE, HIGH SPEED, BRUSHLESS (73.9kg/1026.5oz 0.08sec @8.4V) (Specifically for Maxx Traxxas)

Contact UsCustomer Reviews
  0
  5. BLS-73AWB Water-Proof, HV-ULTRA MEGA TORQUE, HIGH SPEED, BRUSHLESS (73.9kg/1026.5oz 0.08sec @8.4V) (Specifically for Maxx Traxxas)
Tariff Information update
more offers

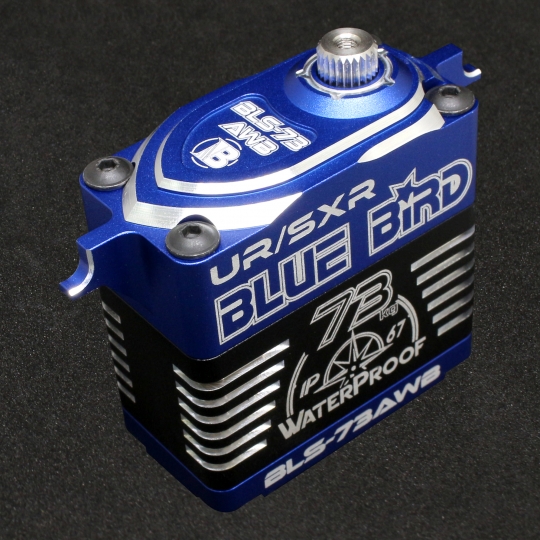

BLS-73AWB Water-Proof, HV-ULTRA MEGA TORQUE, HIGH SPEED, BRUSHLESS (73.9kg/1026.5oz 0.08sec @8.4V) (Specifically for Maxx Traxxas)

Ask a question about this product
Printable version

Share

Options

Market Price: $168.99
Our Price:

$139.99
You Save

17%
Quantity (9)

Details

Availability 9 in stock
Weight 0.51 lbs
SKU BBR-BLS-73AWB
Manufacturer Blue Bird

BLS-73AWB Water-Proof, HV-ULTRA MEGA TORQUE, HIGH SPEED, BRUSHLESS (73.9kg/1026.5oz 0.08sec @8.4V) (Specifically for Maxx Traxxas)--One of Blue Bird's most powerful servo, over 1000oz of torque!!

Smoother．Precision．More Reliable & More Efficiency

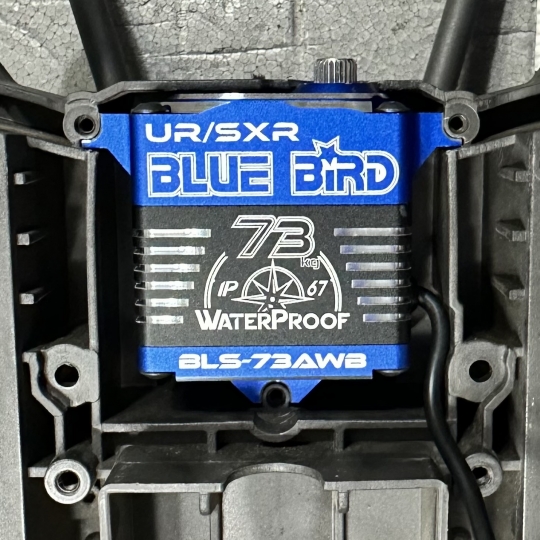

*Only suitable for 1/5 X-Maxx & 1/6 XRT & 1/10 Maxx & MAXX Slash of Traxxas.

★Soft Start Protection
★Over Voltage Protection
★Low Voltage Protection
★Locked Rotor Protection
★Temperature Protection

APPLICATION / SUITABLE

*Only suitable for 1/5 X-Maxx & 1/6 XRT & 1/10 Maxx & MAXX Slash of Traxxas.

 ELECTRICAL SPECIFICATION (FUNCTION OF THE PERFORMANCE)

Torque At 6.0V 55.7 kg-cm / 773.7 oz-in
Torque At 7.4V 67.2 kg-cm / 933.4 oz-in
Torque At 8.4V 73.9 kg-cm / 1026.5 oz-in
Speed At 6.0V 0.12 sec / 60°
Speed At 7.4V 0.10 sec / 60°
Speed At 8.4V 0.08 sec / 60°

 PROTECTION MECHANISM

Soft Start Protection Soft start to a neutral position.
Over Voltage Protection Over 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage Protection Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Rotor Protection Stall in 5 sec, output torque goes down.
Temperature Protection Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode.
Lose Control Protection When losing the transmitter signal, that servo will be back to the neutral position immediately and lock.

 POWER SUPPLY

Operating Voltage Range 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)

 CONTROL SPECIFICATION

Control System Higher-order Algorithm of【STMicroelectronics】32-bit MCU ( Microcontroller Unit )
Frequency：Up to 400Hz & 1500us or 1520us
Frame Rate (Signal repeat rate) Under 1ms【Compatible with Futaba_UR/SR & Sanwa_SXR & KO_HCS Mode】
Dead Band Width 0.001ms ( Default：1us)

 MECHANICAL SPECIFICATIONS

Ball Bearing Dual, Stronger Ball Bearings with 1 piece of oil seal.【NMB from Japan】
Gear Stainless output shaft with Steel Alloy Metal Gears
Outside Case Full One-Piece Aluminum CNC Casing
Motor High Premium Brushless Motor
Horn / Gear Spline 25 Teeth ( Same as Traxxas-Type )

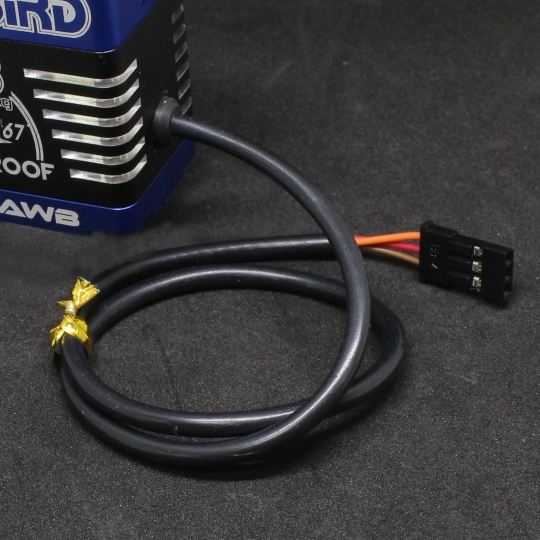

Connected Cable Length 300 mm (11.81 in) [ Black Cladding Cable Edition ]

 PHYSICAL SPECIFICATIONS

Dimension (mm) 48.5 x 25 x 49.8 mm / 1.90 x 0.98 x 1.96 in
Weight (gram) 121.8 ± 1 grams / 4.29 oz










: *
: *
: *

HiTec 425BB

HiTec 425BB

Description:
This is the HS-425BB Pro Dual Ball Bearing Servo from Hitec. The HS-425BB is one of the most durable and reliable servos Hitec has ever offered. With its dual ball bearings, high impact resin gear train and high performance circuitry, the HS-425BB features excellent centering and resolution.



Specifications:

  • Torque:
    • 46 oz/in at 4.8V (3.3kg/cm)
    • 57 oz/in at 6V (4.1 kg/cm)

  • Speed:
    • .21 sec at 4.8V
    • .16 sec at 6V

  • Voltage: 4.8V to 6V
  • Weight: 1.6 oz ( 45.5g)
  • Size: 1.57 x .78 x 1.45 in (40 x 20 x 37 mm)

HS-425

$19.99

RedwingRC Feather Flag- 10 foot

RedwingRC Feather Flag- 10 foot





Description:

10 Foot RedwingRC Feather Flag

These Feather Flags are really great. Super easy to set up and are rally compact after take-down. Do you want to promote RedwingRC at your event? The RedwingRC Feather flag is a great option at a reasonable price!

Show your Redwing Spirit!

(More Images Coming Soon)

Specs:

  • 10 feet tall when installed in the ground
  • Flag section is 8.5 feet tall
  • Moves slowly in the breeze
  • Metal anchoring attachment extends 18"into the ground

Includes:

  • Flag
  • Flexible Spine
  • Anchoring attachment



RW-FF

$25.00

Lemon RX SATELLITE WIRE 20CM

Lemon RX SATELLITE WIRE 20CM



Lemon RX SATELLITE WIRE 20CM

Lemon Rx DSMX Compatible 6-Channel Receiver



Type: DSMX Compatible Full Range Receiver
Number of Channel: 6
Modulation: DSMX Compatible (Also DSM2 backward Compatible)
Band: 2.4 GHz
Dimension: 25(L) x 18(W) x 11(H)  mm
Weight: 4.5 grams
Voltage Range: 3.45 - 8.4 V



Highlight
- FailSafe for all channels via press of a button
- DSMX Satellite port



Understanding the receiver



Setup Instruction

Binding

  1. Plug bind plug to the receiver.
  2. Provide power to the unit. LED flashes quickly.
  3. Enable bind mode in transmitter and ensure distance separation of 2 meters from receiver. Solid LED light means binding is completed.
  4. 4) Remove bind plug.

Failsafe Enable (Video showing 10-Channel receiver)

  1. Plug bind plug to the receiver.
  2. Provide power to the unit.
  3. Plug the side pushbutton for memorize current position in Failsafe mode.
  4. Green light will turn on at the bottom of the receiver to indicate Failsafe is successfully enabled.
  5. Remove bind plug

Failsafe Disable

  1. Rebind the receiver without pressing the side pushbutton will disable the Failsafe mode.
  2. Green light off indicates Failsafe disabled.




LM-P-00047

$2.99
