BLS-125AWB Water Proof, ULTRA MEGA TORQUE, Brushless+Servo Arm (New generation Large Scale Servo with Single wire to connect directly to RX) 126.5kg/1757.1oz .15sec @8.4V

Ask a question about this product

Printable version

Options

Our Price:

$199.99

Quantity (10)

Details


Availability	10 in stock
Weight	0.80 lbs
SKU	BBR-BLS-125AWB-single wire
Manufacturer	Blue Bird

Special Order! This is a special order item and is subject to manufacturer availability. Please allow a minimum of up to 2 weeks for processing before items are shipped. No cancelations or returns are permitted.

BLS-125AWB Water Proof, ULTRA MEGA TORQUE, Brushless+Servo Arm (New generation Large Scale Servo with Single wire to connect directly to RX) 126.5kg/1757.1oz .15sec @8.4V--Blue Bird's most powerful 1/4-1/5 scale Monster Truck/Crawler/Large Boat servo at over 1750oz!!

Water Proof IP67 (Ingress Protection Rating, 6=Dust Tight, 7=Immersion up to 1Mfor 30 min)

Application / Suitable

1/4、1/5th Scale Vehicles, such as Buggy ( Off-Road ), GT ( On-road ), Monster Truck, Rock Crawler & Large Boats, etc.

Specifications

Stall Torque At 6.6V	99.5 kg-cm / 1382.1 oz-in
Stall Torque At 7.4V	111.4 kg-cm / 1547.3 oz-in
Stall Torque At 8.4V	126.5 kg-cm / 1757.1 oz-in
No-load Speed At 6.0V	0.19 sec / 60°
No-load Speed At 7.4V	0.17 sec / 60°
No-load Speed At 8.4V	0.15 sec / 60°
Stall Current At 6.0V	11.7 Amp
Stall Current At 7.4V	13.5 Amp
Stall Current At 8.4V	15.4 Amp

Protection Mechanism

Soft Start Protection	Soft start back to a neutral position.
Over Voltage Protection	Over 9.0V drive the protection mode, and 8.7V return to normal mode.
Low Voltage Protection	Lower than 5.8V, drive the protection mode, and 6.0V return to normal mode.
Locked Rotor Protection	Stall in 3 sec, output torque goes down.
Temperature Protection	Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode.
Lose Control Protection	When losing the transmitter signal, that servo will immediately be back to the neutral position and locked.

Power Supply

Operating Voltage Range	6.0V ~ 8.7V ( 2S Li-Fe / 2S Li-Poly HV )
Operating Temperature Range	-20°C ~ +60°C ( -4°F ~ +140°F )

Control Specification

Control System	Higher-order Algorithm of【STMicroelectronics】32-bit MCU AD 12-bit Resolution ( 4096 Steps ) Frequency：Up to 400Hz & 1500us or 1520us
Frame Rate (Signal repeat rate)	Under 1ms【Auto-adaptive with Futaba_UR/SR & Sanwa_SXR & KO_HCS Mode】
Dead Band Width	0.002ms ( Default：2us)

Mechanical Specifications

Ball Bearing	Dual, Stronger Ball Bearings with 1 piece of oil seal.【NMB from Japan】
Gear	Stainless Steel Output Gear With All Steel Gears
Motor	High-Efficiency Brushless Motor
Outside Case	Full Aluminum Alloy Case
Horn / Gear Spline	15 Teeth ( Universal Type )
Connected Cable Length	300 mm (11.81 in) TYU : Black w/ Gray
Connected Housing	Universal Connector [ Black ]
Ingress Protection Rating	IP67 means: 6=Dust Tight / 7=Immersion up to 1 Meter depth of 30 minutes

Physical Specifications

Dimension (mm)	65.8 x 30 x 56.5 mm / 2.59 x 1.18 x 2.22 in
Weight (gram)	229.0 ± 1 grams / 8.08 oz W/O Cable
Product Picture / Dimension Sketch

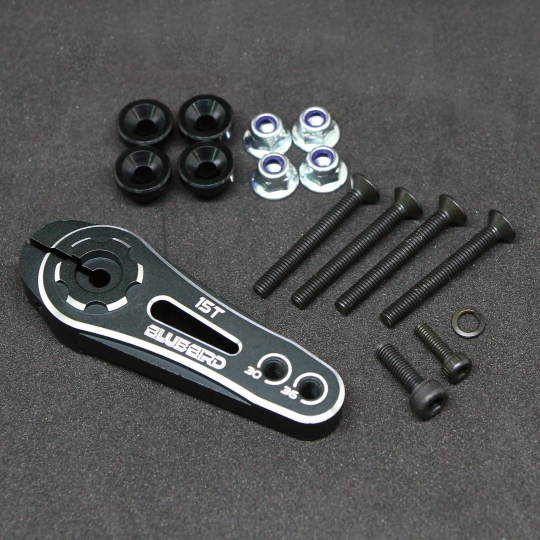

Includes Servo and Aluminum Servo Arm

XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

Torque:
- 166.7 oz/in at 4.8V (12.0 kg/cm)
- 197.2 oz/in at 6V (12.8 kg/cm)
Speed:
- .13 sec at 4.8V
- .11 sec at 6V
Voltage: 4.8V - 6V
Weight: 2 oz (59g)
Size: 40x20x39mm
Gear Style: Futaba Arms
Modulation: Coreless Digital
Gear Type: Titanium
Weight: 2oz (59g)
Size: 40x20x39mm

Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

Titanium Gears
Waterproof
Coreless
Digital
High Torque/High Speed
Smooth resolution

Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!

X-4013

$42.50 42.50

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.

Download DLE 20 Manual

Specifications:

Stock Number: DLEG0020
Displacement: 20 cc (1.22 cu in)
Bore: 1.3 in (32 mm)
Stroke: 1.0 in (25 mm)
Weight: 28.9 oz (820 g)
RPM Range: 1,750-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
Suggested Propellers: 16x8 17x6
Suggested Break-in Prop: 16x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 10.5:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)
