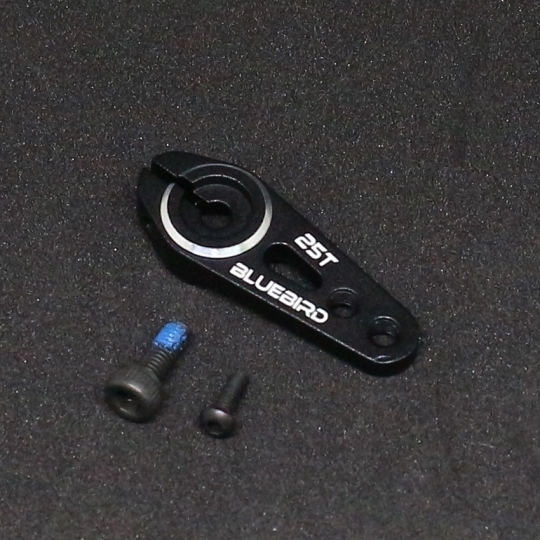

BMS-M90T, [email protected] kg / 395.9 oz [email protected], LOW PROFILE HV-DIGITAL, SUPER HIGH TORQUE, HIGH SPEED, CORELESS MAGNETIC SENSOR (Soft Start and Includes lockable Arm)

Contact UsCustomer Reviews
  0
  5. BMS-M90T, [email protected] kg / 395.9 oz [email protected], LOW PROFILE HV-DIGITAL, SUPER HIGH TORQUE, HIGH SPEED, CORELESS MAGNETIC SENSOR (Soft Start and Includes lockable Arm)
Tariff Information update
more offers

BMS-M90T, [email protected] kg / 395.9 oz [email protected], LOW PROFILE HV-DIGITAL, SUPER HIGH TORQUE, HIGH SPEED, CORELESS MAGNETIC SENSOR (Soft Start and Includes lockable Arm)

Ask a question about this product
Printable version

Share

Options

Our Price:

$89.99
Quantity (4)

Details

Availability 4 in stock
Weight 0.51 lbs
SKU BBR-BMS-M90T
Manufacturer Blue Bird

BMS-M90T, [email protected] kg / 395.9 oz [email protected], LOW PROFILE HV-DIGITAL, SUPER HIGH TORQUE, HIGH SPEED, CORELESS MAGNETIC SENSOR (Soft Start and Includes lockable Arm)

  • Soft Start Protection
  • Over Voltage Protection
  • Low Voltage Protection
  • Locked Rotor Protection
  • Temperature Protection
  • Loss of Control Protection

Applications

Excellent for 1/8th-1/10th-1/12th 2WD, 4WD On-Road and 3D Airplane, Jet & Heli



Specifications

Torque At 6.0V 20.5 kg-cm / 284.7 oz-in
Torque At 7.4V 25.2 kg-cm / 350.0 oz-in
Torque At 8.4V 28.5 kg-cm / 395.9 oz-in
Speed At 6.0V 0.11 sec / 60°
Speed At 7.4V 0.09 sec / 60°
Speed At 8.4V 0.08 sec / 60°



Protection Mechanism
Soft Start Protection Soft start back to neutral position.
Over Voltage Protection Over 9.0V drive the protection mode, and 8.4V return to normal mode.
Low Voltage Protection Lower than 4.0V, drive the protection mode, and 4.5V return to normal mode.
Locked Rotor Protection Stall in 5 sec, output torque goes down.
Temperature Protection Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode.
Lose Control Protection When losing the transmitter signal, that servo will immediately be back to the neutral position and locked.



Power Supply
Operating Voltage Range  4.5V ~ 8.7V DC ( 2S HV Li-Poly / 2S Li-Fe Compatible )



Control Specification
Control System Higher-order Algorithm of【STMicroelectronics】32-bit MCU ( Microcontroller Unit )
Frequency：Up to 400Hz / Neutral：1500us or 1520us
Frame Rate (Signal repeat rate) Under 3ms【Compatible with SSR Mode of Sanwa】
Dead Bend Width 0.001ms ( Default：1us )
Potentiometer (Variable Resistor) Magnetic Hall-effect Sensor【Non-Contact】instead of traditional VR.



Mechanical Specifications
Ball Bearing Dual, Stronger Ball Bearings.【NMB from Japan】
Gear All Metal Alloy Gears
Outside Case Full One-Piece Aluminum CNC Casing
Motor High-Premium Coreless Motor
Horn / Gear Spline 25 Teeth



Physical Specifications
Dimension (mm) 40.8 x 21 x 25.4 mm / 1.60 x 0.83 x 1.0 in
Weight (gram) 49.5 ± 1 grams / 1.74 oz
Product Picture / Dimension Sketch ​
  •







: *
: *
: *

XQ 4013 digital 6v

XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

  • Torque:
    • 166.7 oz/in at 4.8V (12.0 kg/cm)
    • 197.2 oz/in at 6V (12.8 kg/cm)

  • Speed:
    • .13 sec at 4.8V
    • .11 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2 oz (59g)
  • Size: 40x20x39mm

  • Gear Style: Futaba Arms
  • Modulation: Coreless Digital
  • Gear Type: Titanium
  • Weight: 2oz (59g)
  • Size: 40x20x39mm




Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

  • Titanium Gears
  • Waterproof
  • Coreless
  • Digital
  • High Torque/High Speed
  • Smooth resolution


Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!



X-4013

$42.50

DLE 35RA Engine

DLE 35RA Engine

dle35RA

DLE-35 RA

$399.00

SmartDesign V3 "Trouble Free" Tail Wheel Assembly

SmartDesign V3 "Trouble Free" Tail Wheel Assembly





































































































Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc






Features:



  • Extremely Reliable
  • Mechanically Efficient Design
  • Simple and Solid Construction
  • Fewer parts needed for install
  • Ball Bearings



Pricing



  • 20-40cc: $27.00
  • 50-70cc: $34.99
  • 85-120cc: $44.99
  • 150cc-220cc: $54.00





Weight





  • 20-40cc: 1.2 oz
  • 50-70cc: 1.6 oz
  • 85-120cc: 2.2 oz
  • 150cc-220cc: 2.6 oz

Don't forget to check out our Aluminum Hub Wheels! They are excellent replacements for landing gears and tail wheels. Please see sizing chart below.

Tail Wheel Chart

GW-KAGC-112

$54.99
